Lighting Switch Inspection

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.
1. When lighting switch is AUTO: AUTO LIGHT SW ON position

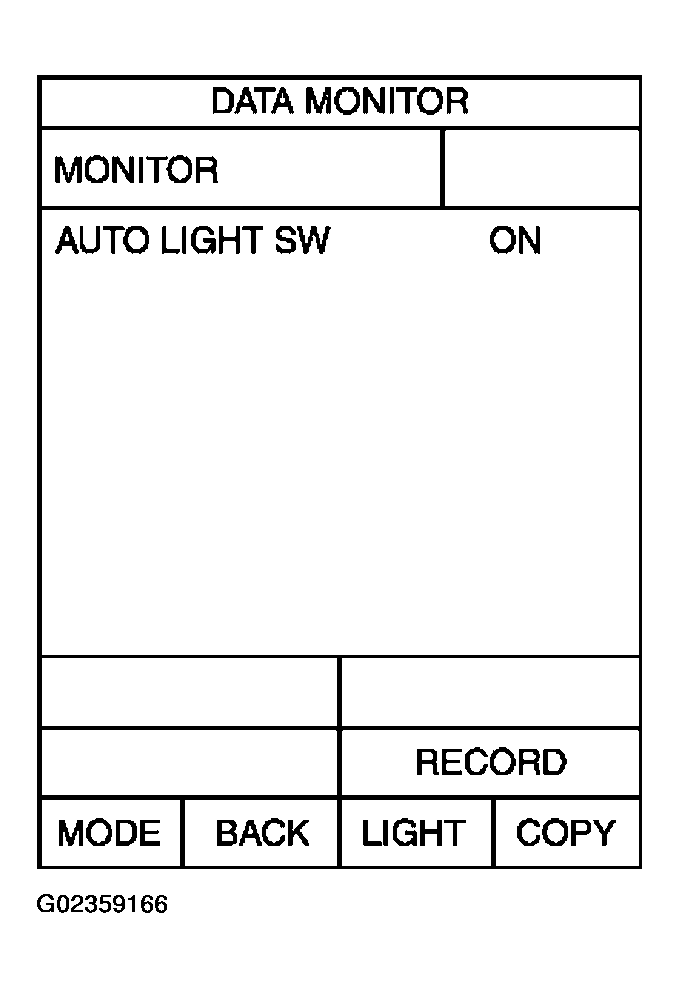

Fig 1: CONSULT-II Diagnosis Function Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG
1. OK: INSPECTION END
2. NG: Check combination switch (lighting switch). Refer to "COMBINATION SWITCH INSPECTION ".
