Bulb Replacement

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Remove left side fender protector (front). Refer to "REMOVAL AND INSTALLATION ", "REMOVAL AND INSTALLATION " in Exterior & Interior article.
Disconnect fog lamp connector.
Turn bulb socket counterclockwise and unlock it.
1. Fog lamp: 12 V - 51 W (HB4 halogen)
CAUTION:
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it. Never touch bulb by hand while it is lit or right after being turned off. Burning may result.

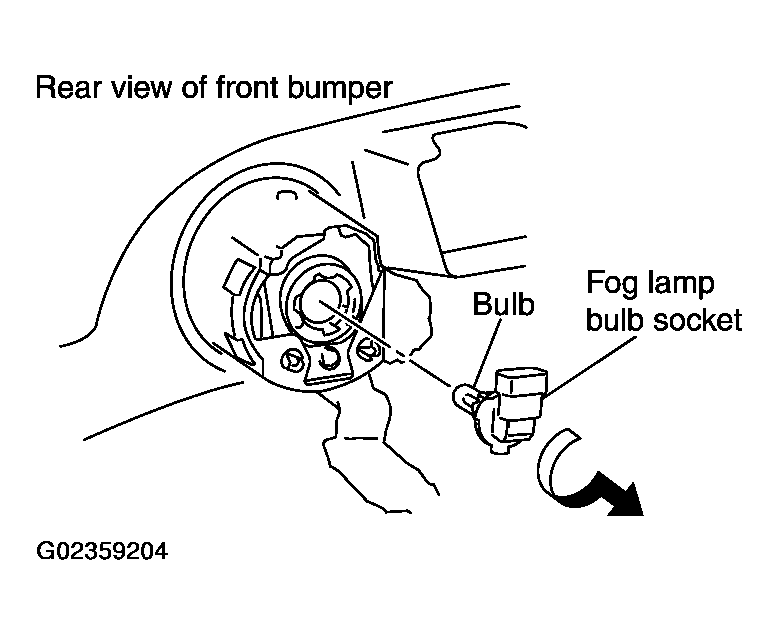

  Fig 1: Removing Fog Lamp Bulb Socket
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Never leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. May affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.
