Personal Lamp Control Does Not Operate

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR DOOR SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor to make sure switch "DOOR SW-RR" and "DOOR SW-RL" turn ON-OFF linked with rear door (RH and LH) operation.

OK or NG
1. OK: GO TO 2.
2. NG: Inspect malfunctioning rear door switch.

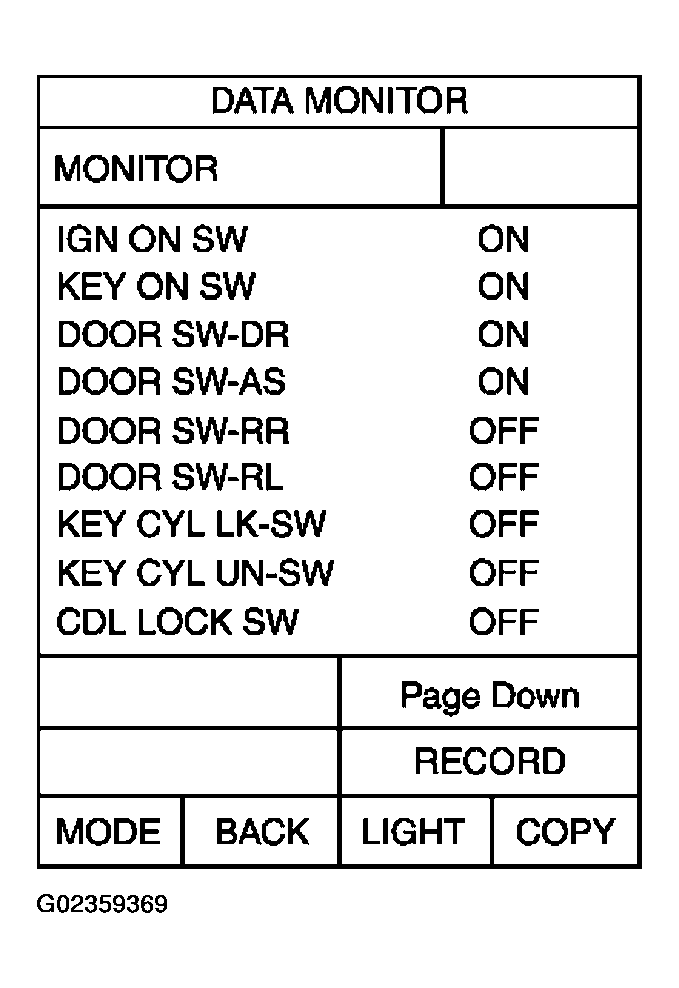

Fig 1: CONSULT-II Diagnosis Function Display
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK PERSONAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect personal lamp connector.
3. Open rear door.
4. Check continuity between personal lamp harness connector and ground.

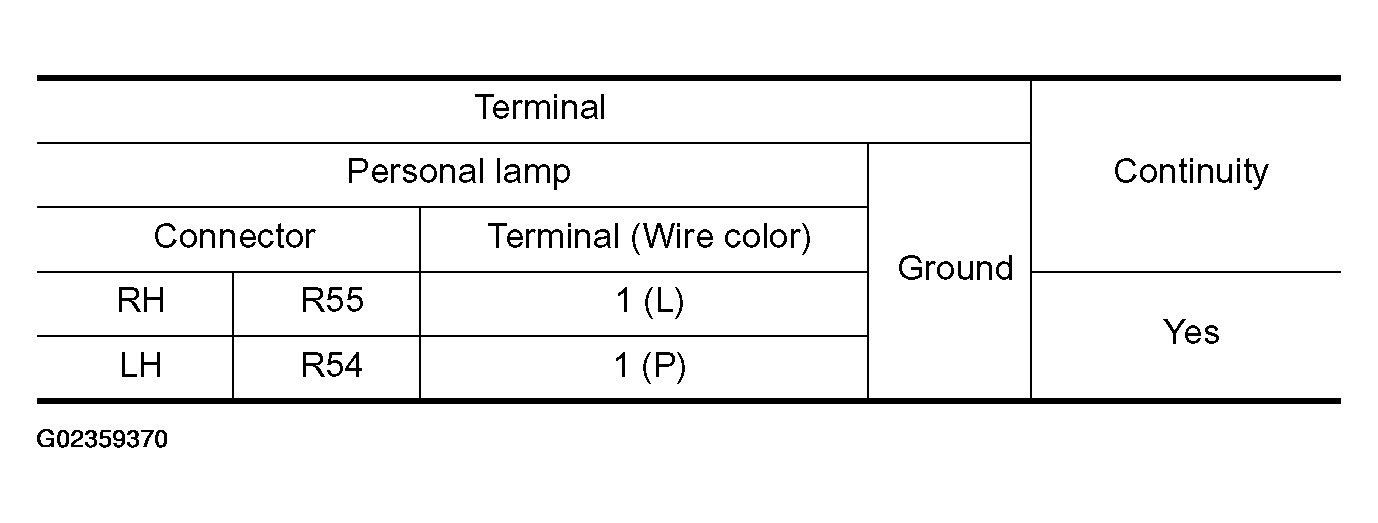

  Fig 2: Continuity Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: Repair harness or connector.

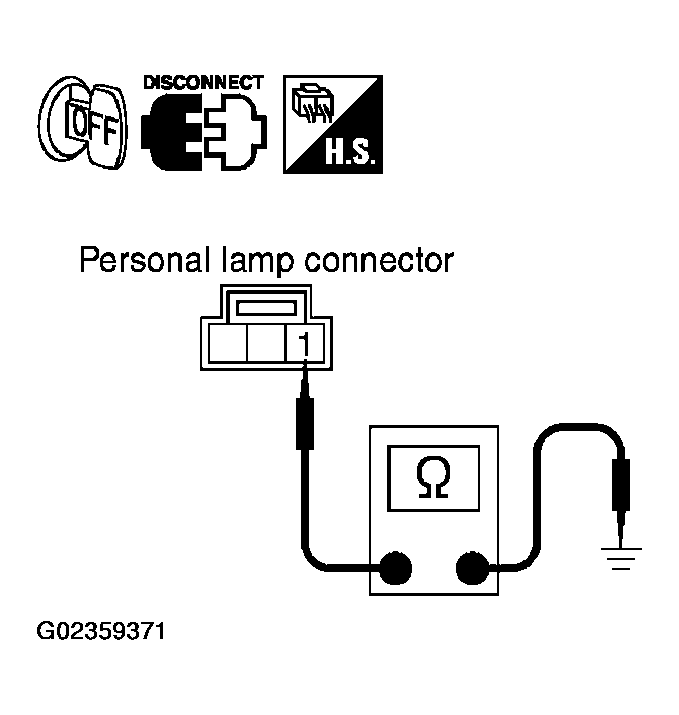

Fig 3: Checking Continuity Between Personal Lamp Harness Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK PERSONAL LAMP INPUT
Check voltage between personal lamp harness connector and ground.

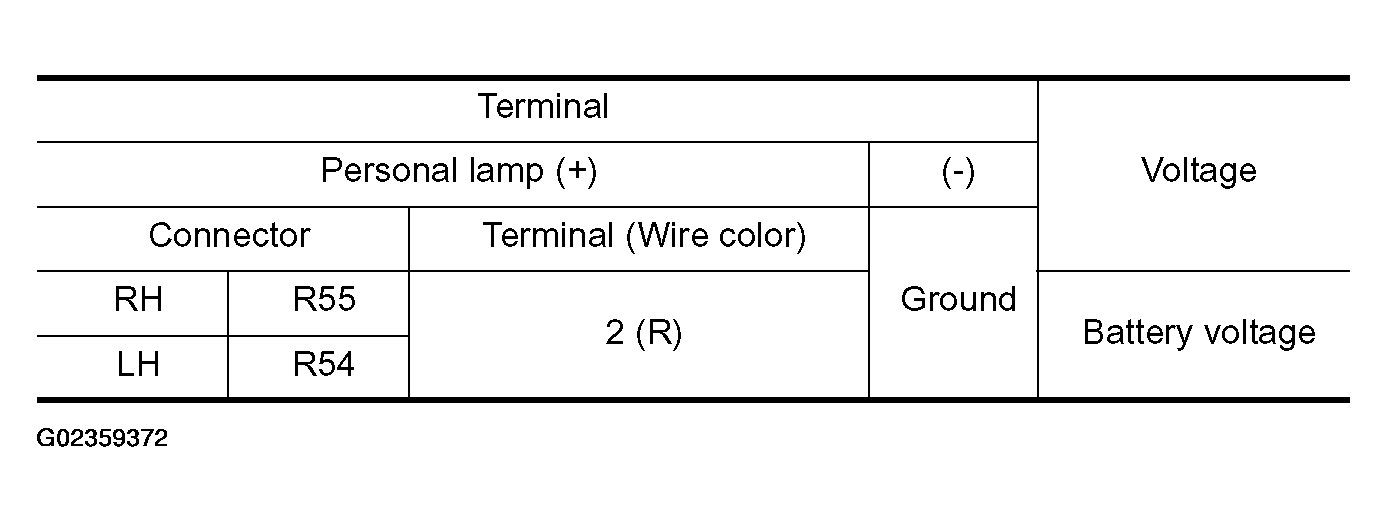

Fig 4: Voltage Table
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace personal lamp. Refer to "REMOVAL AND INSTALLATION ".
2. NG: GO TO 4.

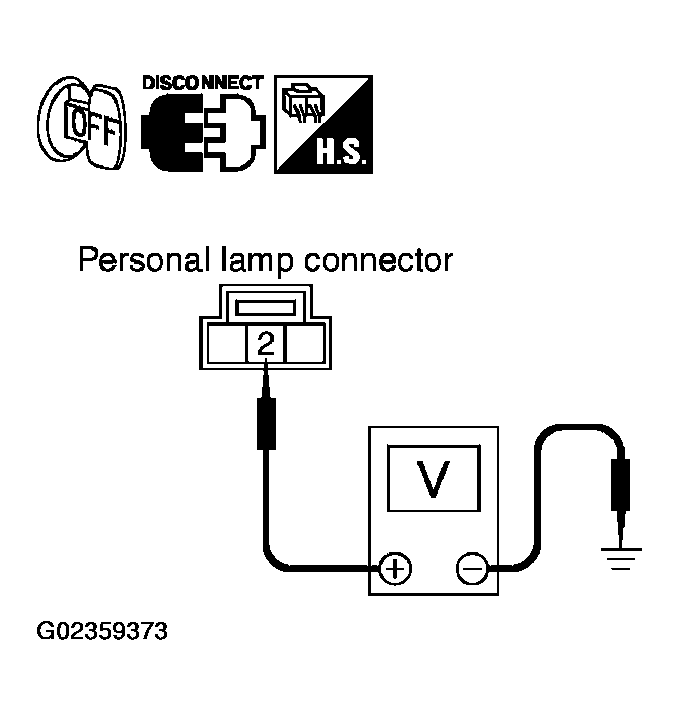

Fig 5: Checking Voltage Between Personal Lamp Harness Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK PERSONAL LAMP CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M4 terminal 41 (R/B) and personal lamp harness connector.

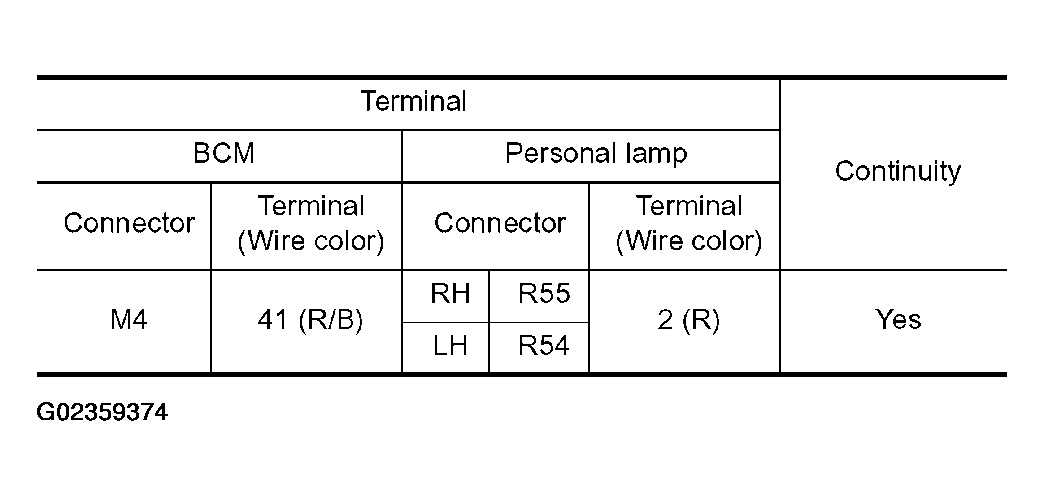

  Fig 6: Continuity Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace BCM if personal lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG: Repair harness or connector.

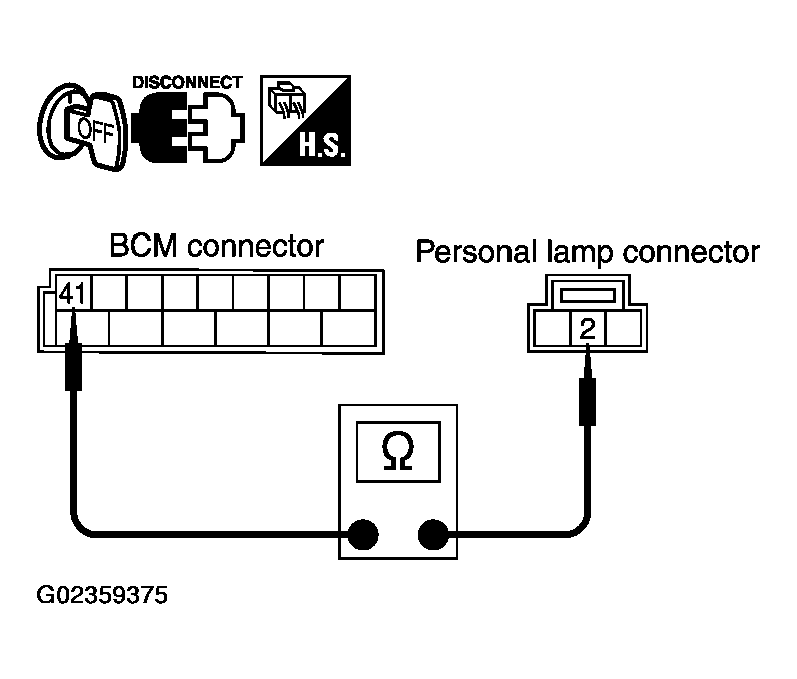

Fig 7: Checking Continuity Between Terminal 41 And Personal Lamp Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
