Bulb Replacement

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lens using clip driver or suitable tool.
  2. Remove bulb.
    1. Map lamp: 12V - 8W
  3. Installation is the reverse order of removal.

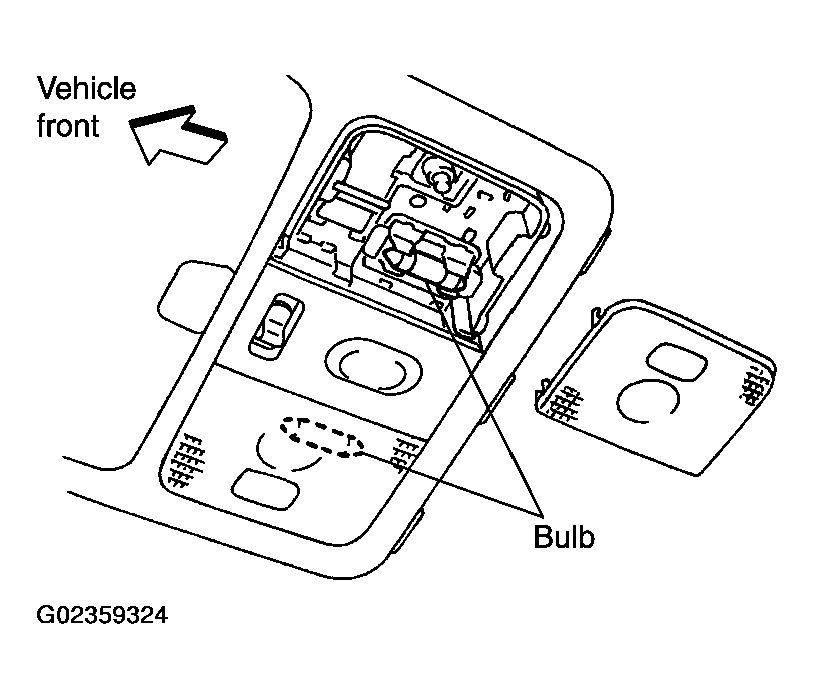

    Fig 1: Removing Bulb
    G02359324Courtesy of NISSAN MOTOR CO., U.S.A.
