Bulb Replacement

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove personal lamp. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove screw from personal lamp.
  3. Insert a screwdriver or similar tool and remove lens.
  4. Remove bulb.
    1. Personal lamp: 12V - 8W
  5. Installation is the reverse order of removal.

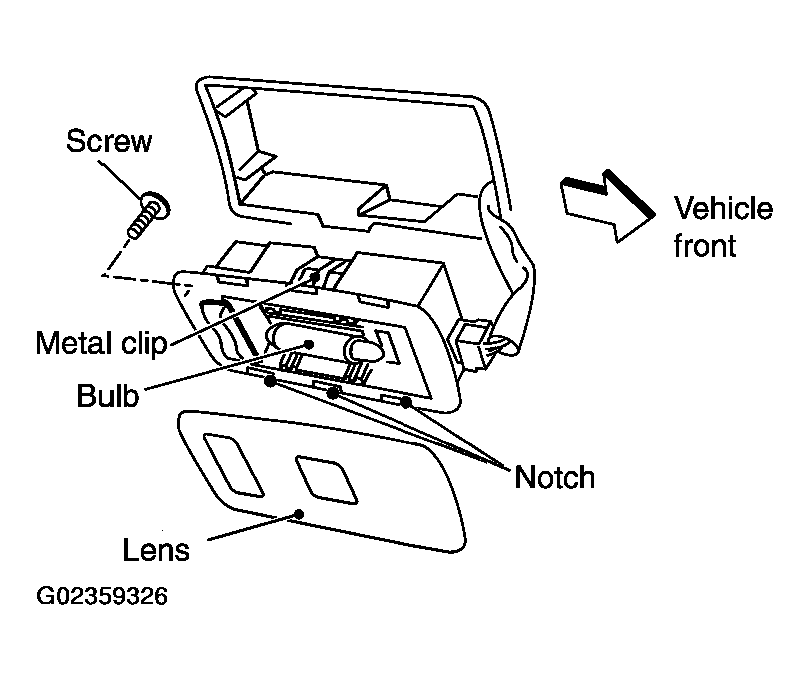

    Fig 1: Removing Screw From Personal Lamp
    G02359326Courtesy of NISSAN MOTOR CO., U.S.A.
