Disassembly and Assembly of Combination Meter: Disassembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws (3) and remove rear cover.
  2. Disconnect odo/trip meter and illumination control switch connector.

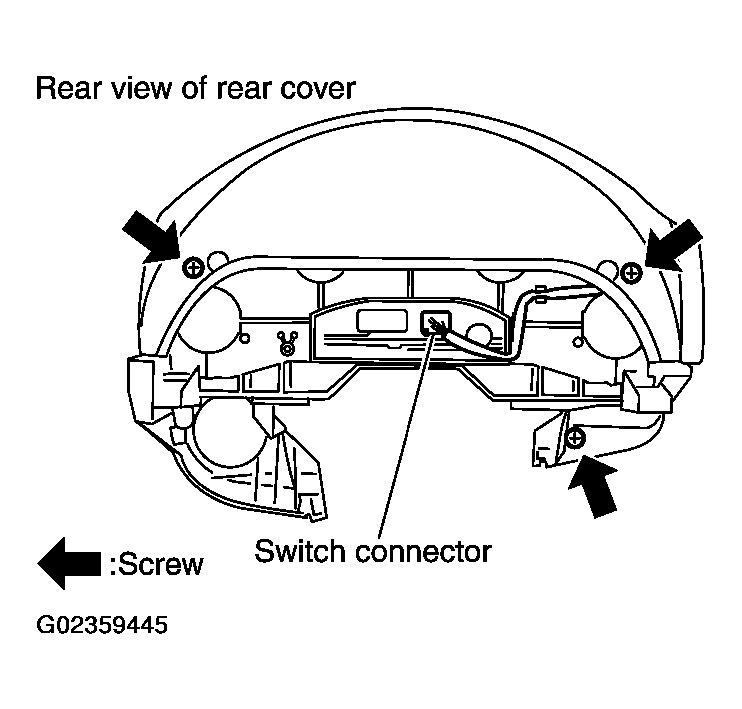

    Fig 1: Disconnecting Odo/Trip Meter And Illumination Control Switch Connector
    G02359445Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (2) and remove switch and meter housing.

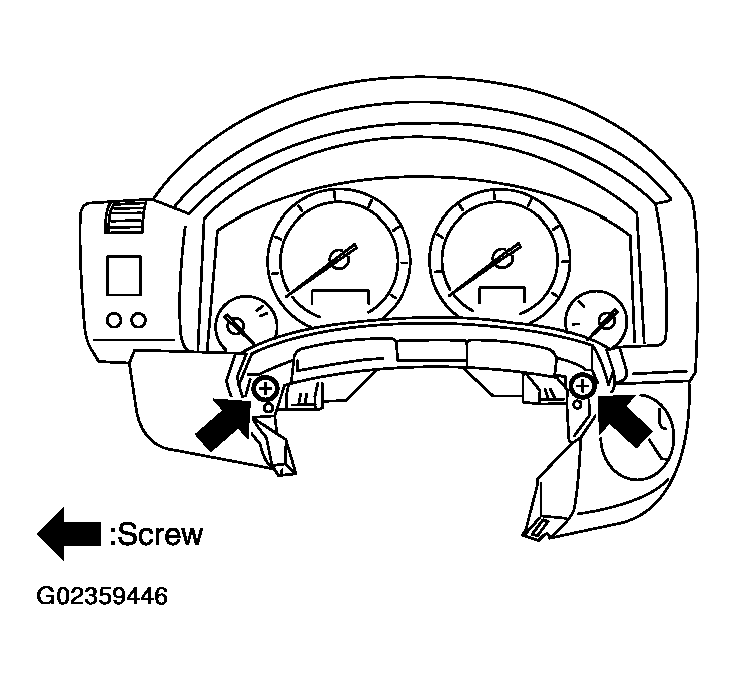

    Fig 2: Removing Switch And Meter Housing
    G02359446Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove screws (2) and remove reinforcing metal.
  5. Disengage tabs (8) to separate front cover.
  6. Remove screws (2) and remove prate.

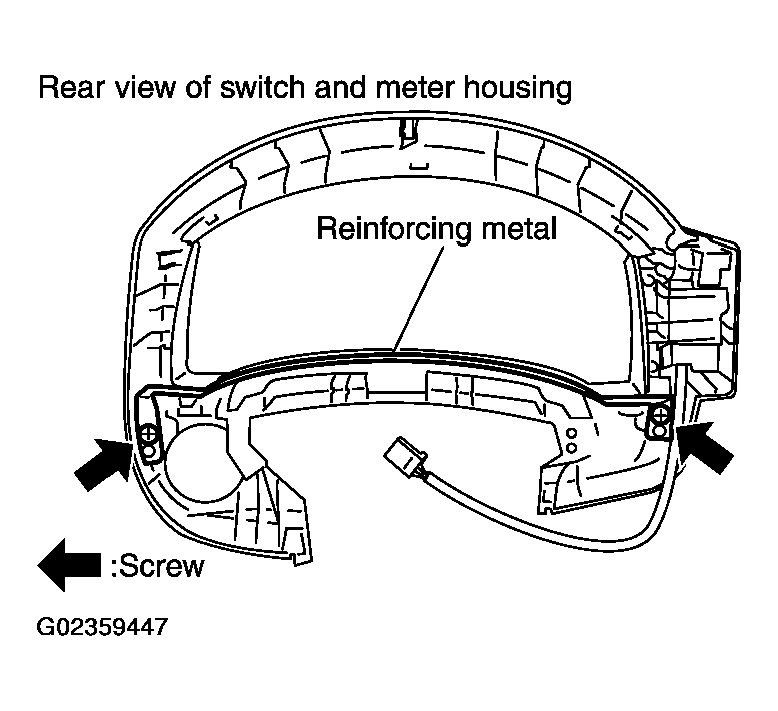

    Fig 3: Removing Reinforcing Metal
    G02359447Courtesy of NISSAN MOTOR CO., U.S.A.
