Check Fuel Level Sensor Unit and Fuel Pump (Main)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

Check the resistance between terminals 2 and 5.

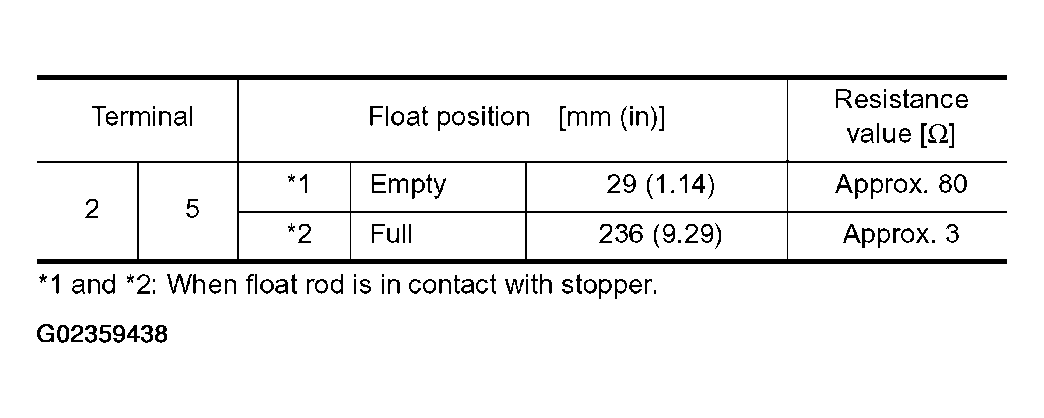

Fig 1: Resistance Table

Courtesy of NISSAN MOTOR CO., U.S.A.

If the results of check are NG, check the fuel level sensor unit and fuel pump (main) harness. Refer to "CHECK FUEL LEVEL SENSOR UNIT AND PUMP (MAIN) HARNESS ".

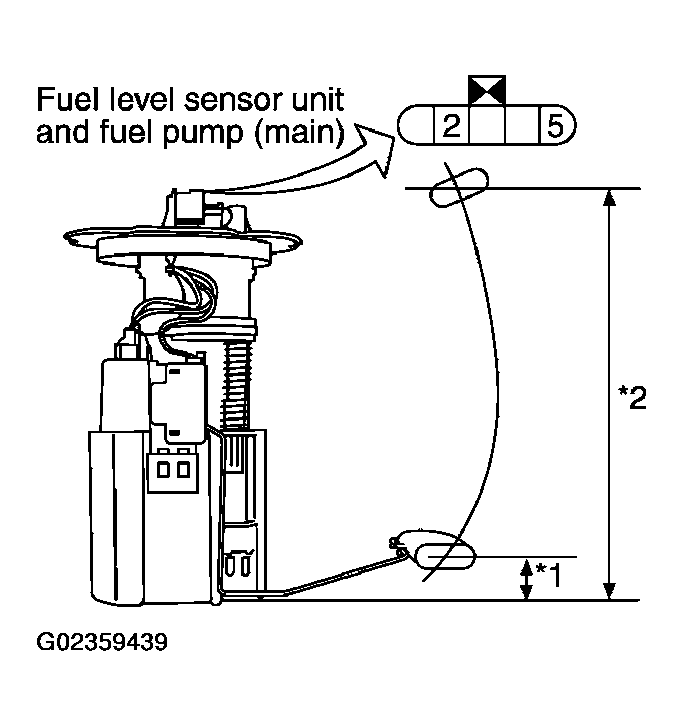

Fig 2: Identifying Fuel Level Sensor Unit And Fuel Pump (Main)
Courtesy of NISSAN MOTOR CO., U.S.A.
