Odo/Trip Meter and Illumination Control Switch Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

Symptom: Illumination control does not operate.

CHECK ODO/TRIP METER AND ILLUMINATION CONTROL SWITCH
1. Remove odo/trip meter and illumination control switch. Refer to "REMOVAL AND INSTALLATION OF ODO/TRIP METER AND ILLUMINATION CONTROL SWITCH ".
2. Check continuity between odo/trip meter and illumination control switch harness connector terminals 25, 26, 35 or 36 and 27.

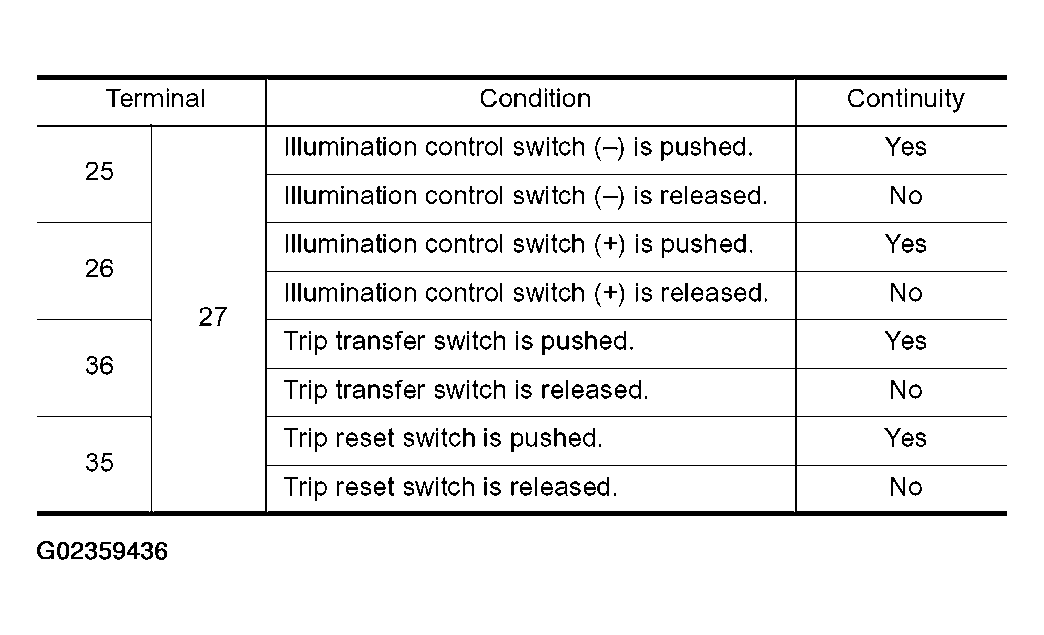

Fig 1: Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

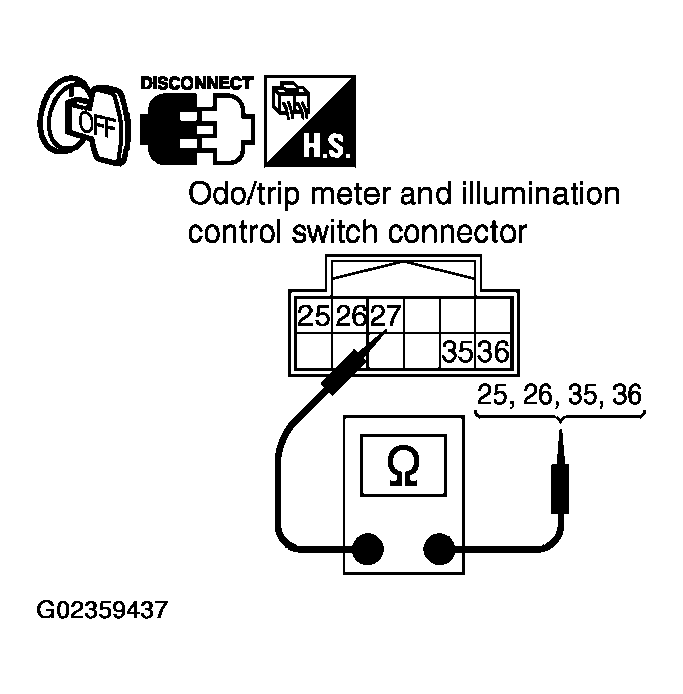

Fig 2: Checking Continuity Between Terminals 25, 26, 35 Or 36 And 27
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace combination meter.
2. NG: Replace odo/trip meter and illumination control switch.
