Consult-II Basic Operation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER on the data link connector.
Turn ignition switch ON.

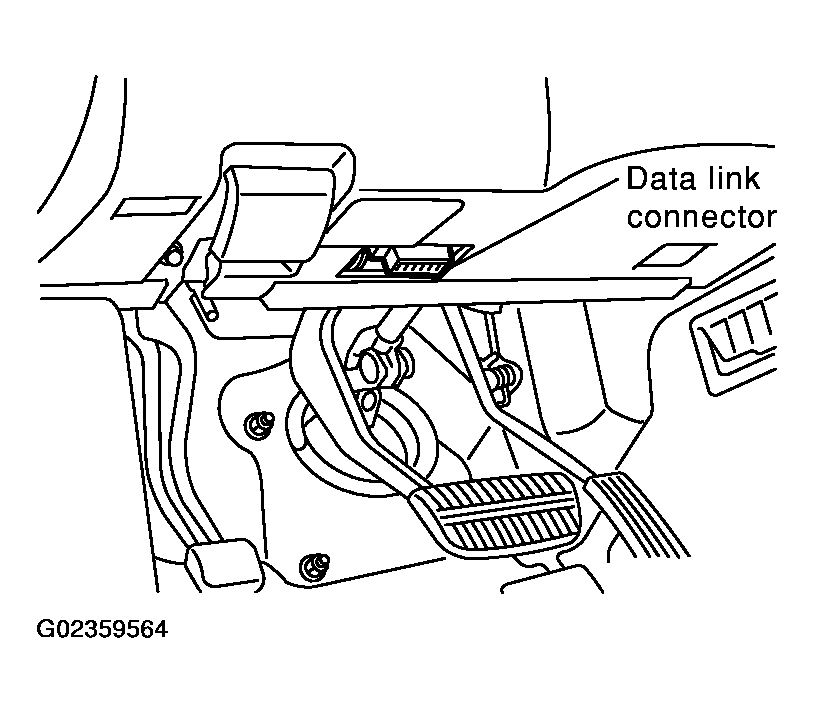

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

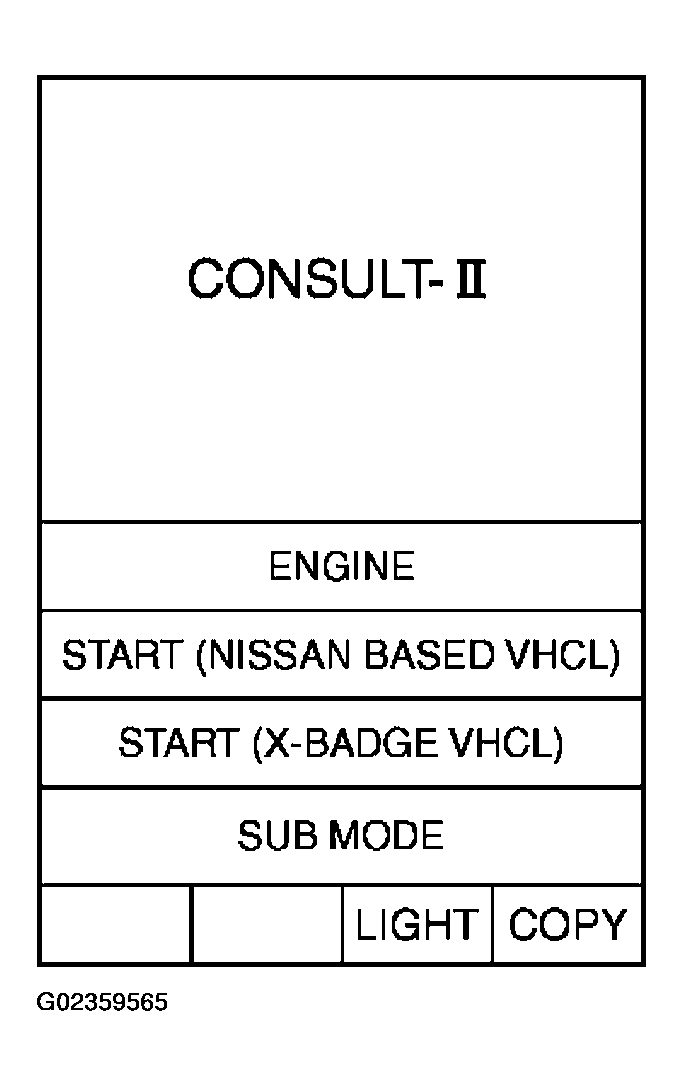

Fig 2: CONSULT-II Diagnosis Function Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "LDW" on "SELECT SYSTEM" screen.
If "LDW" is not displayed, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

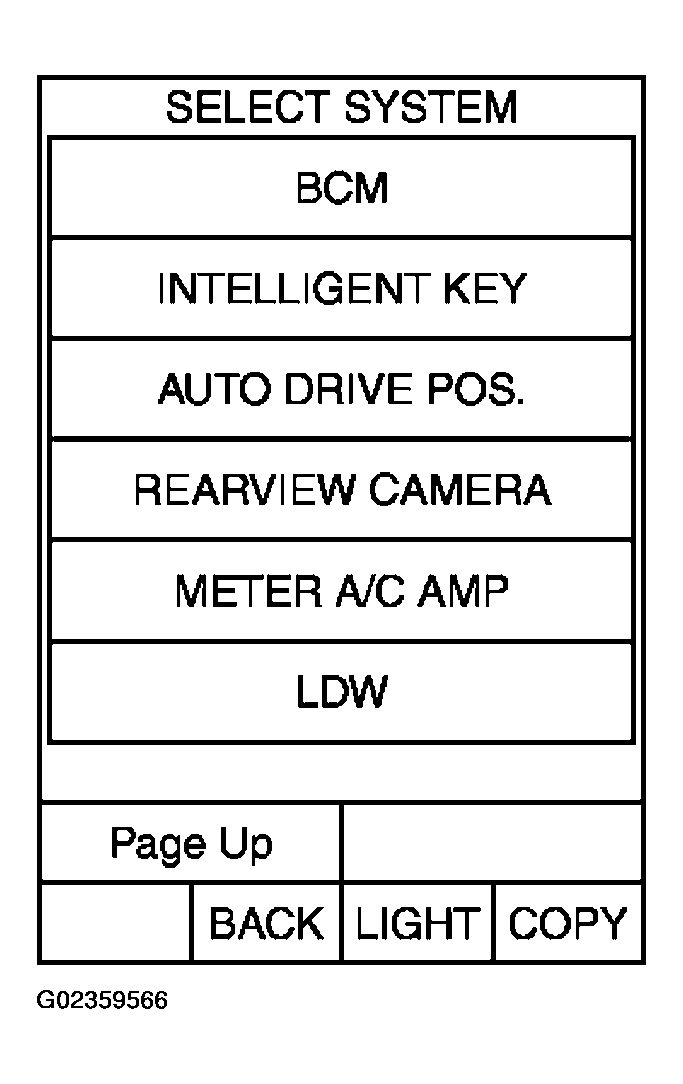

Fig 3: CONSULT-II Diagnosis Function Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch any field, "WORK SUPPORT", "SELF-DIAG RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR", "ACTIVE TEST" and "ECU PART NUMBER", on selection screen.

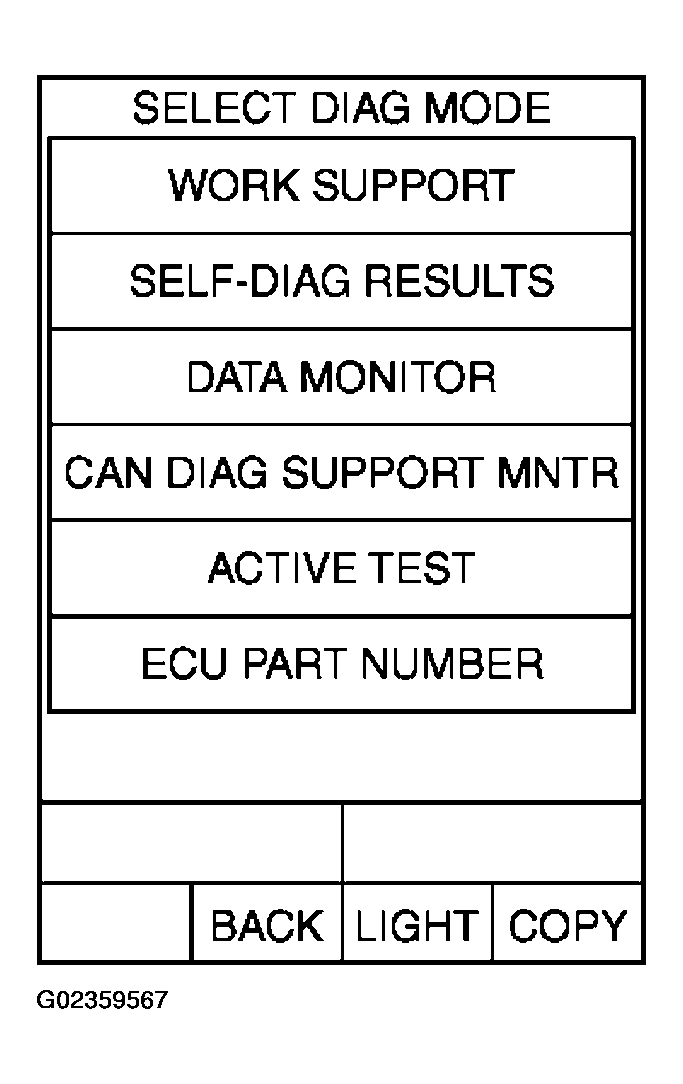

Fig 4: CONSULT-II Diagnosis Function Display (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
