Turn Signal Input Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TURN SIGNAL INPUT
Check turn signal input "TURN SIGNAL" in "DATA MONITOR" mode with CONSULT-II.
1. "TURN SIGNAL"
2. When lighting switch is in TURN RH position: RH
3. When lighting switch is in TURN LH position: LH
4. When hazard switch is turned ON: RH/LH
OK or NG
1. OK: Turn signal input is OK. Return to "SYMPTOM CHART ".
2. NG: Check turn signal and hazard warning lamps system, and repair or replace corresponding parts. Refer to "HOW TO PROCEED WITH TROUBLE DIAGNOSIS ".

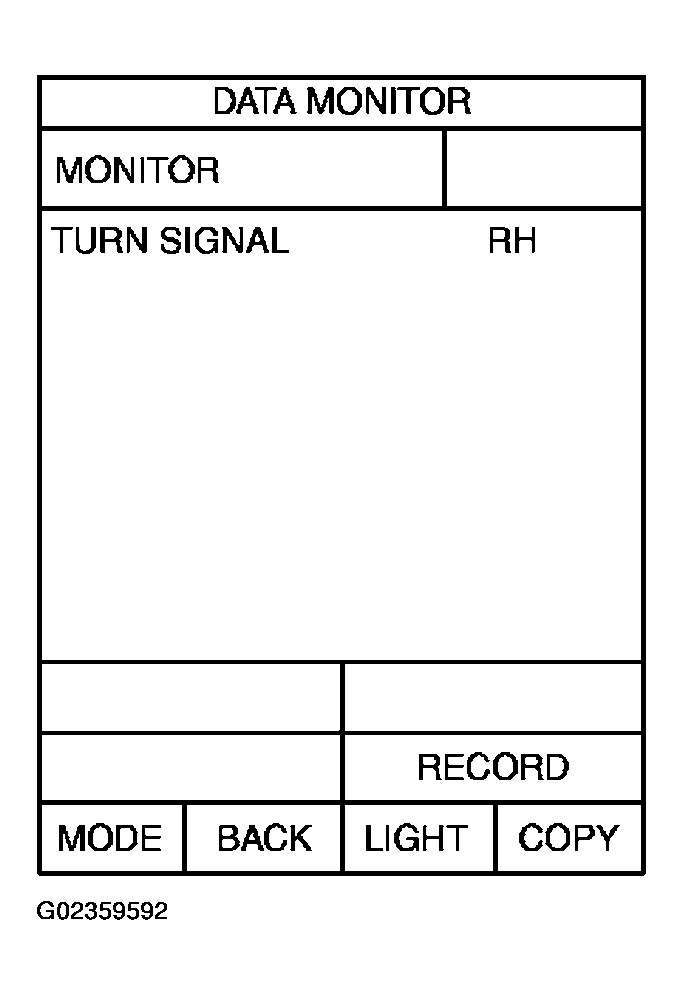

Fig 1: CONSULT-II Diagnosis Function Display
Courtesy of NISSAN MOTOR CO., U.S.A.
