Removal and Installation of Rear View Camera Control Unit: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument clock finisher and A/T console finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove screws (2), and remove rear view camera control unit.

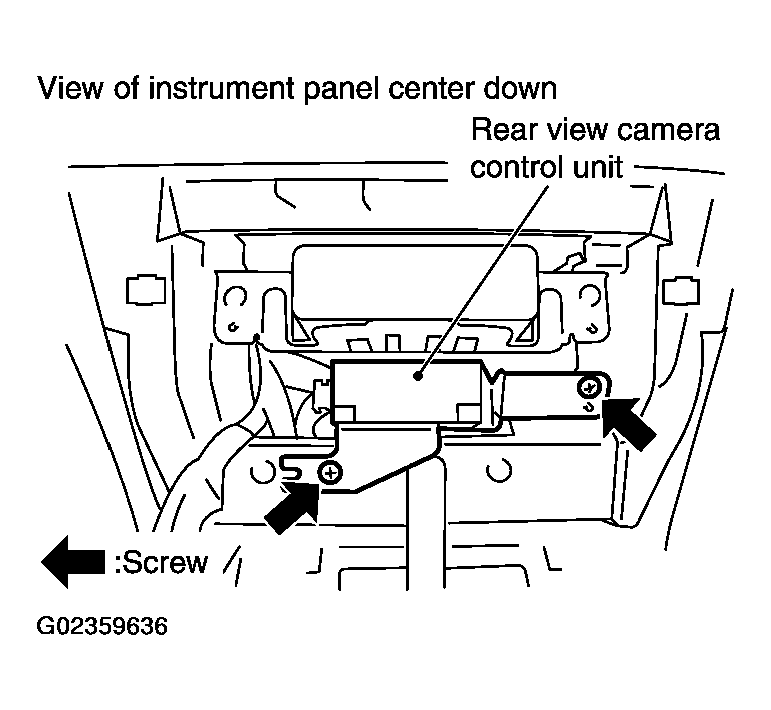

Fig 1: Removing Rear View Camera Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
