ICC System Display
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

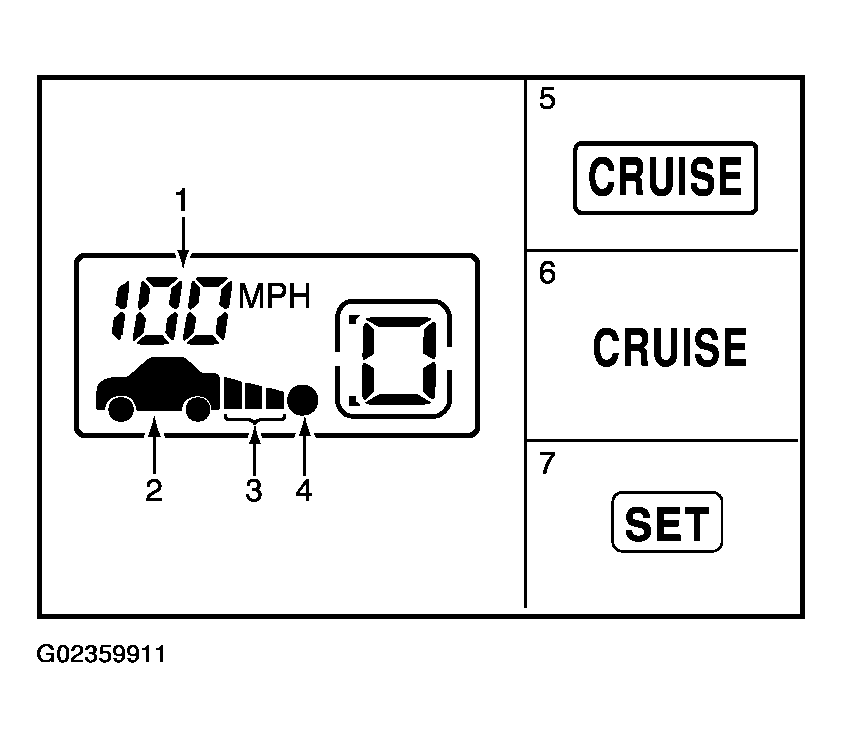

SYSTEM DISPLAY DESCRIPTION
| No. | Display items | Description |
|---|---|---|
| 1 | Set vehicle speed indicator | Indicates the set vehicle speed. |
| 2 | Vehicle ahead detection indicator | Indicates whether it detects a vehicle ahead. |
| 3 | Set distance indicator | Display the selected distance between vehicles set with the DISTANCE switch. |
| 4 | Own vehicle indicator | Indicates the base vehicle. |
| 5 | MAIN switch indicator lamp (Green) | Indicates that the MAIN switch is ON. |
| 6 | Intelligent cruise control system warning lamp (Orange) | The light comes on if there is a malfunction in the ICC system. |
| 7 | SET switch indicator lamp | Indicates that the conventional cruise control mode is controlled. |
