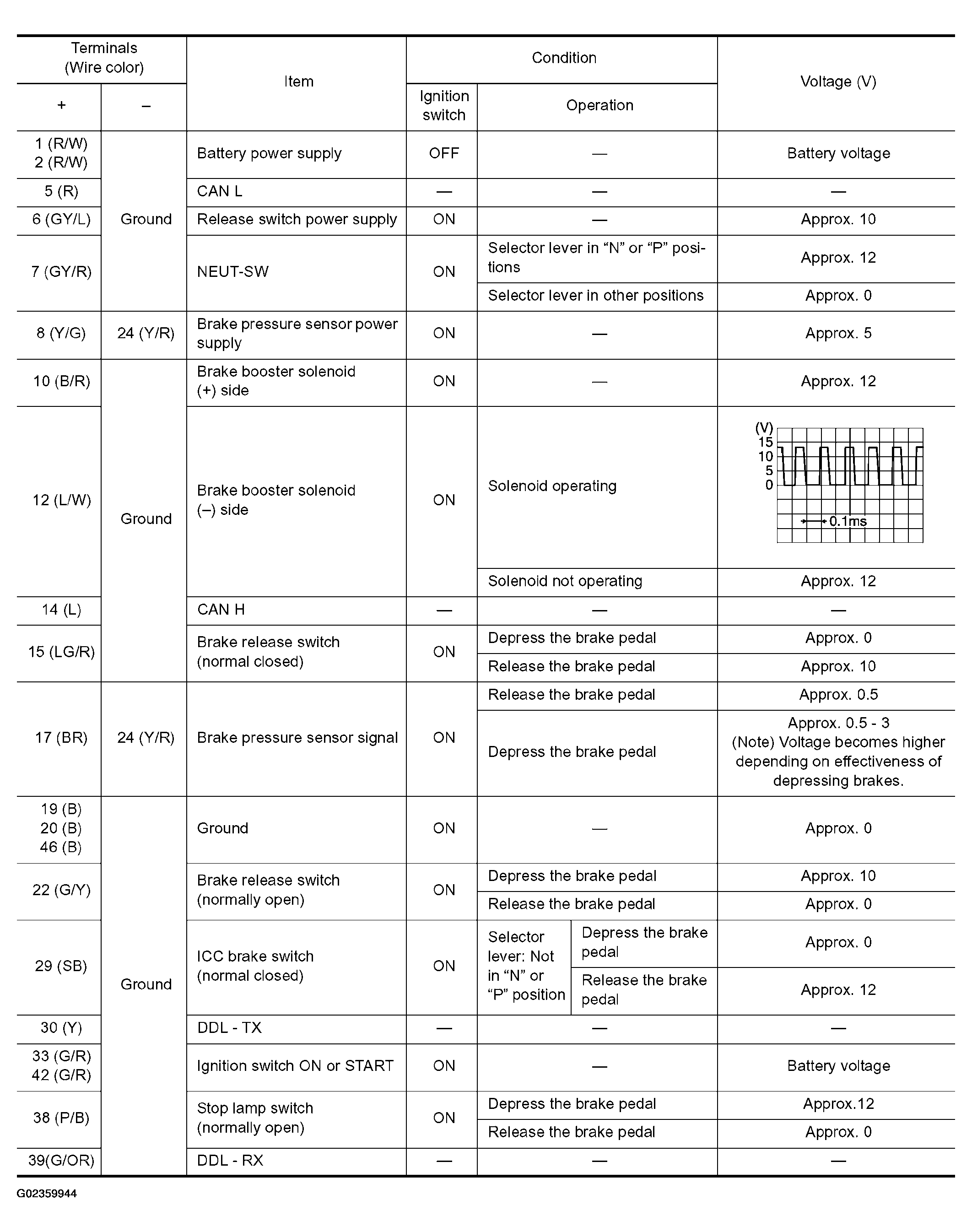

Fig 1: Terminals And Reference Value For ICC Unit (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

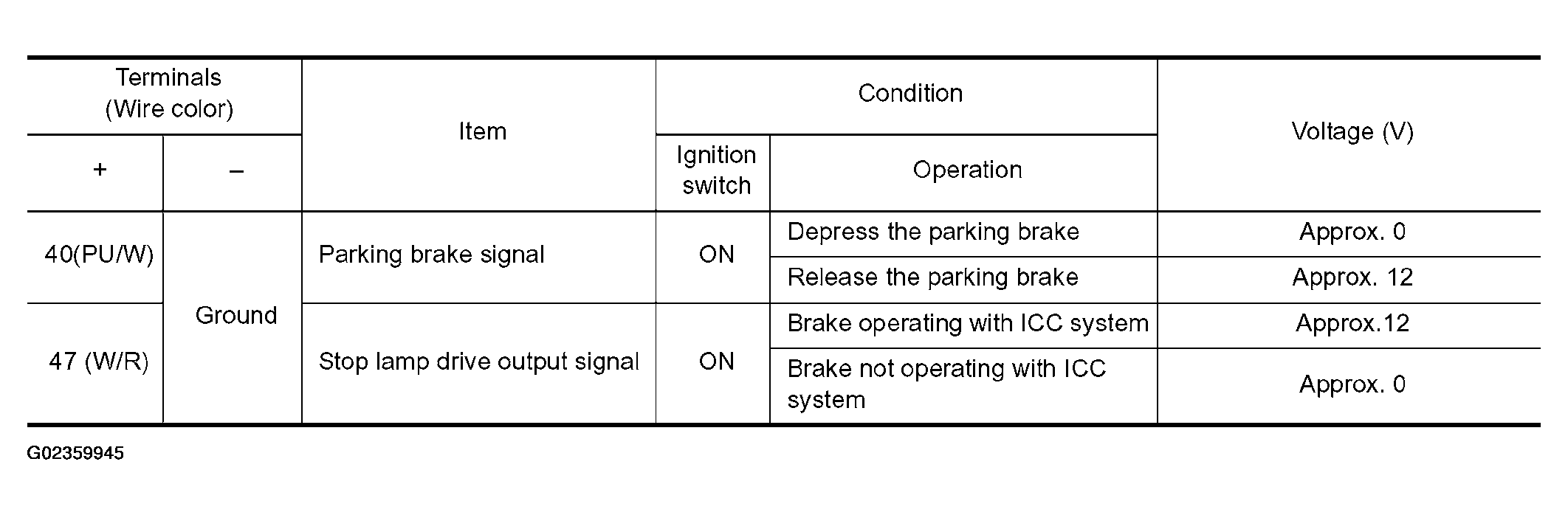

Fig 2: Terminals And Reference Value For ICC Unit (2 Of 2)
