Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

    Refer to "CONSULT-II BASIC OPERATION ".

  2. Touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS" and "SELECTION FROM MENU" on selection screen.
  3. Touch "START".
  4. Display the data monitor.
  5. If necessary, touch "COPY" in turn, and print data.

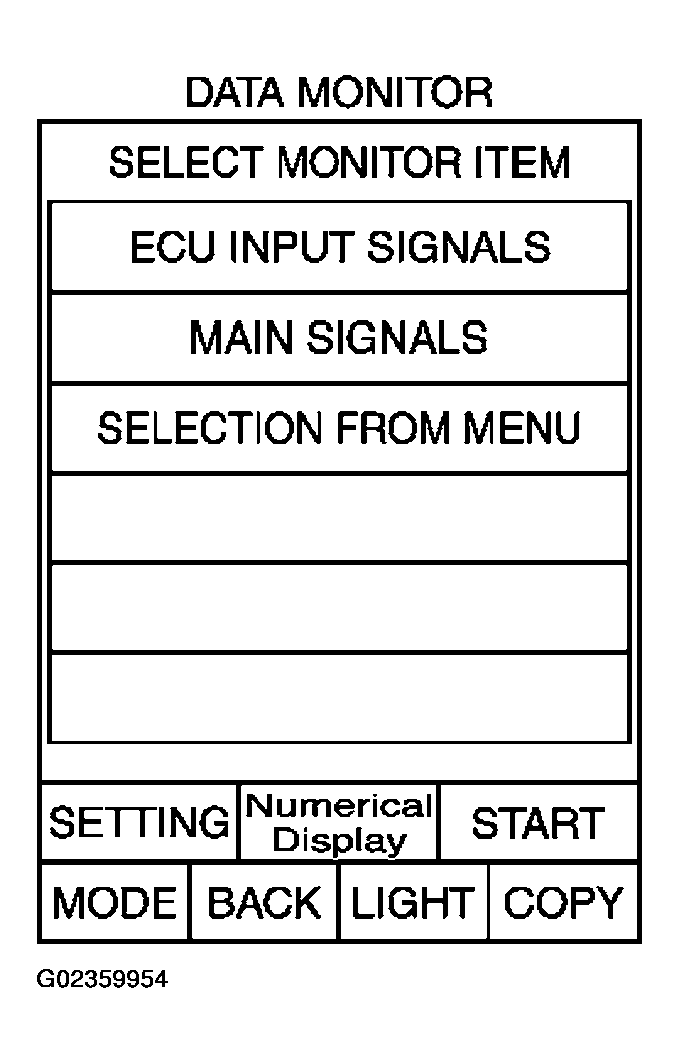

    Fig 1: Selection Screen
    G02359954Courtesy of NISSAN MOTOR CO., U.S.A.
