Component Description

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

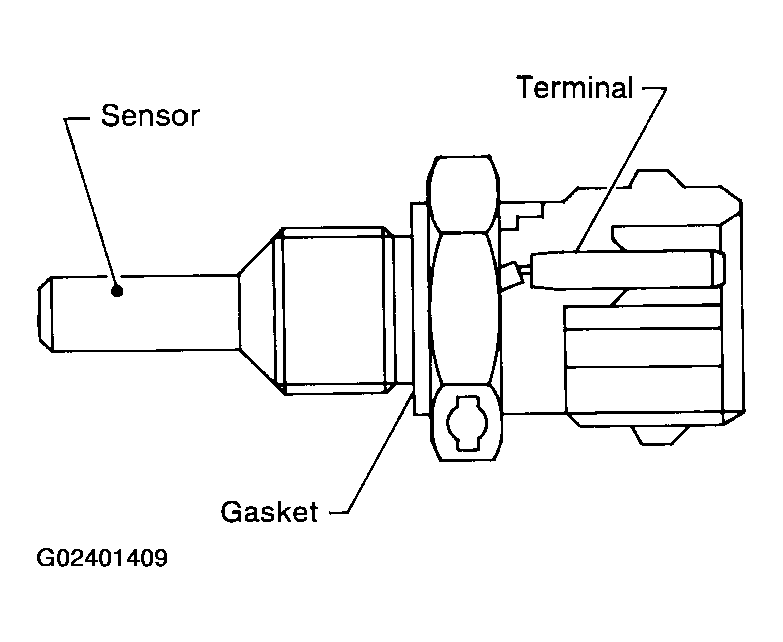

Fig 1: ECT Sensor Components

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

ENGINE COOLANT TEMPERATURE VOLTAGE AND RESISTANCE

Engine coolant temperature °C (°F)

Voltage⁽¹⁾ V

Resistance kΩ

-10 (14)

4.4

7.0-11.4

20 (68)

3.5

2.1-2.9

50 (122)

2.2

0.68-1.00

90 (194)

0.9

0.236-0.260

⁽¹⁾	This data is reference values and is measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.

Fig 2: Resistance & Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
