With Consult-II
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Replace thermostat with new one. Refer to "WATER INLET AND THERMOSTAT ASSEMBLY ". Use only a genuine NISSAN thermostat as a replacement. If an incorrect thermostat is used, the MIL may come on.
- Turn ignition switch ON.

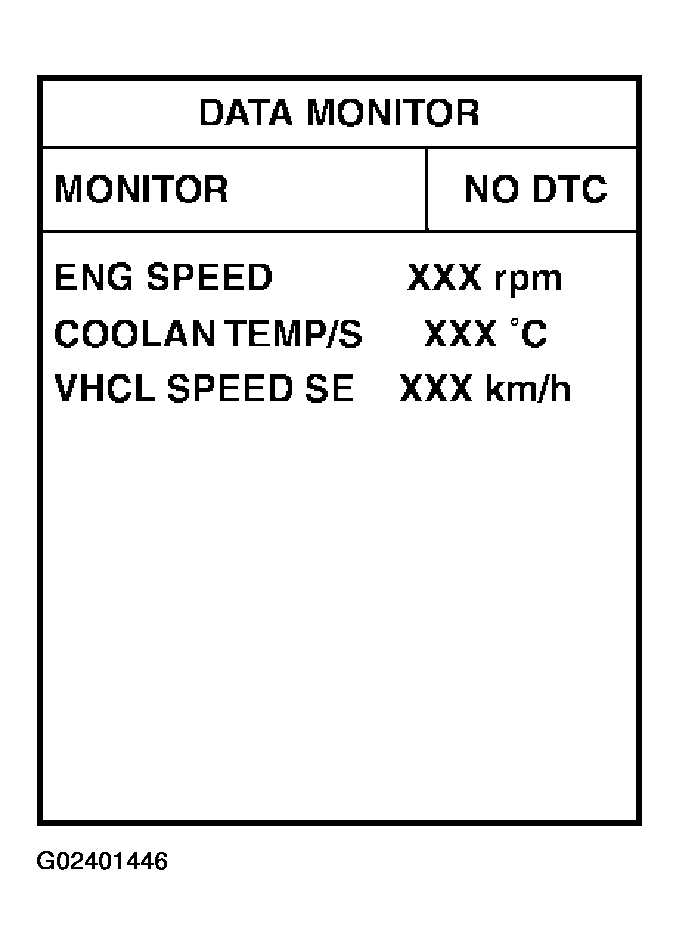

- Select "COOLAN TEMP/S" in "DATA MONITOR" mode with CONSULT-II.
- Check that the "COOLAN TEMP/S" is above 60°C (140°F).
If it is below 60°C (140°F), go to following step.
If it is above 60°C (140°F), cool down the engine to less than 60°C (140°F), then retry from step 1.
- Drive vehicle for 10 consecutive minutes under the following conditions.VHCL SPEED SE DESCRIPTION CHART
VHCL SPEED SE 80 - 120 km/h (50 - 75 MPH) If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
