DTC P0340, P0345: CMP Sensor (Phase): Wiring Diagram: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

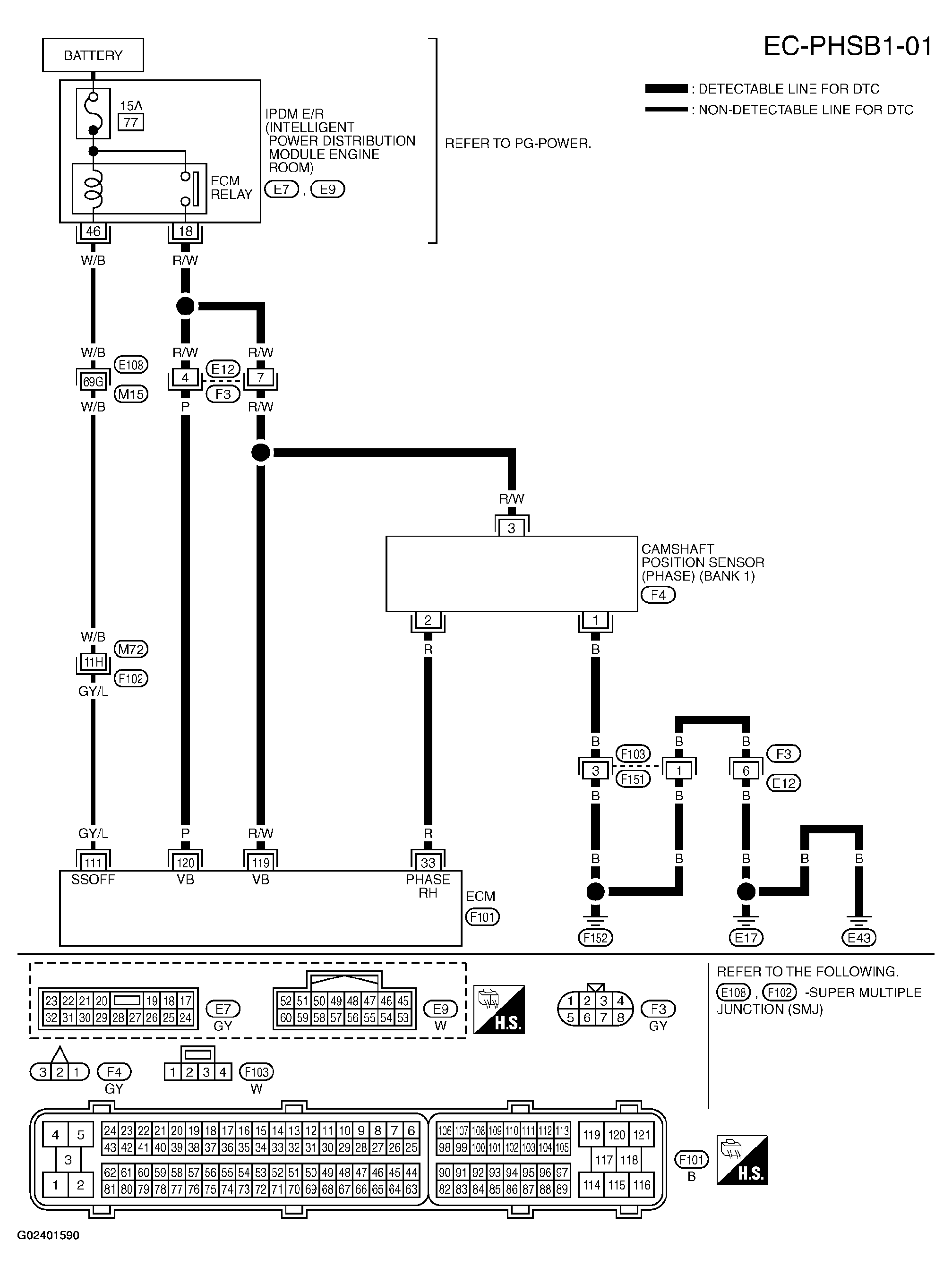

Fig 1: Wiring Diagram - CMP Sensor (PHASE) - EC-PHSB1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

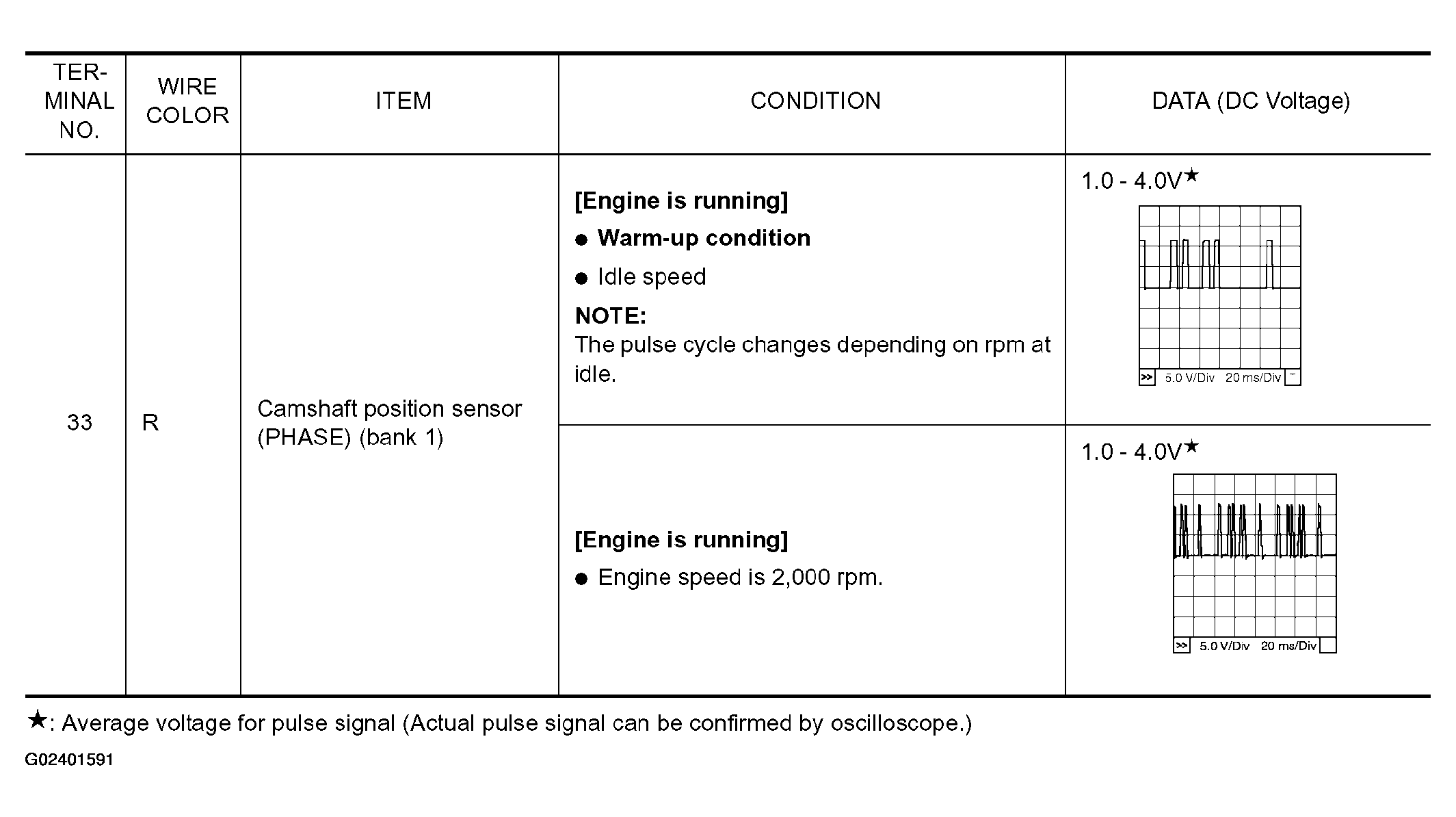

Fig 2: Terminal Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
