With Consult-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.
Start engine and let it idle for at least 70 seconds.
Select "PURG FLOW P0441" of "EVAPORATIVE SYSTEM" in "DTC CONFIRMATION" mode with CONSULT-II.
Touch "START".
If "COMPLETED" is displayed, go to step 7.

When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take at least 35 seconds.)

SHIFT LEVER AND SUITABLE POSITION

Shift lever	Suitable position
VHCL SPEED SE	32 - 120 km/h (20 - 75 MPH)
ENG SPEED	500 - 3, 000 rpm
B/FUEL SCHDL	1.3 - 9.0 msec
COOLAN TEMP/S	70 - 100°C (158 - 212°F)

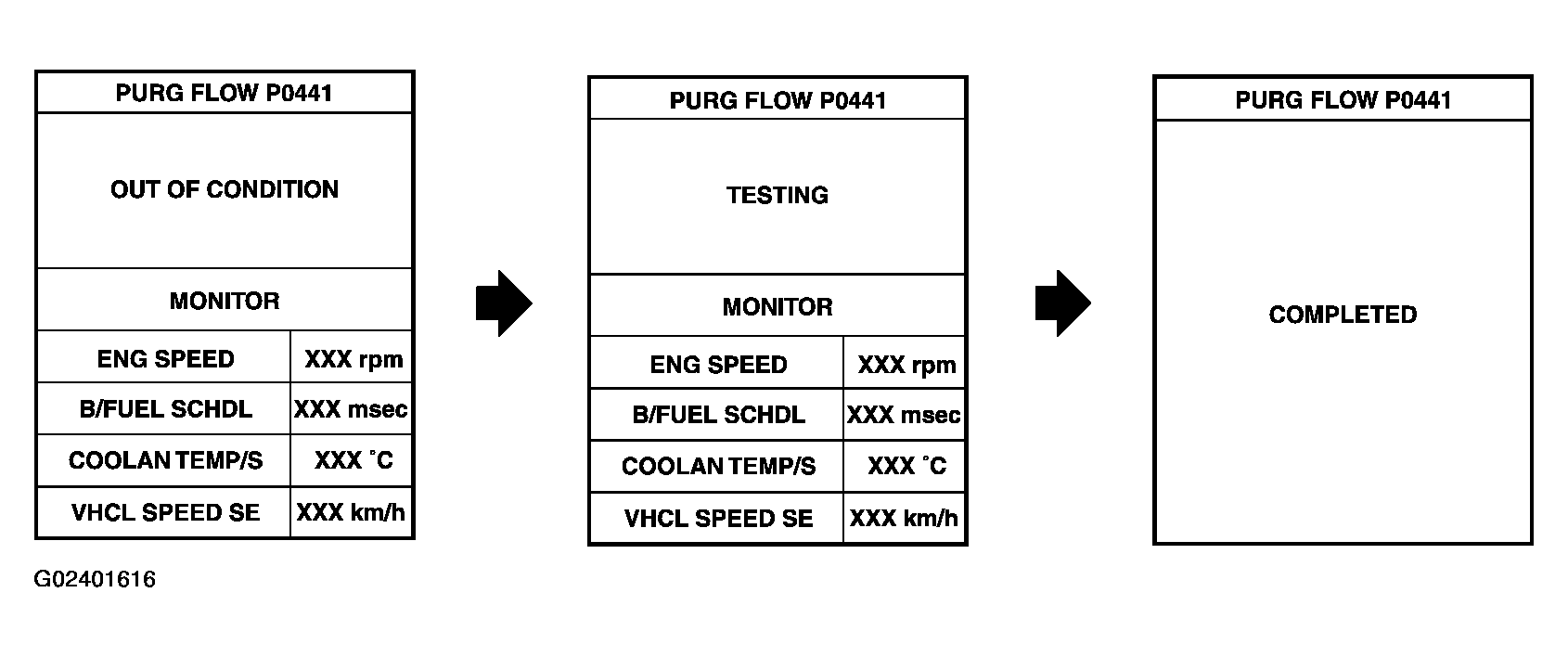

Fig 1: Scan Tool Display Procedure "Purge Flow P0441"

Courtesy of NISSAN MOTOR CO., U.S.A.

If "TESTING" is not changed for a long time, retry from step 2.

Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, Refer to "DIAGNOSTIC PROCEDURE ".
