Without CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.

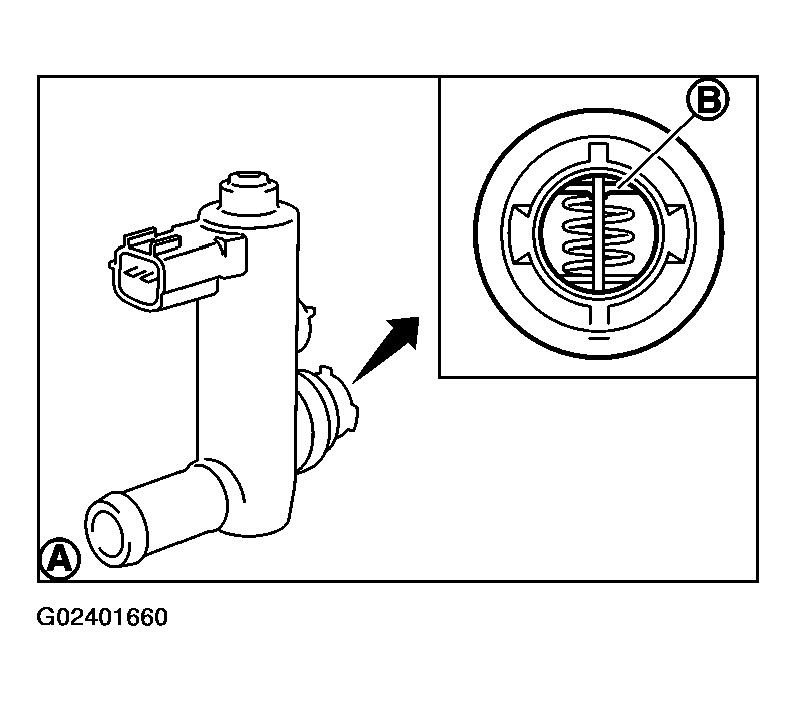

Fig 1: Removing EVAP Canister Vent Control Valve From EVAP Canister
Courtesy of NISSAN MOTOR CO., U.S.A.

Check air passage continuity and operation delay time under the following conditions.

Make sure new O-ring is installed properly.

CONDITION (PURG VOL CONT/IV VALUE) AND AIR PASSAGE CONTINUITY BETWEEN A AND B

Condition	Air passage continuity between A and B
12V direct current supply between terminals 1 and 2	No
OFF	Yes

Operation takes less than 1 second.

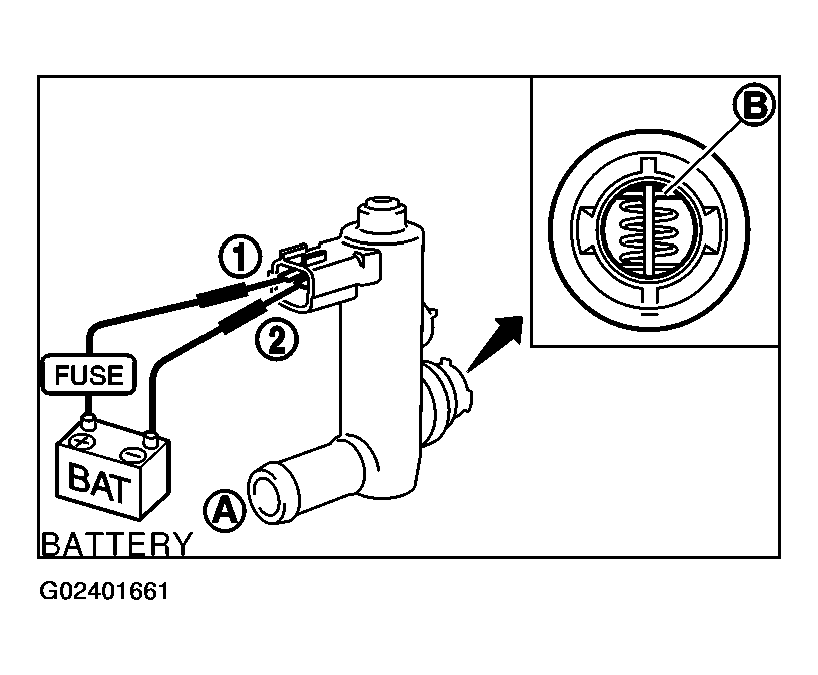

Fig 2: Direct A 12V Current Supply Between Terminals 1 & 2 In Order To Check Air Passage Continuity & Operation Delay Time

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
Perform step 3 again.
