With Consult-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF and wait at least 10 seconds.
  2. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait at least 40 seconds.
    NOTE: Do not depress accelerator pedal even slightly.

    If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

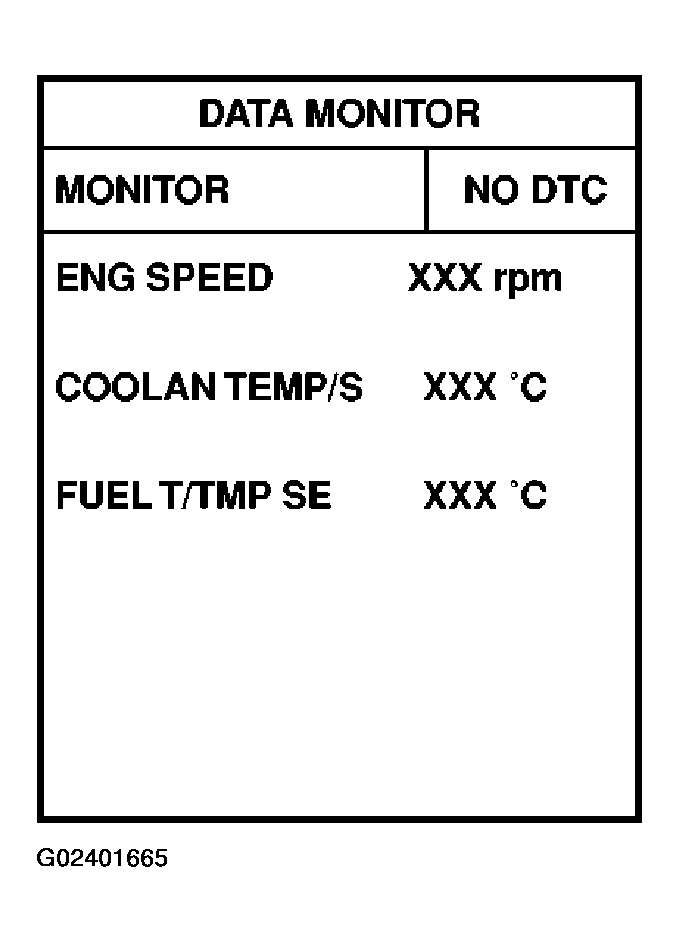

    Fig 1: Scan Tool Display "Data Monitor"
    G02401665Courtesy of NISSAN MOTOR CO., U.S.A.
