With Consult-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.
  5. Make sure that "FUEL T/TEMP SE" is more than 0°C (32°F).
  6. Start engine and wait at least 20 seconds.
  7. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

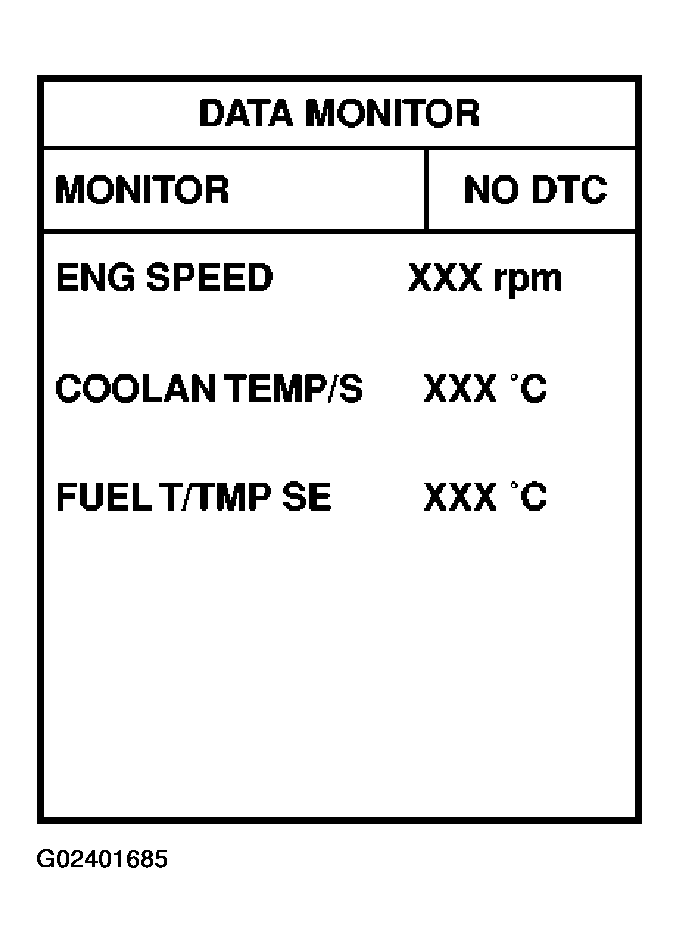

    Fig 1: Scan Tool Display "Data Monitor"
    G02401685Courtesy of NISSAN MOTOR CO., U.S.A.
