With Consult-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten fuel filler cap securely until ratcheting sound is heard.
  2. Turn ignition switch ON.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  5. Make sure that the following conditions are met.

    COOLAN TEMP/S: 0 - 70°C (32 - 158°F)

    INT/A TEMP SE: 0 - 60°C (32 - 140°F)

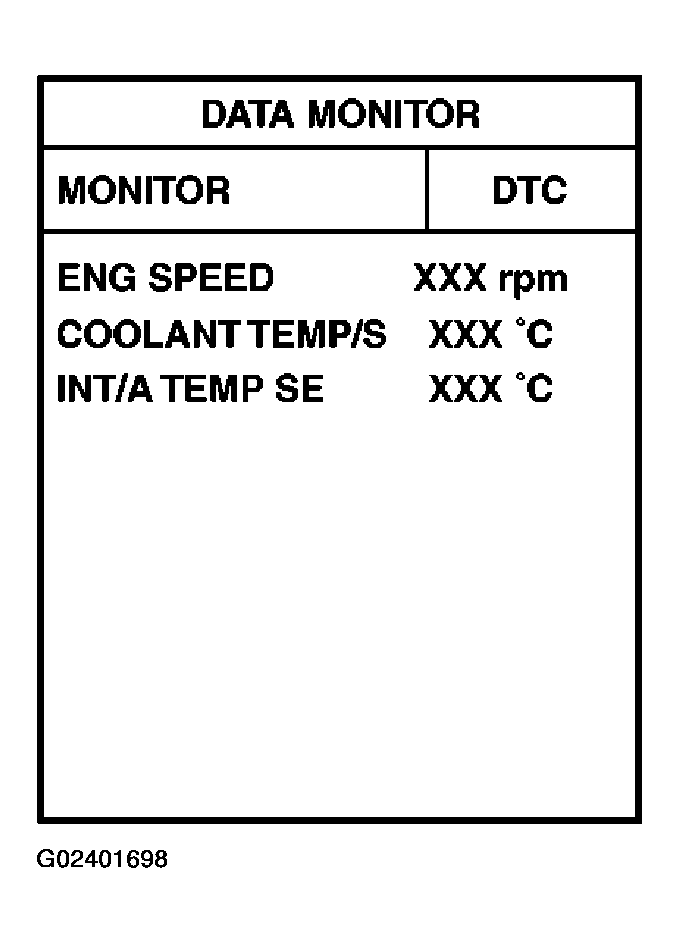

    Fig 1: Scan Tool Display "Data Monitor"
    G02401698Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select "EVAP SML LEAK P0442/P1442" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.

    Follow the instruction displayed.

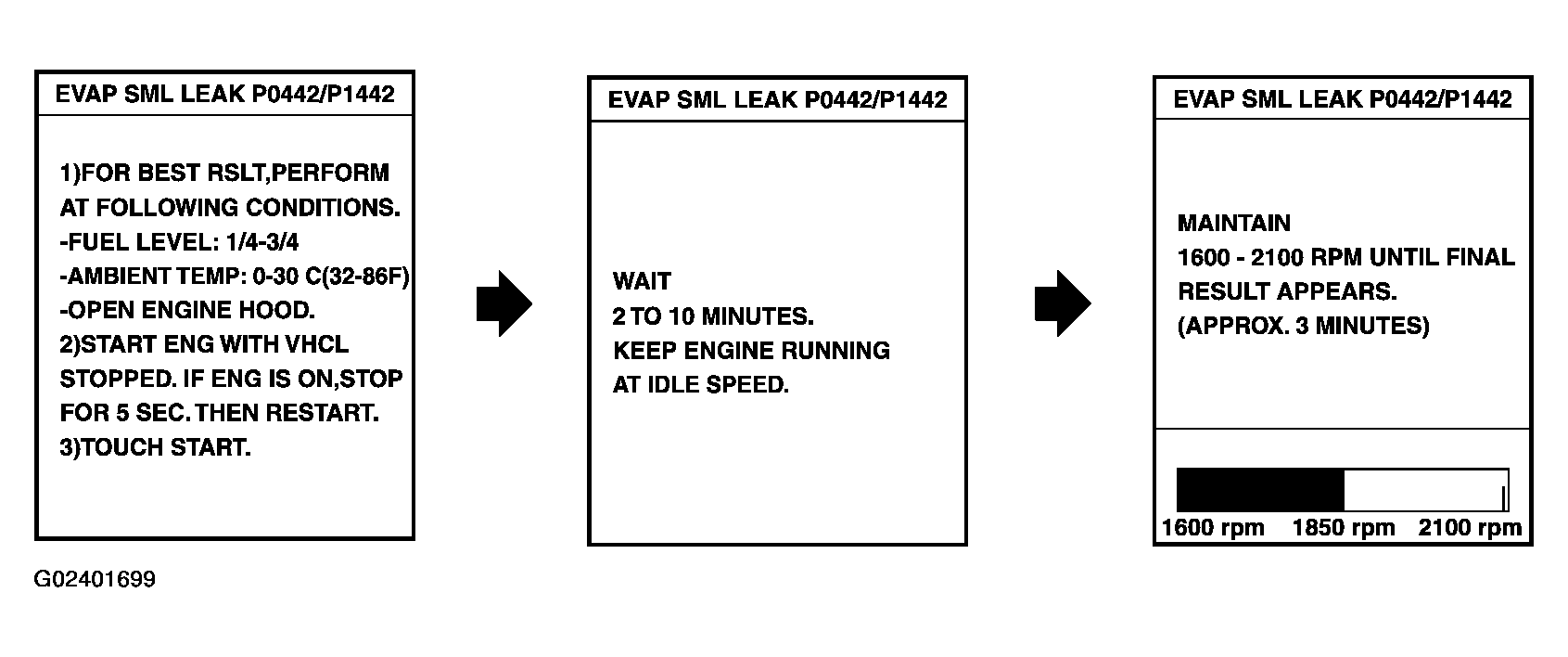

    Fig 2: Scan Tool Display Procedure For "EVAP SML Leak P0442/P1442 Flow"
    G02401699Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to "BASIC INSPECTION ".
  7. Make sure that "OK" is displayed.

    If "NG" is displayed, select "SELF-DIAG RESULTS" mode and make sure that "EVAP GROSS LEAK [P0455]" is displayed. If it is displayed, Refer to "DIAGNOSTIC PROCEDURE ".

    If P0442 is displayed, perform "DIAGNOSTIC PROCEDURE " for DTC P0442.

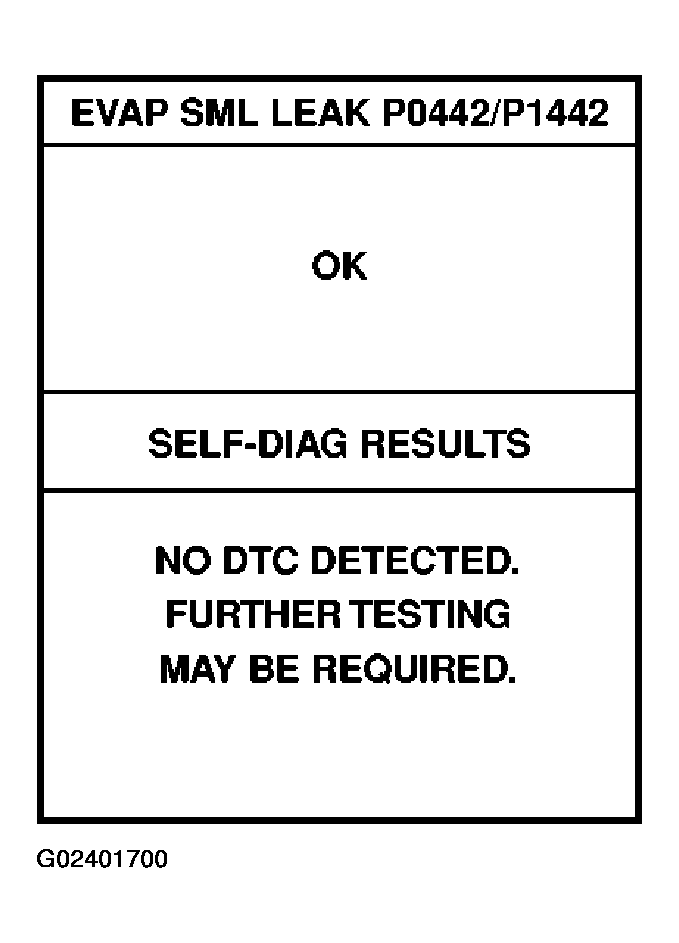

    Fig 3: Scan Tool Display "EVAP SML Leak P0442/P1442"
    G02401700Courtesy of NISSAN MOTOR CO., U.S.A.
