On Board Diagnosis Logic

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

These self-diagnoses have the one trip detection logic.

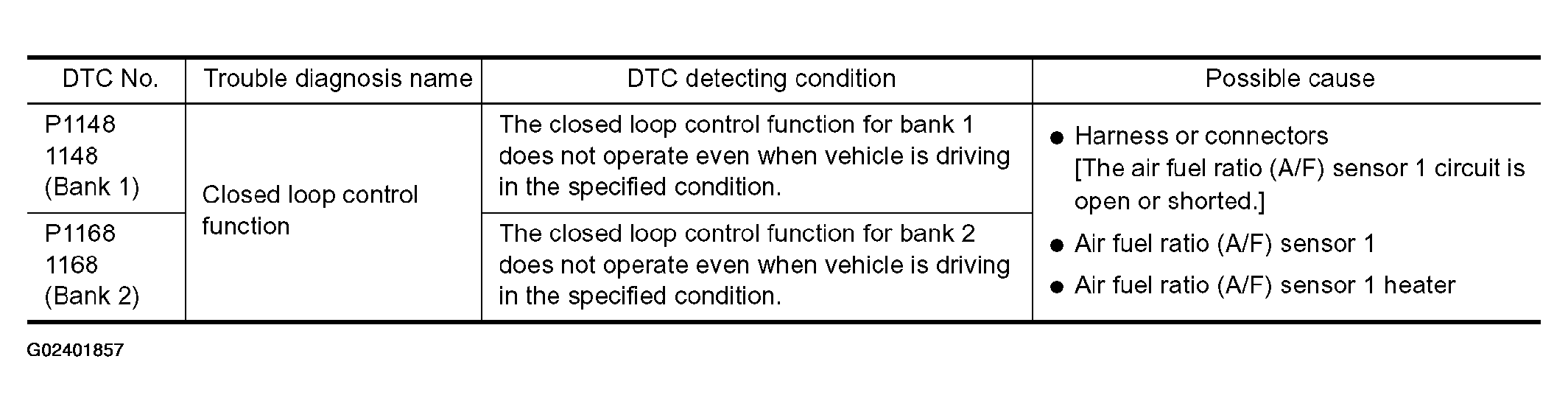

Fig 1: DTC Possible Cause Chart
G02401857Courtesy of NISSAN MOTOR CO., U.S.A.

DTC P1148 or P1168 is displayed with another DTC for air fuel ratio (A/F) sensor 1. Perform the trouble diagnosis for the corresponding DTC.
