On Board Diagnosis Logic

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-diagnosis.

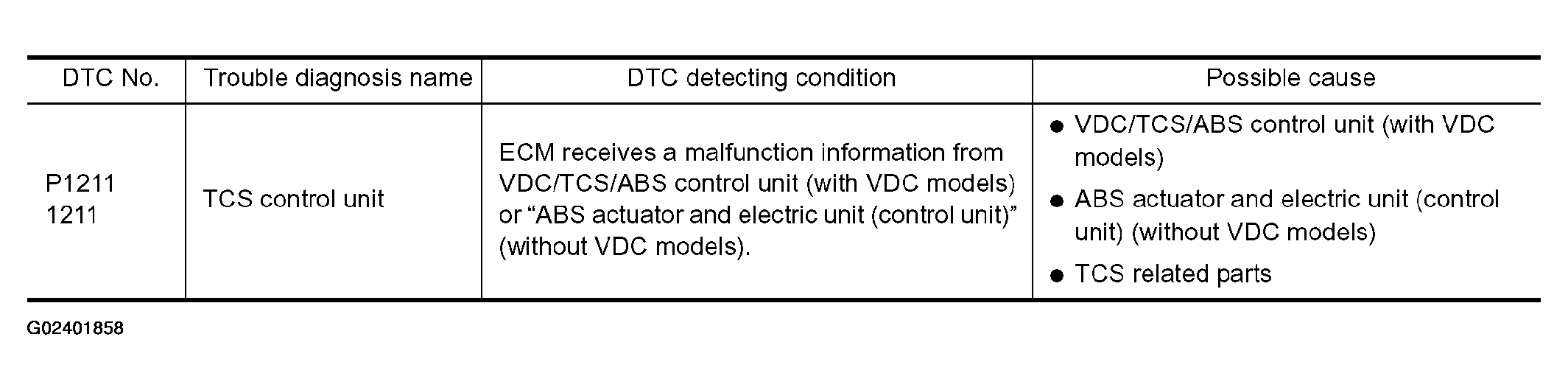

Fig 1: DTC Possible Cause Chart
G02401858Courtesy of NISSAN MOTOR CO., U.S.A.
