Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

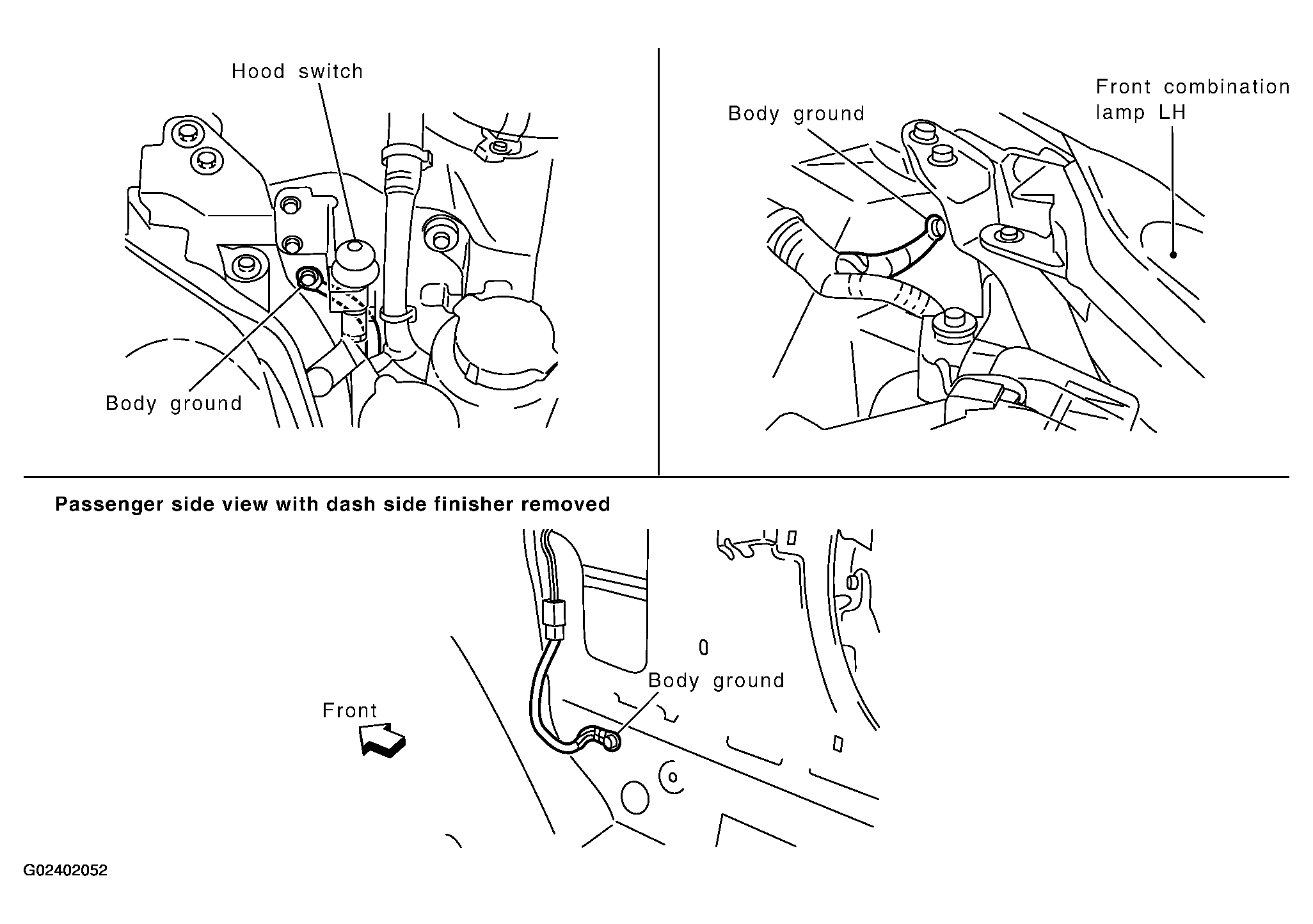

      Fig 1: Loosen & Retighten Three Ground Screws On The Body
      G02402052Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace ground connections.
  2. CHECK ASCD STEERING SWITCH CIRCUIT

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
    3. Check each item indication under the following conditions.

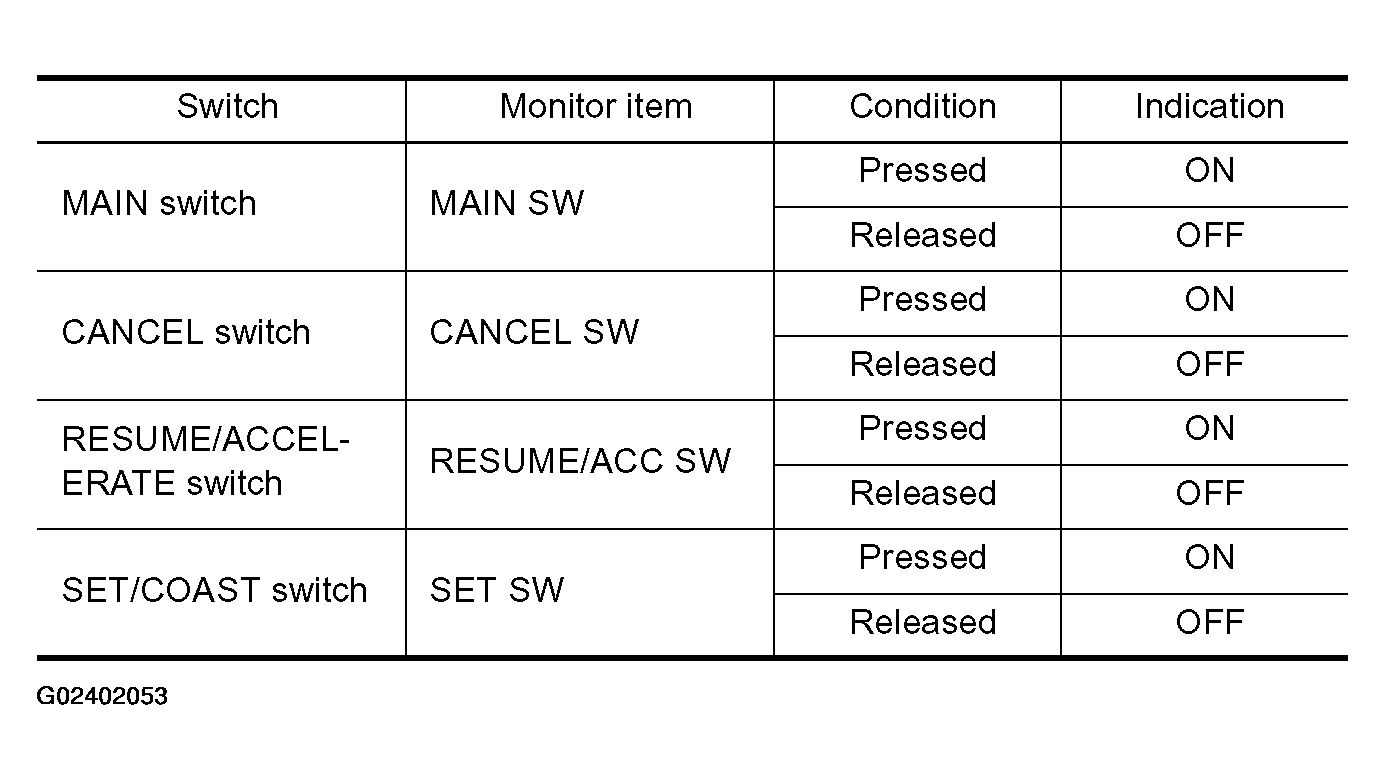

      Fig 2: Switch Condition Specification Table
      G02402053Courtesy of NISSAN MOTOR CO., U.S.A.

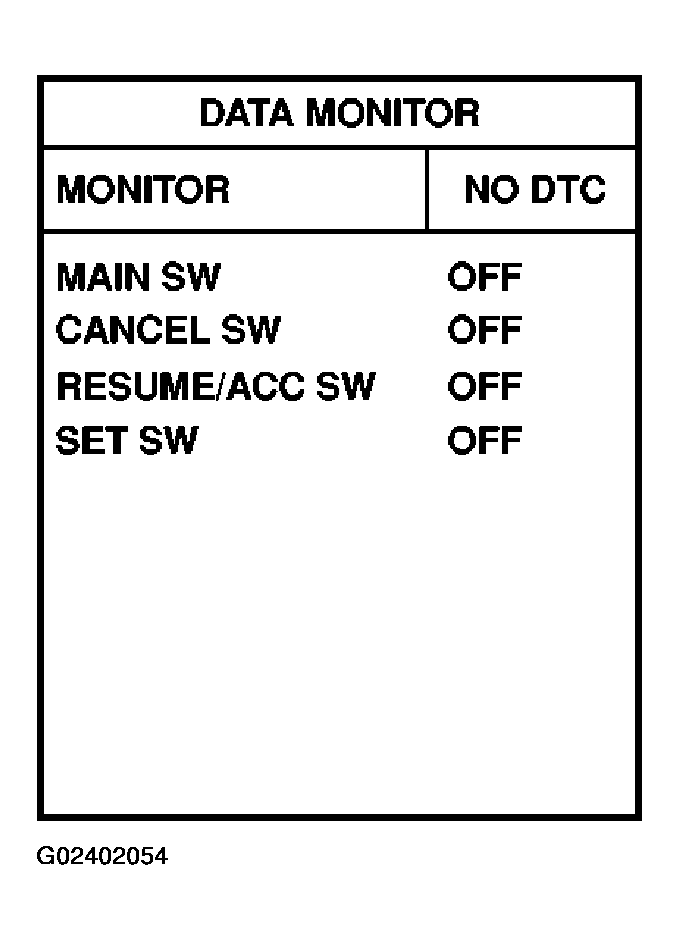

      Fig 3: Scan Tool Display "Data Monitor"
      G02402054Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 99 and ground with pressing each button.

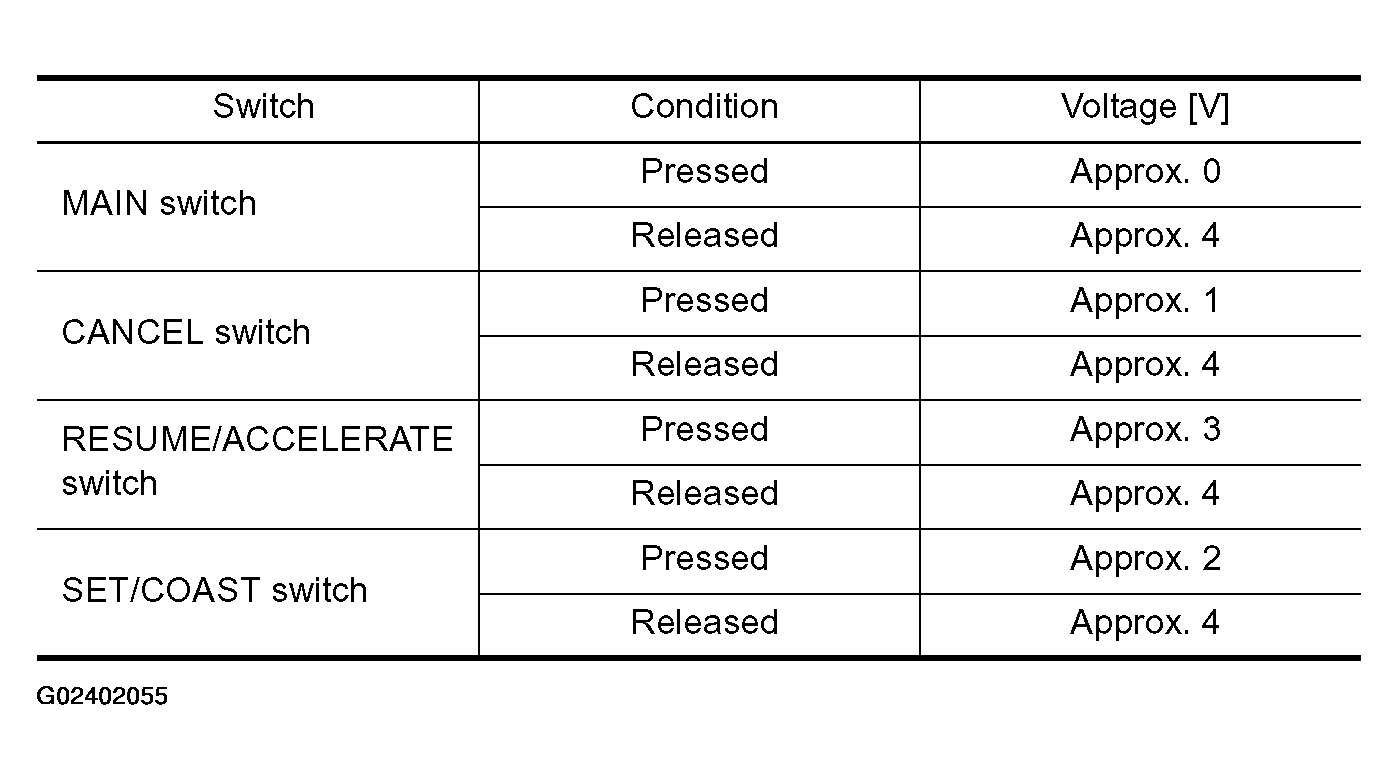

      Fig 4: Switch Condition Voltage Specification Table
      G02402055Courtesy of NISSAN MOTOR CO., U.S.A.

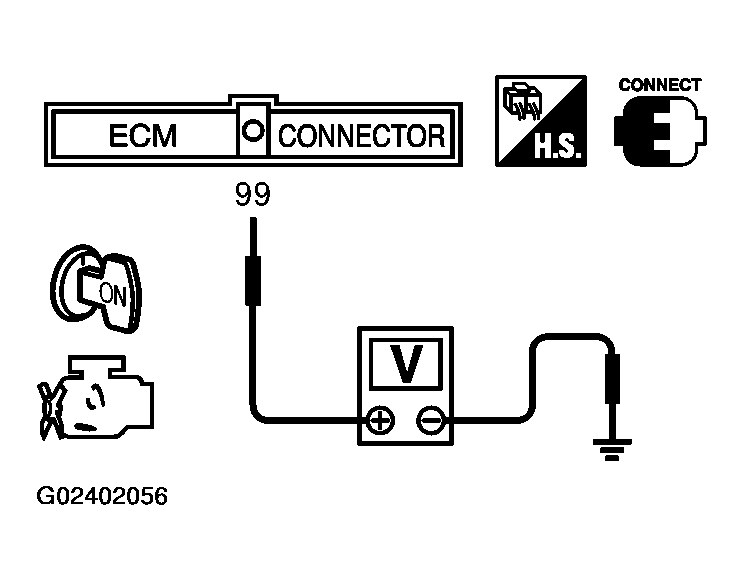

      Fig 5: ECM Connector Terminal 99 & Ground Voltage Test
      G02402056Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  8.
    • NG: GO TO 3.
  3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect combination switch harness connector M203.
    4. Check harness continuity between combination switch terminal 15 and ECM terminal 67. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    5. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M72, F102
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and combination switch
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 99 and combination switch terminal 14. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M72, F102
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and combination switch
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD STEERING SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 8.
    • NG: Replace steering wheel.
  8. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    • : INSPECTION END
