On Board Diagnosis Logic: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

The MIL will not light up for this diagnosis.

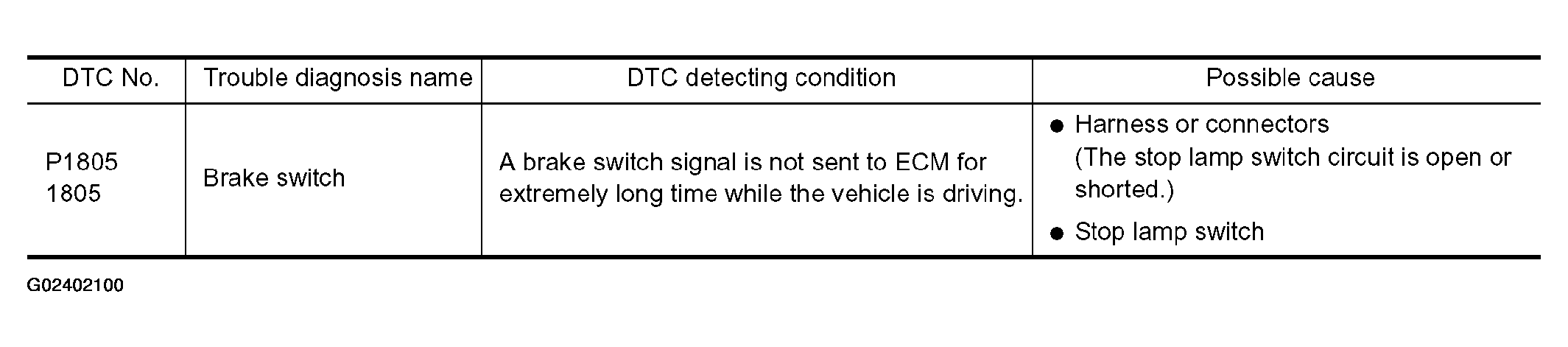

Fig 1: DTC Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
