On Board Diagnosis Logic: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

This self-diagnosis has the one trip detection logic.

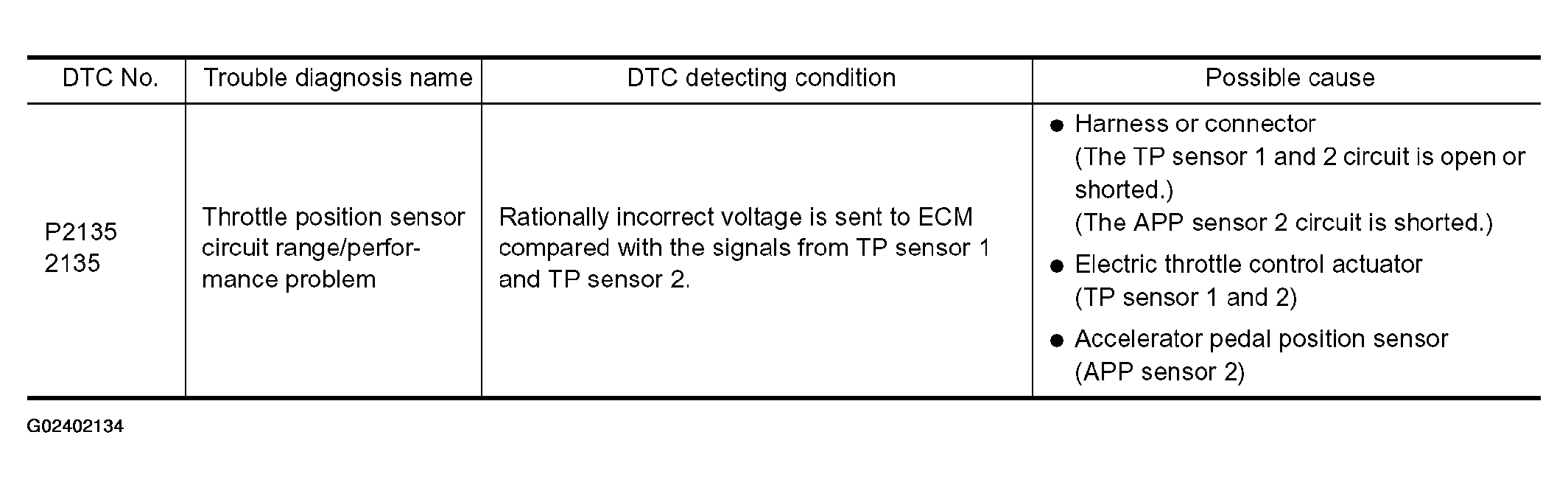

Fig 1: DTC Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
