DIAGNOSTIC TROUBLE CODES No. Index

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

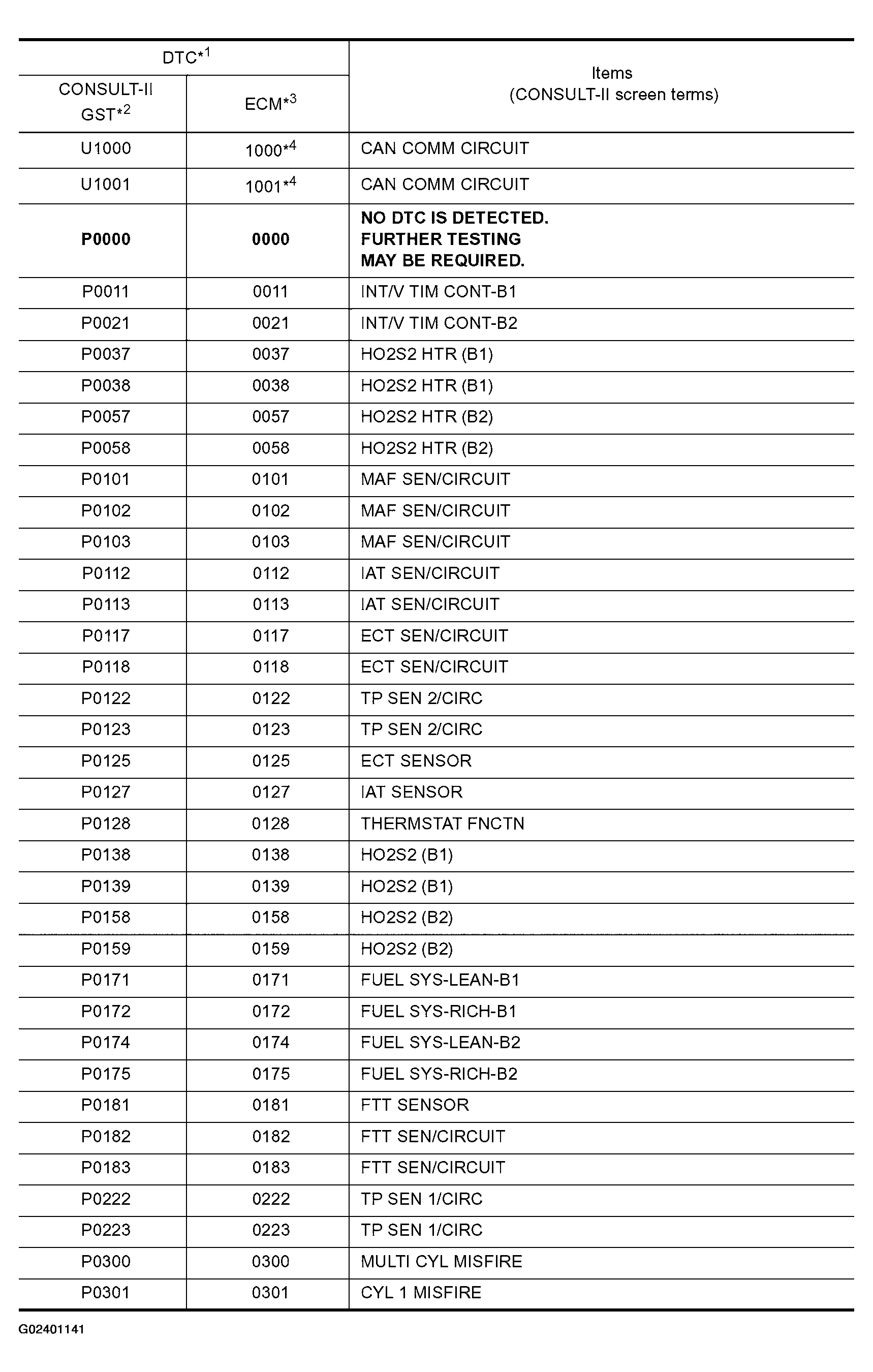

Fig 1: DTC Chart CAN Communication Line (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

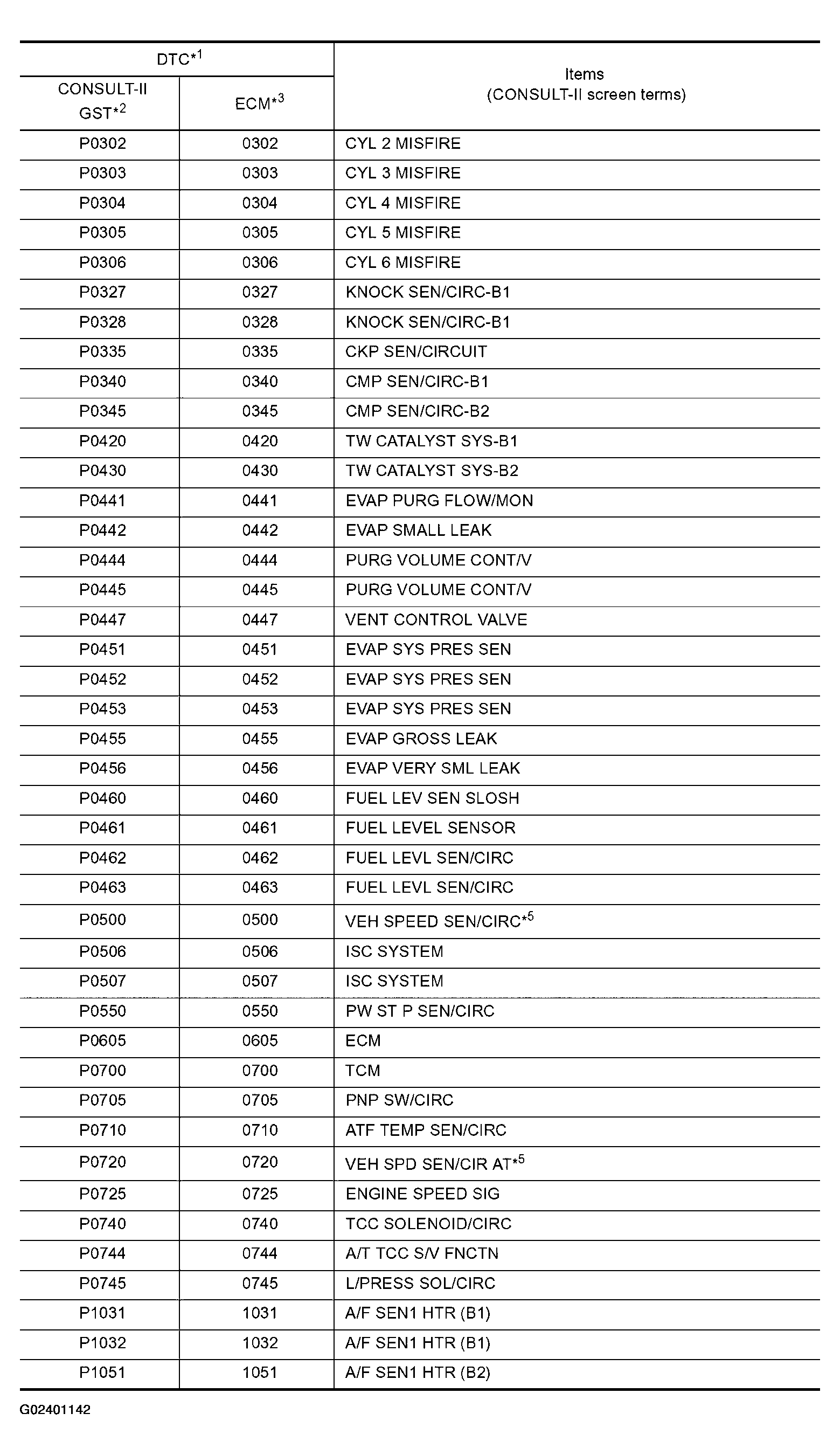

Fig 2: DTC Chart CAN Communication Line (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

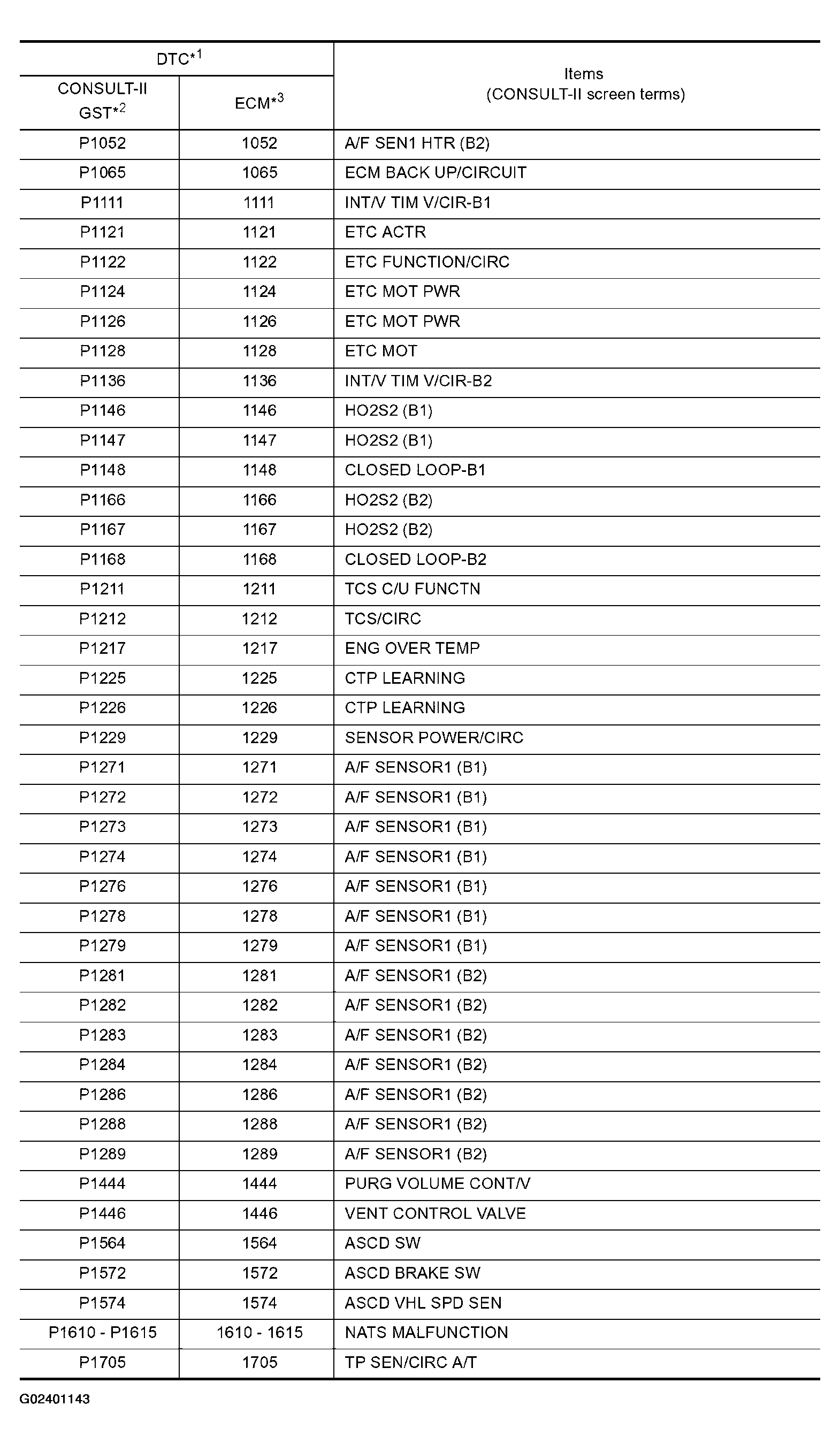

Fig 3: DTC Chart CAN Communication Line (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

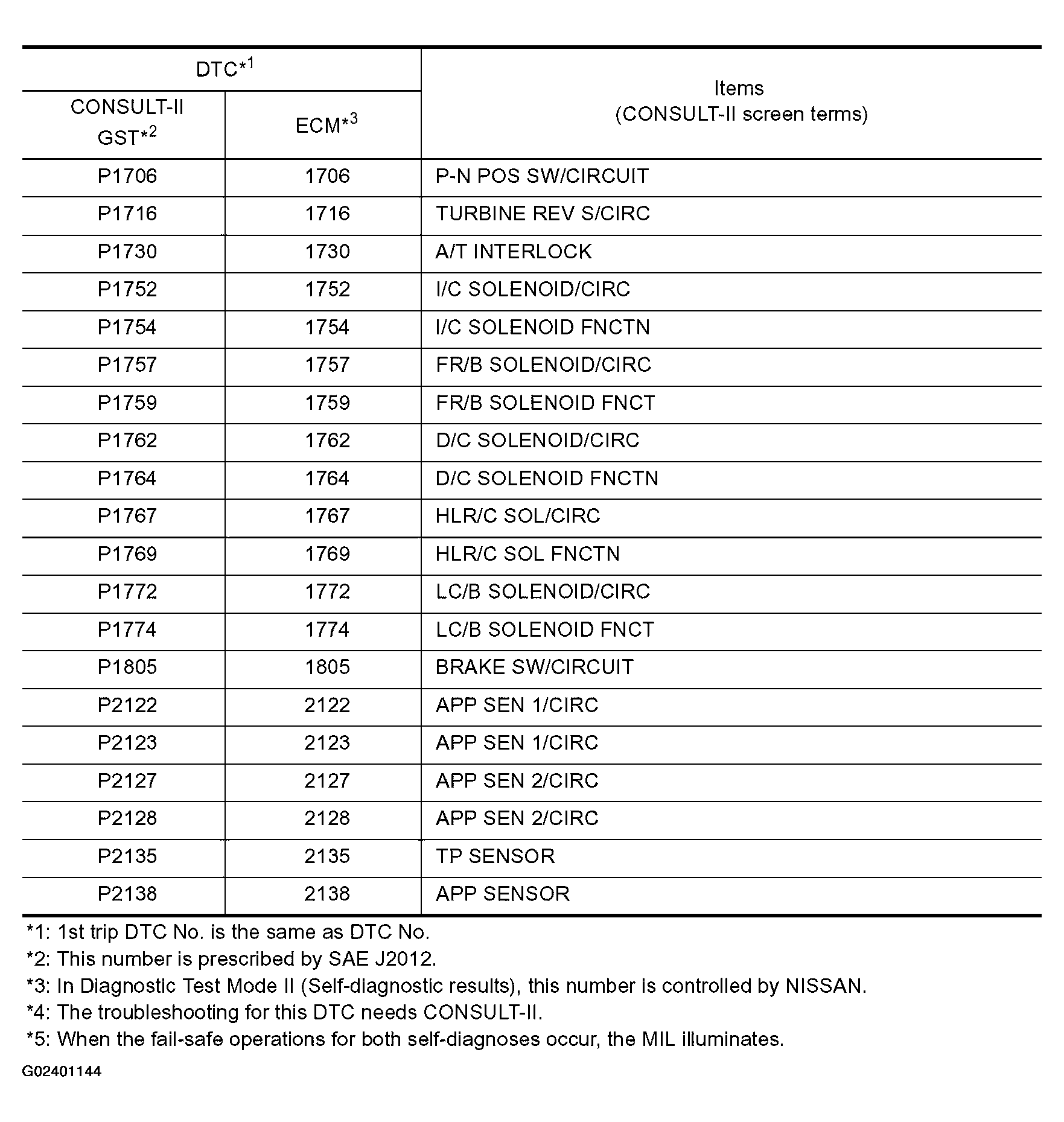

Fig 4: DTC Chart CAN Communication Line (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
