Monitored Item

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

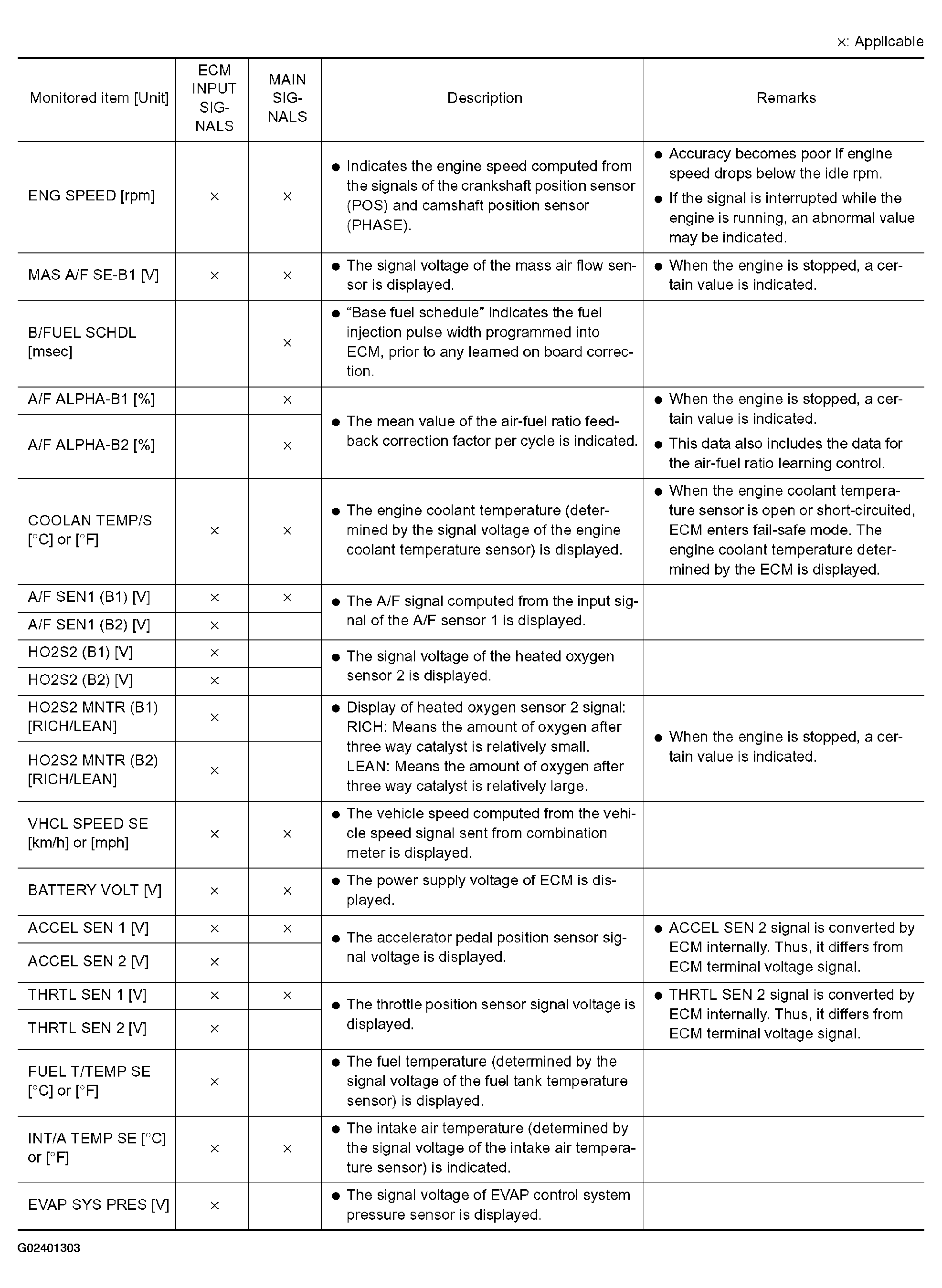

Fig 1: Data Monitor Mode Monitored Item Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

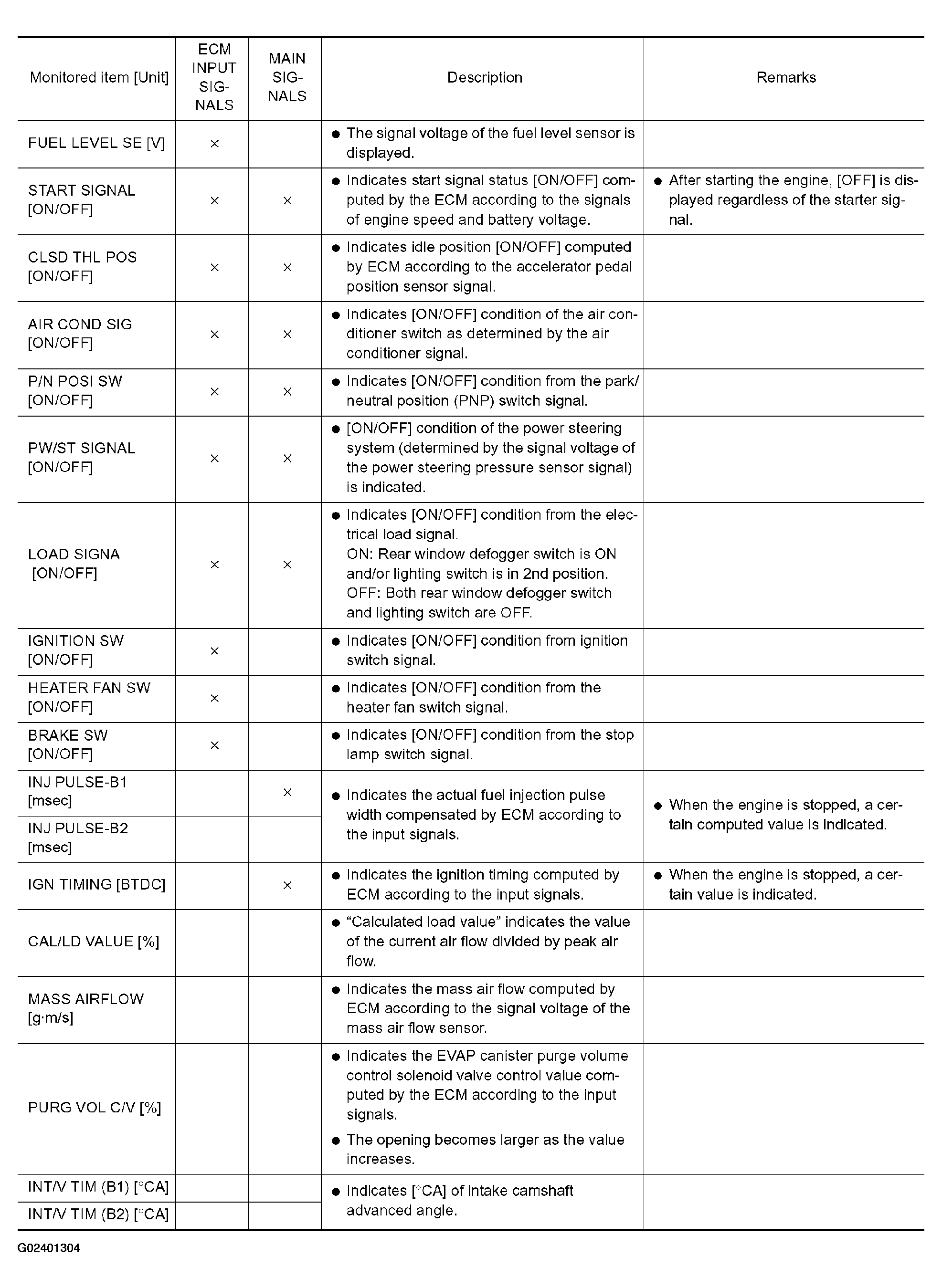

Fig 2: Data Monitor Mode Monitored Item Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

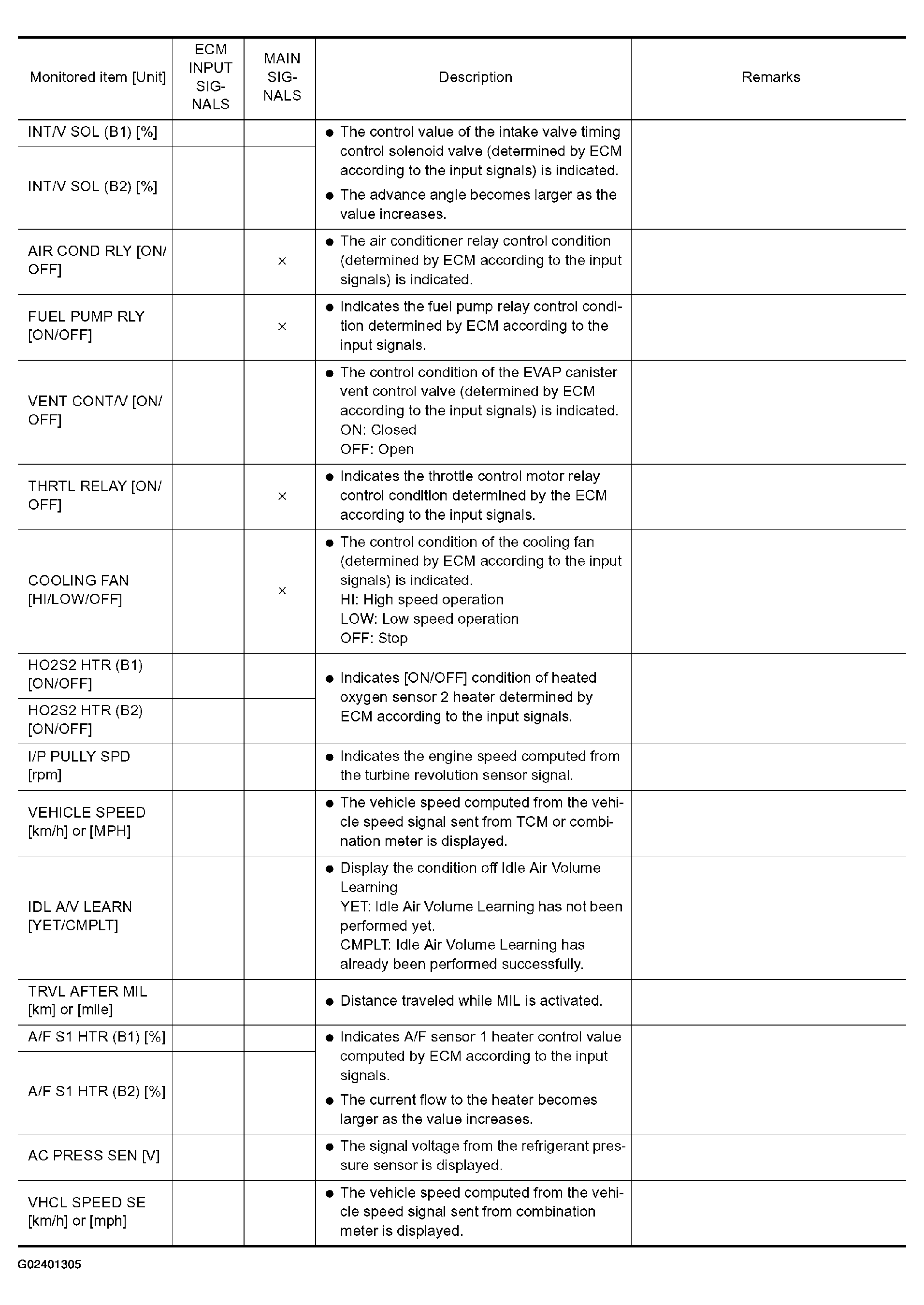

Fig 3: Data Monitor Mode Monitored Item Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

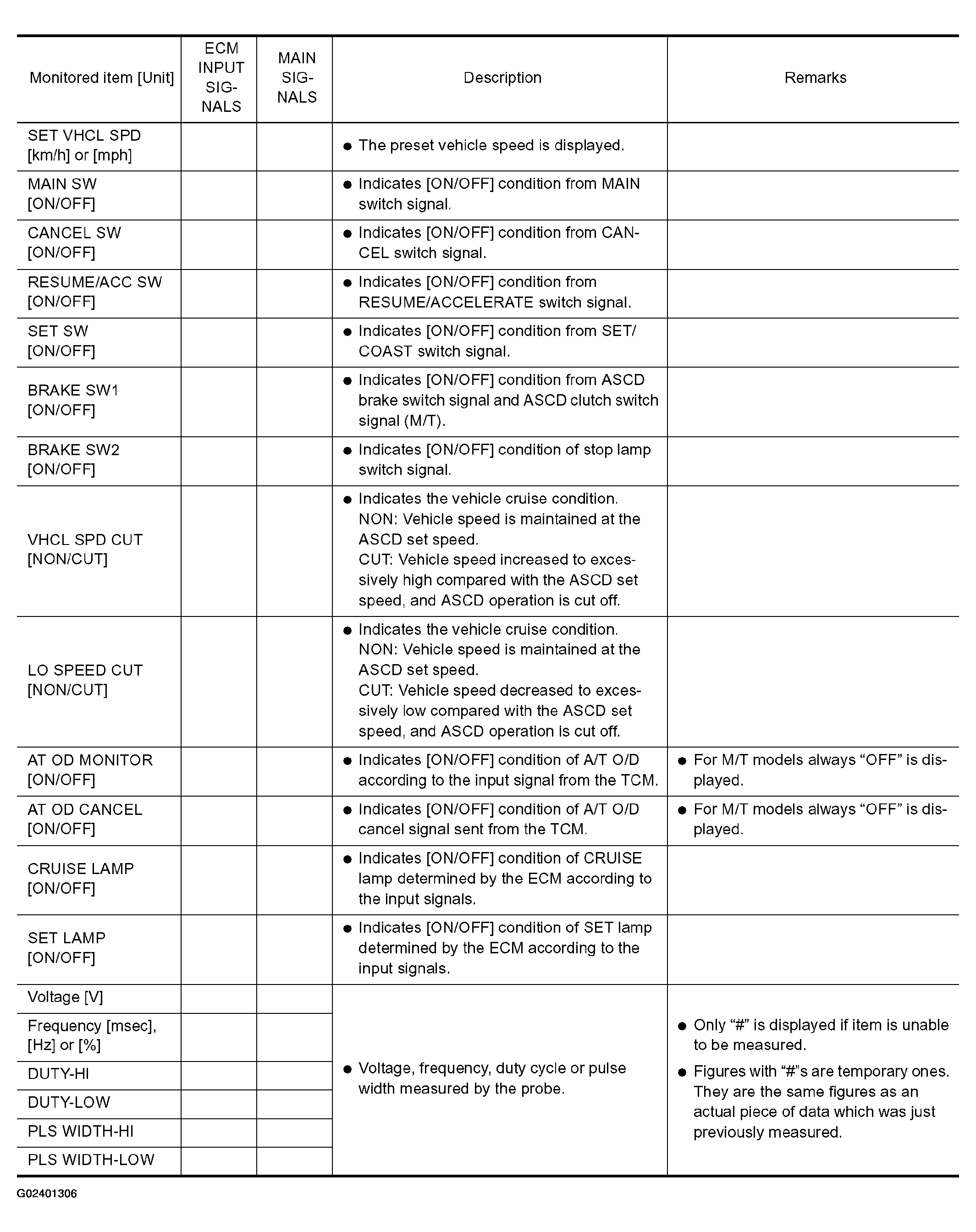

Fig 4: Data Monitor Mode Monitored Item Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
