Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the hood opener handle.
Turn ignition switch ON.

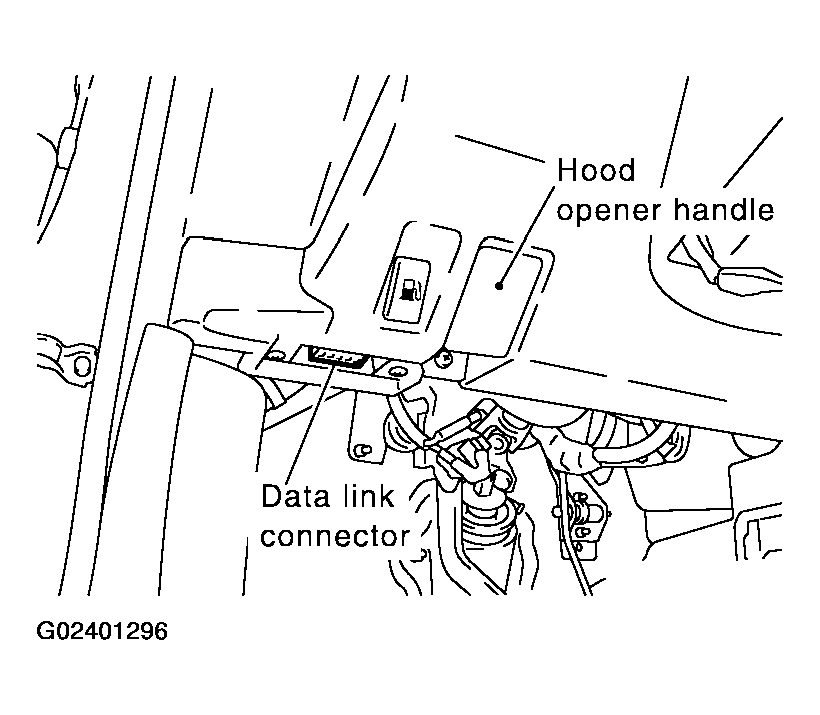

Fig 1: Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

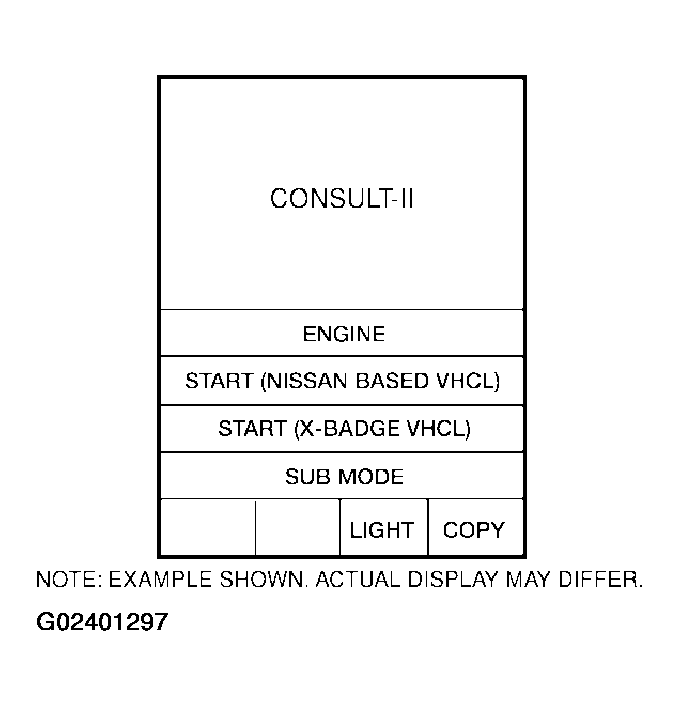

Fig 2: Scan Tool Display "CONSULT-II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

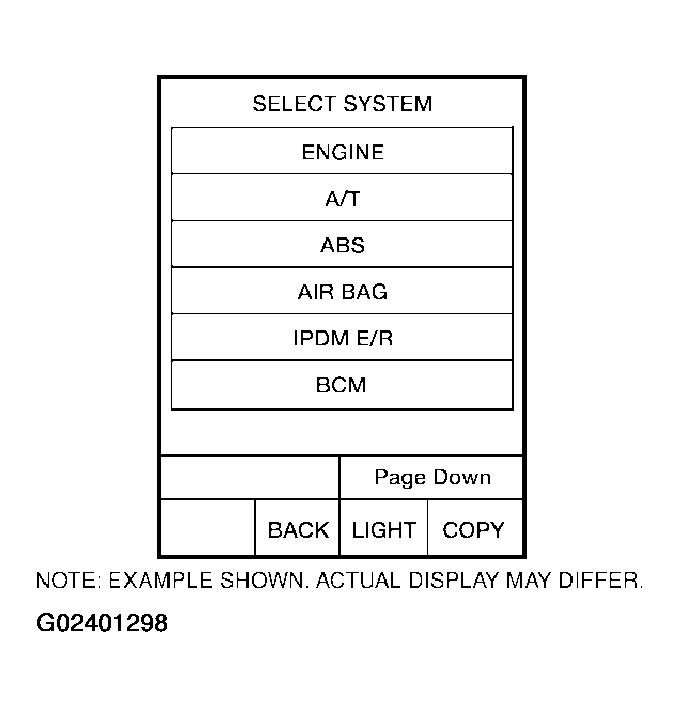

Fig 3: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual.

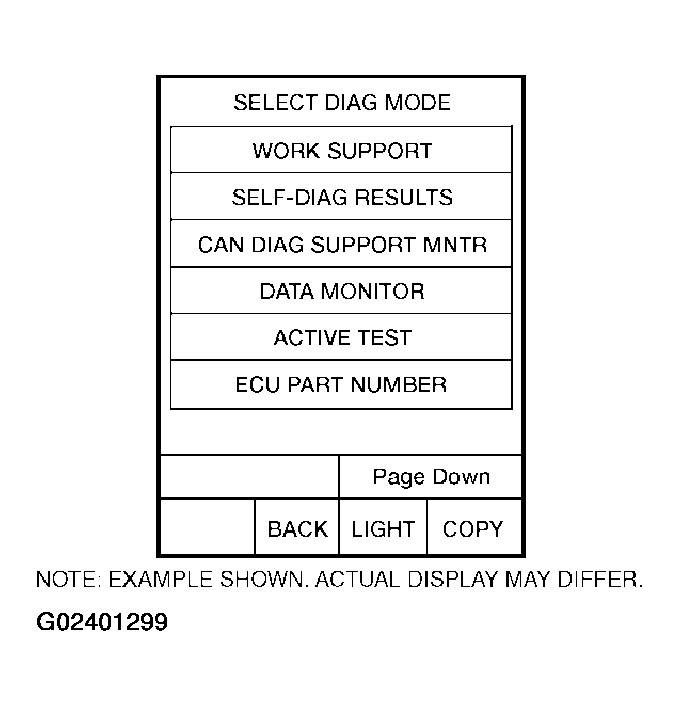

Fig 4: Scan Tool Display "Select DIAG Mode"

Courtesy of NISSAN MOTOR CO., U.S.A.
