ECM Inspection Table

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

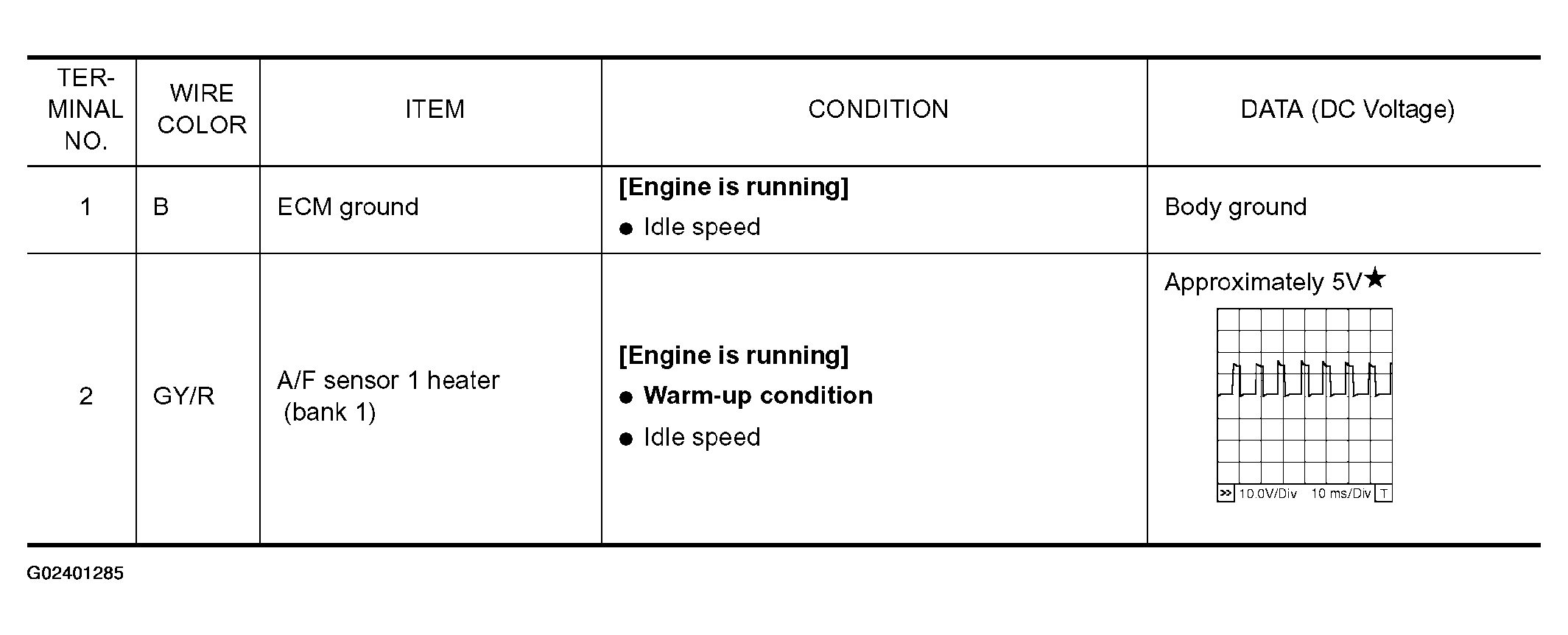

Fig 1: ECM Inspection Table (1 Of 9)

G02401285

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: ECM Inspection Table (2 Of 9)

G02401286

Courtesy of NISSAN MOTOR CO., U.S.A.

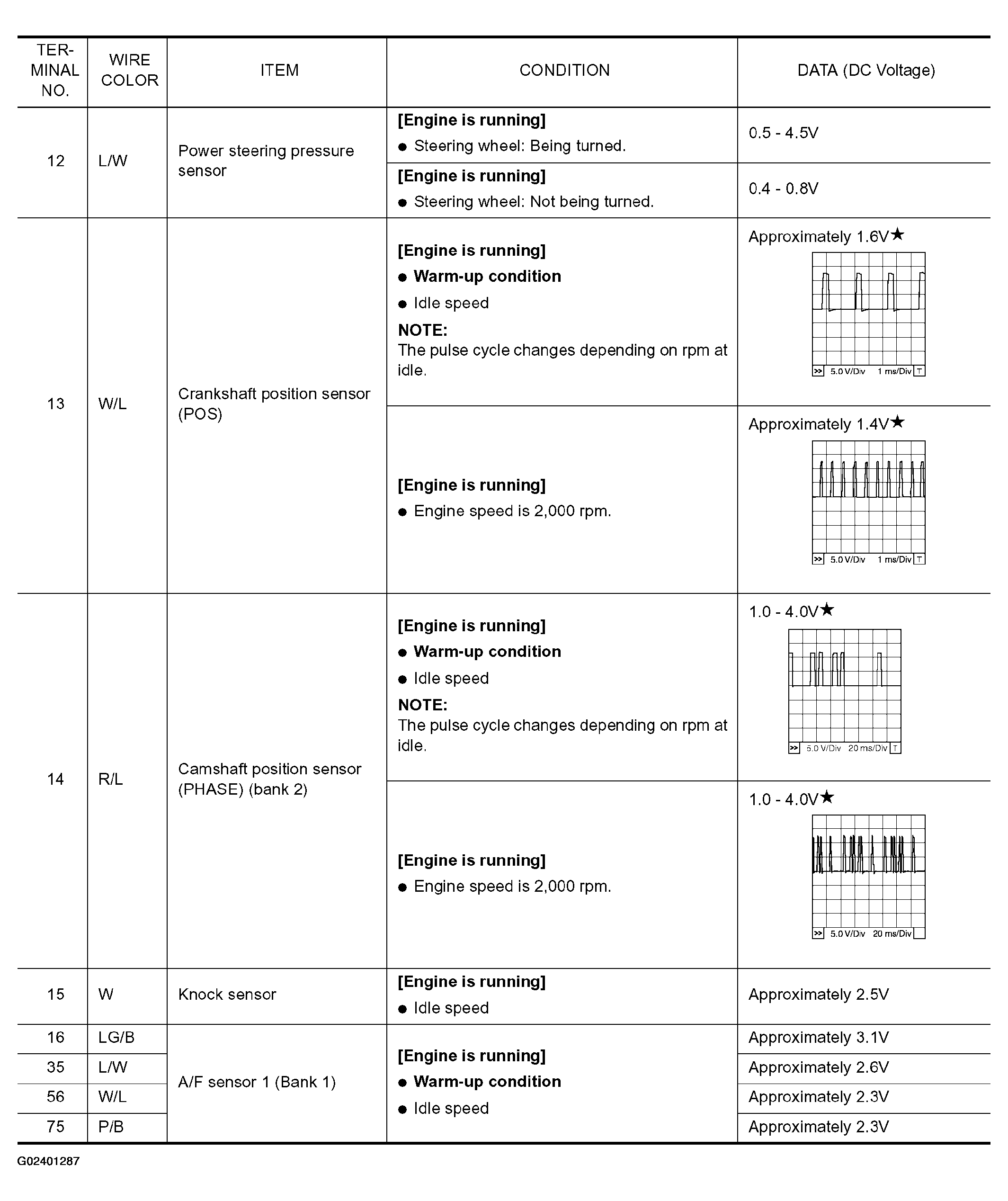

Fig 3: ECM Inspection Table (3 Of 9)

G02401287

Courtesy of NISSAN MOTOR CO., U.S.A.

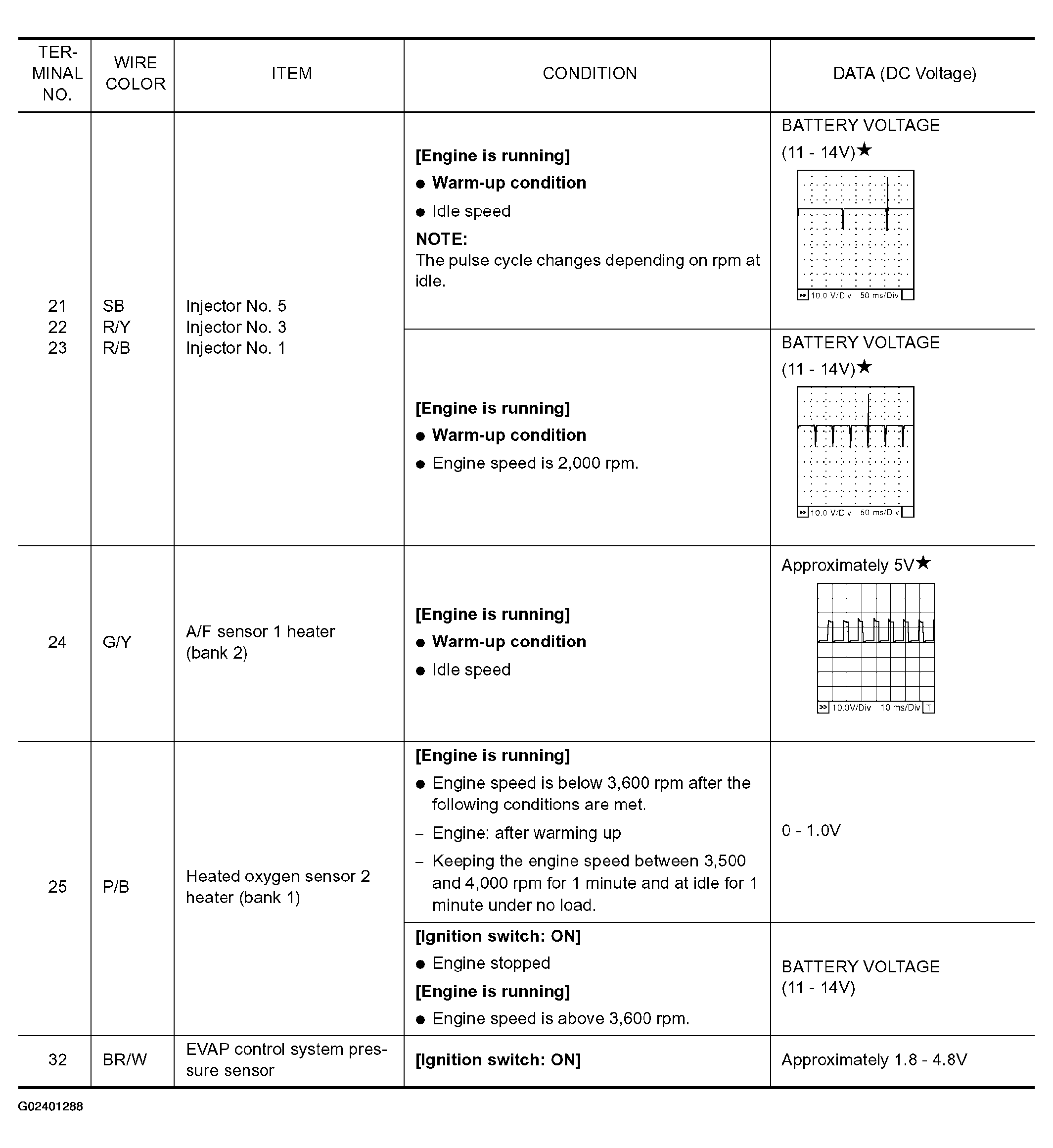

Fig 4: ECM Inspection Table (4 Of 9)

G02401288

Courtesy of NISSAN MOTOR CO., U.S.A.

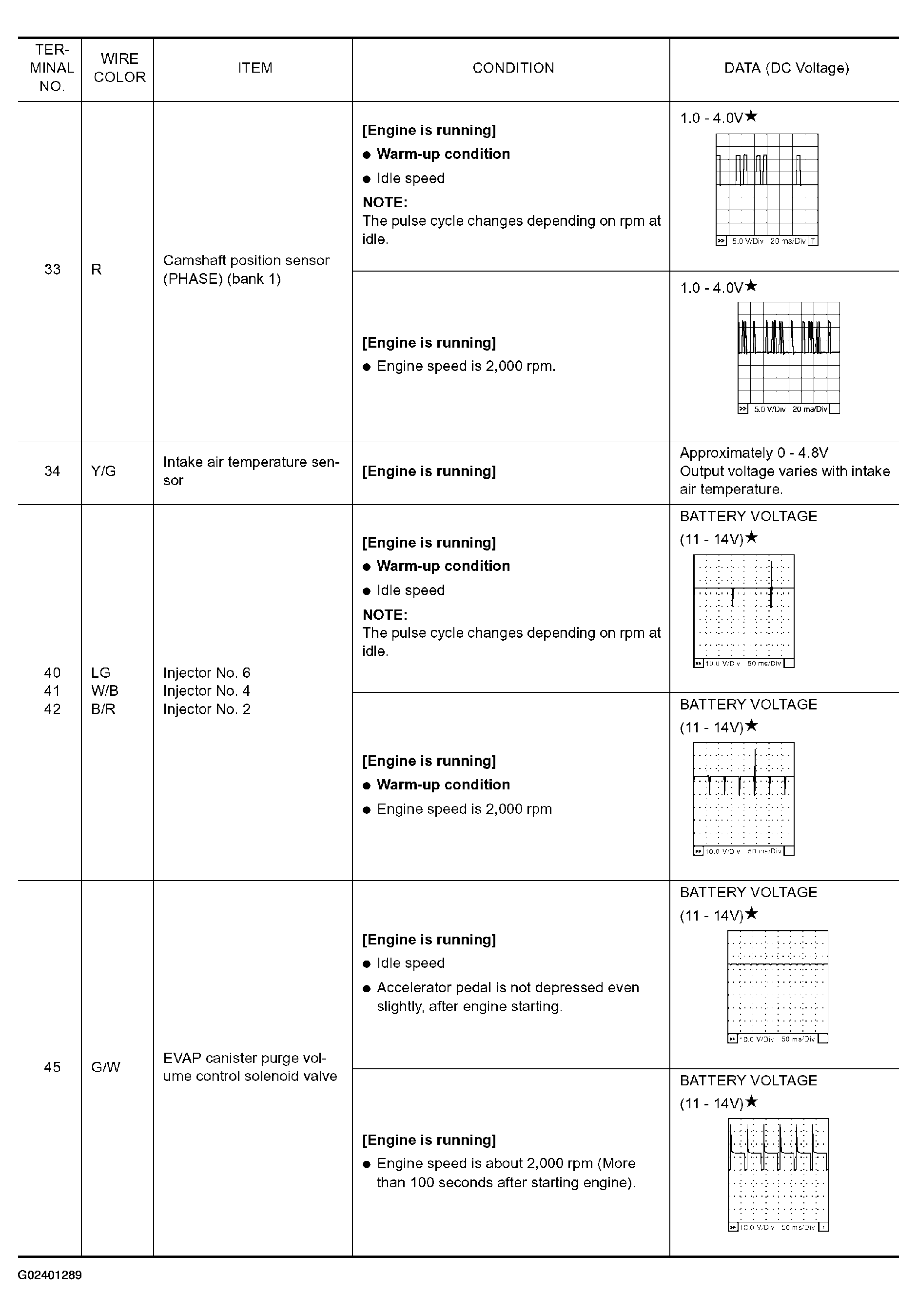

Fig 5: ECM Inspection Table (5 Of 9)

G02401289

Courtesy of NISSAN MOTOR CO., U.S.A.

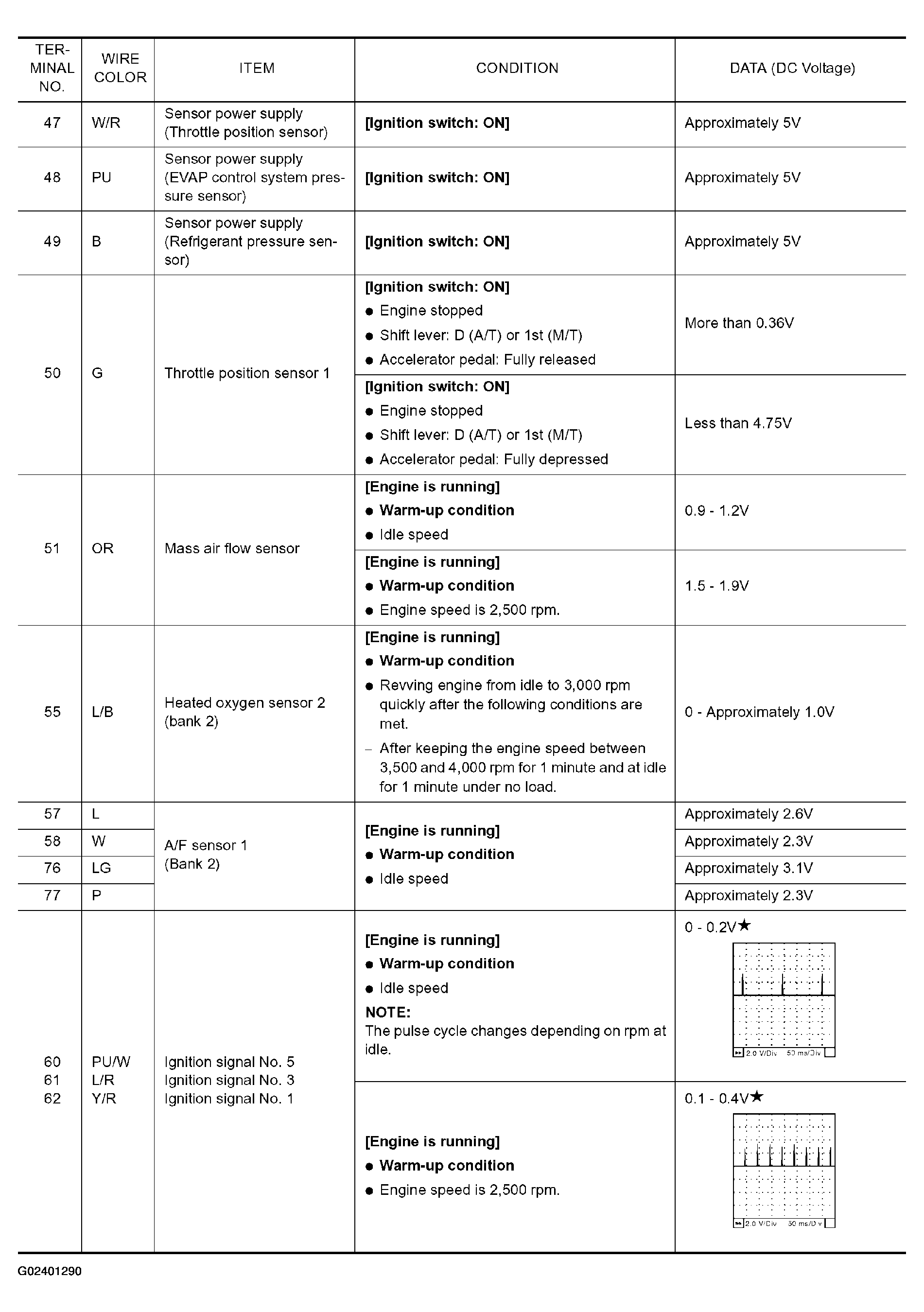

Fig 6: ECM Inspection Table (6 Of 9)

G02401290

Courtesy of NISSAN MOTOR CO., U.S.A.

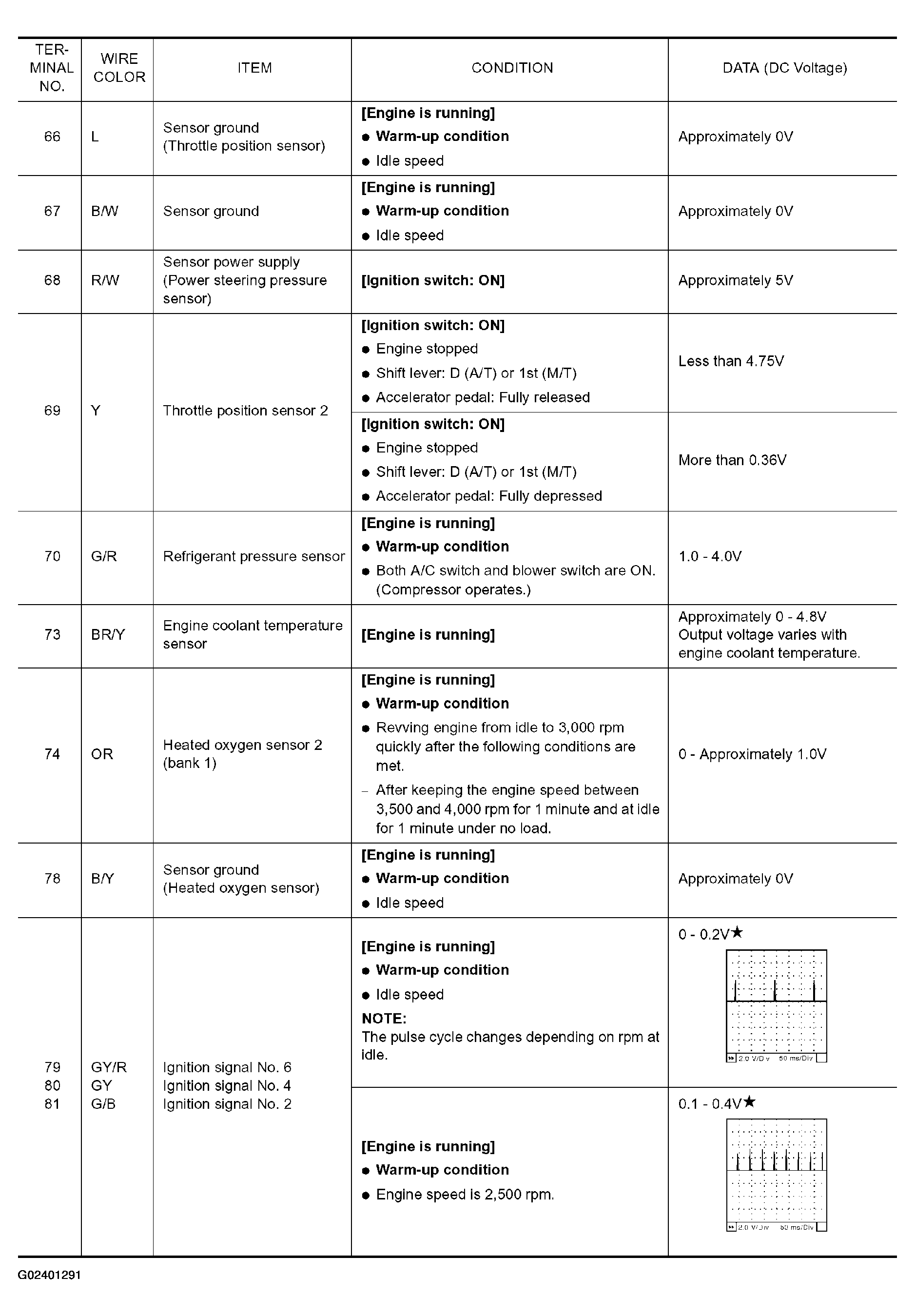

Fig 7: ECM Inspection Table (7 Of 9)

G02401291

Courtesy of NISSAN MOTOR CO., U.S.A.

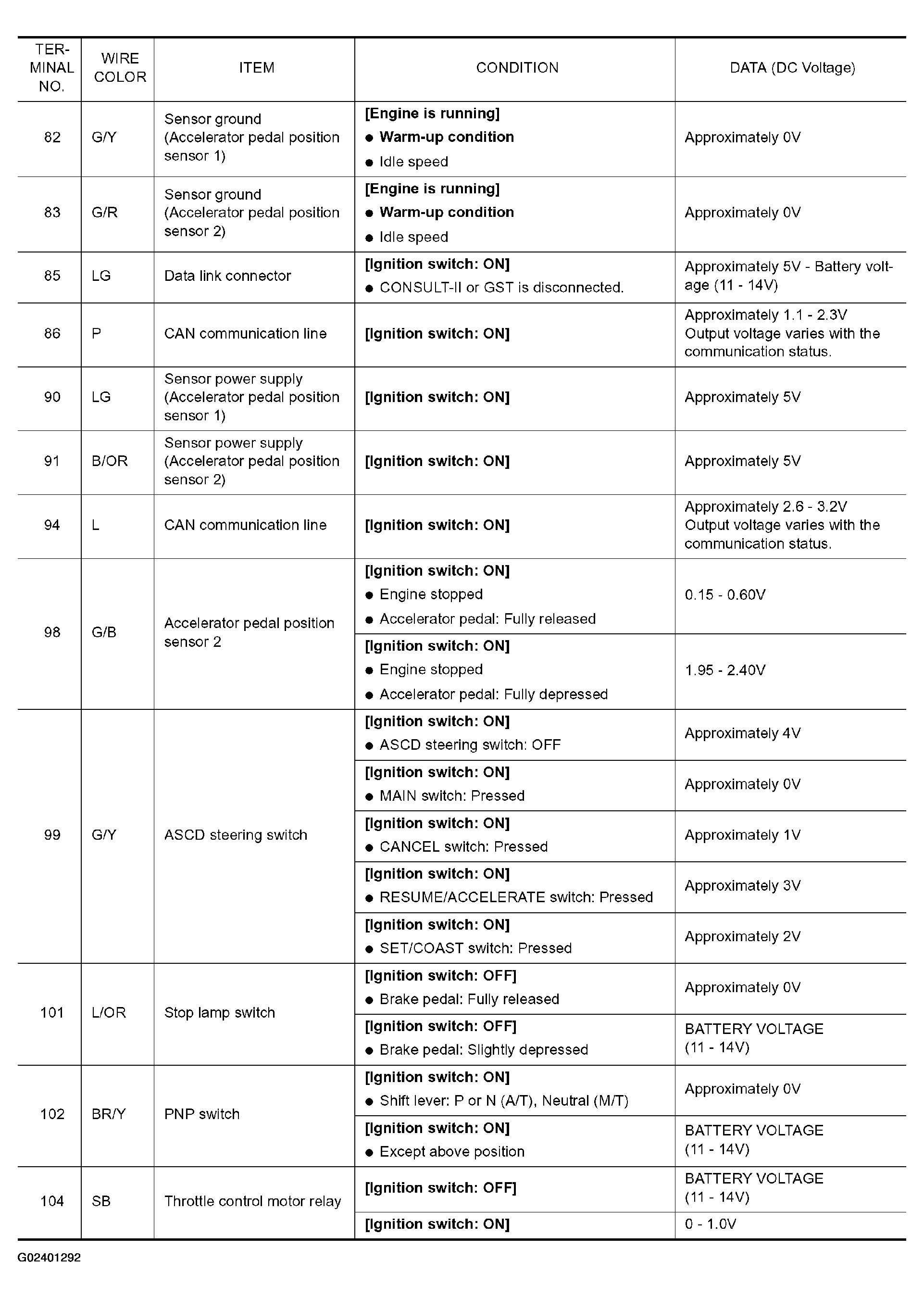

Fig 8: ECM Inspection Table (8 Of 9)

G02401292

Courtesy of NISSAN MOTOR CO., U.S.A.

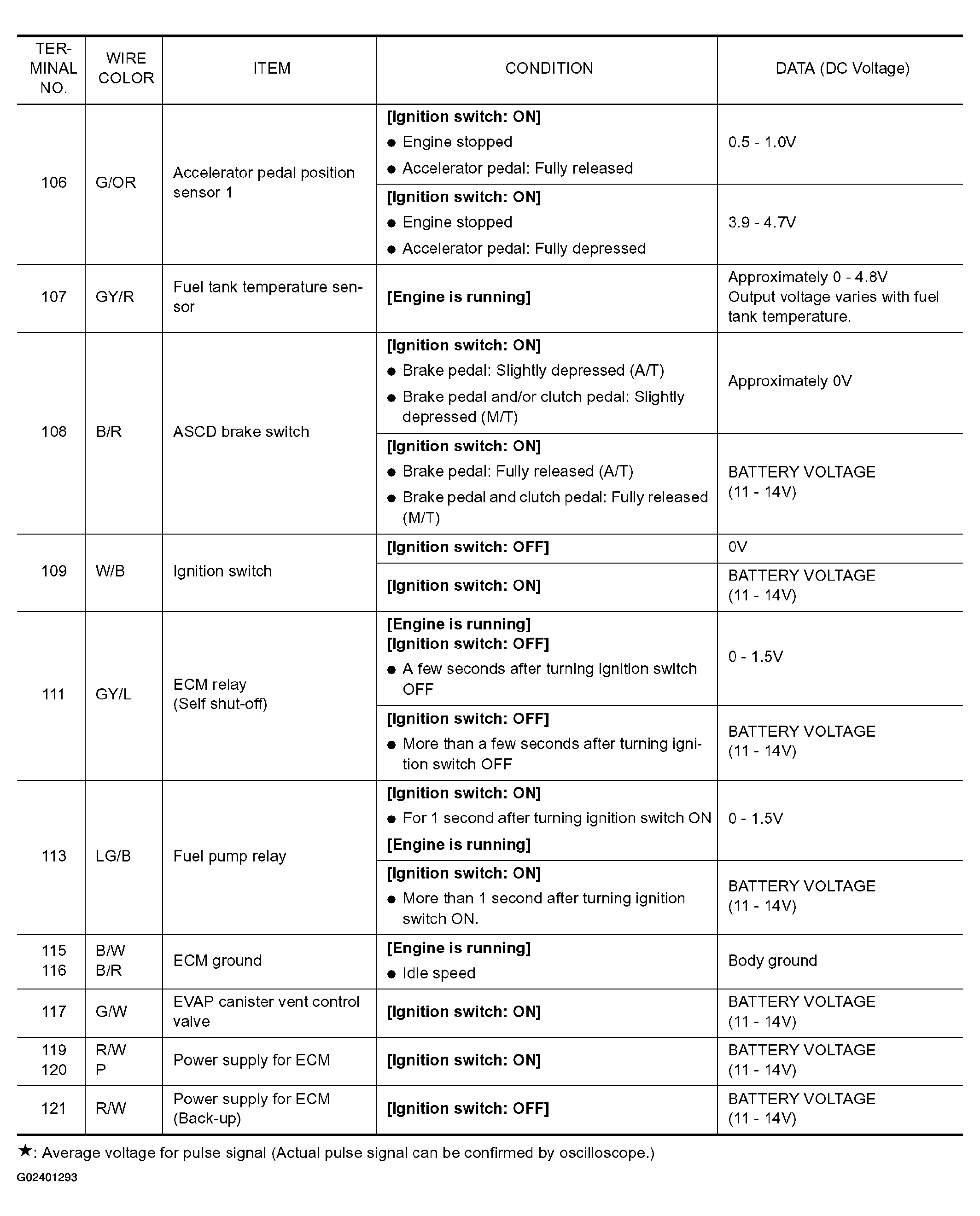

Fig 9: ECM Inspection Table (9 Of 9)

G02401293

Courtesy of NISSAN MOTOR CO., U.S.A.
