Engine Control Component Parts Location

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

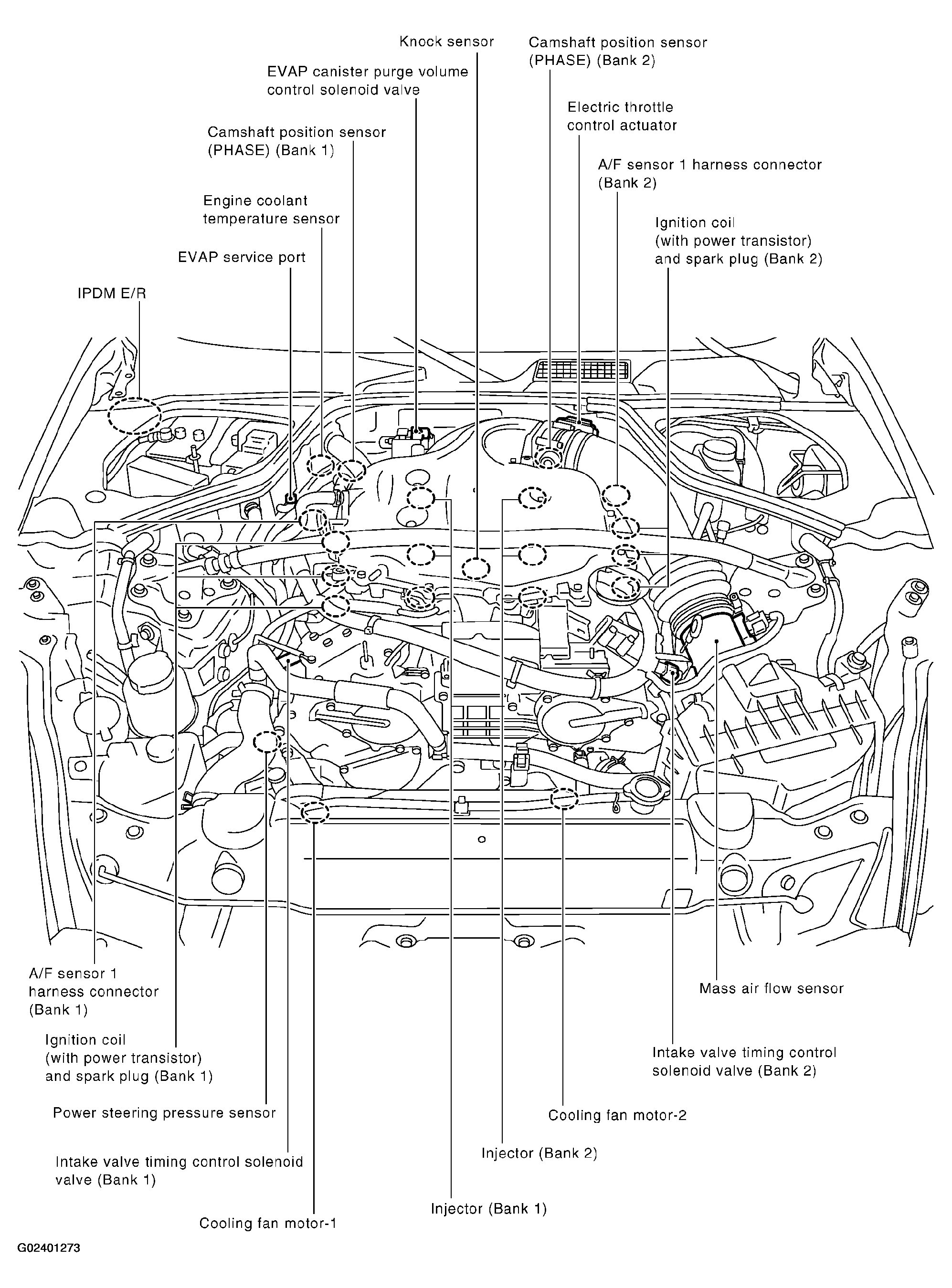

Fig 1: Engine Control Component (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

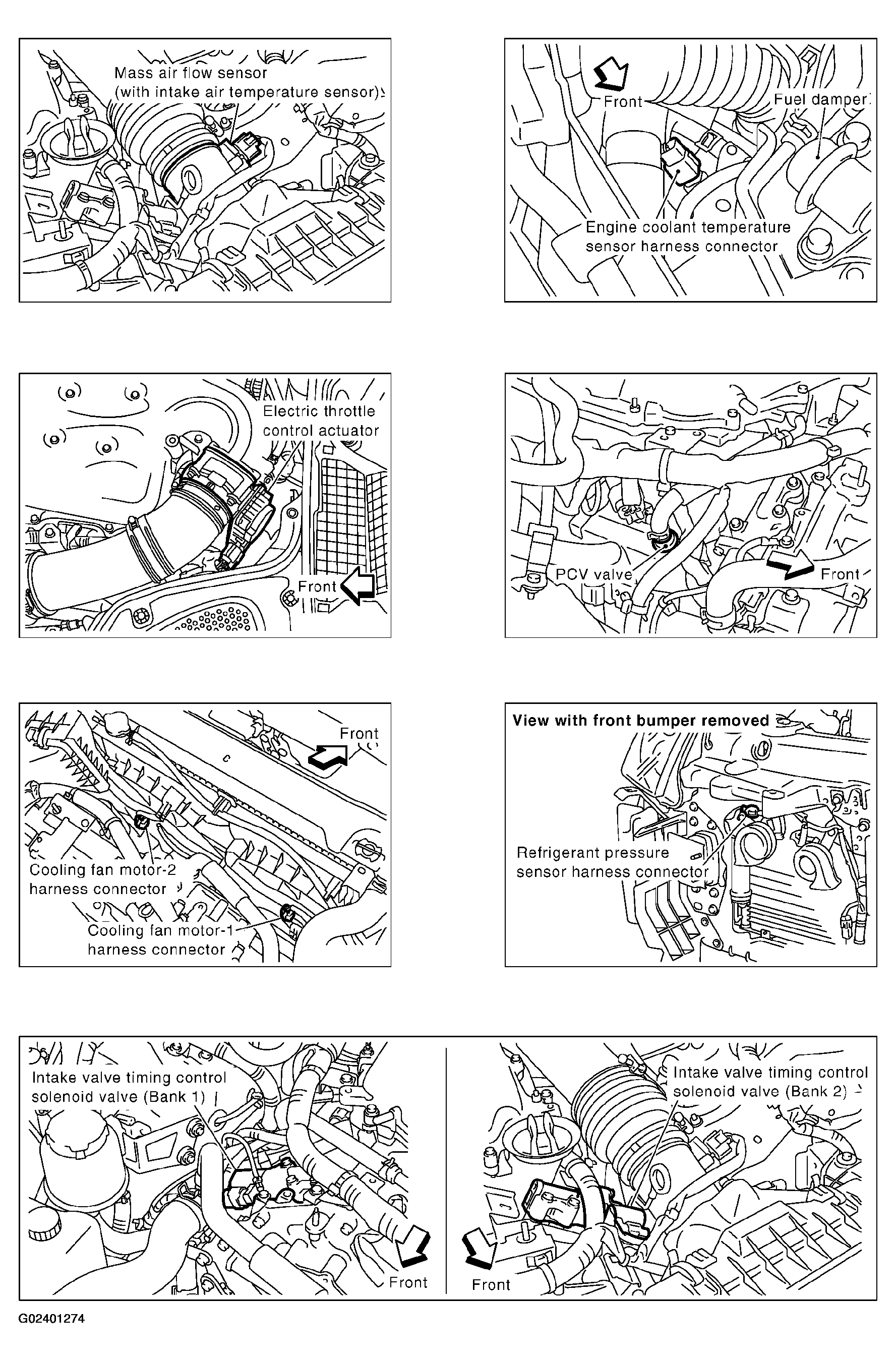

Fig 2: Engine Control Component (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

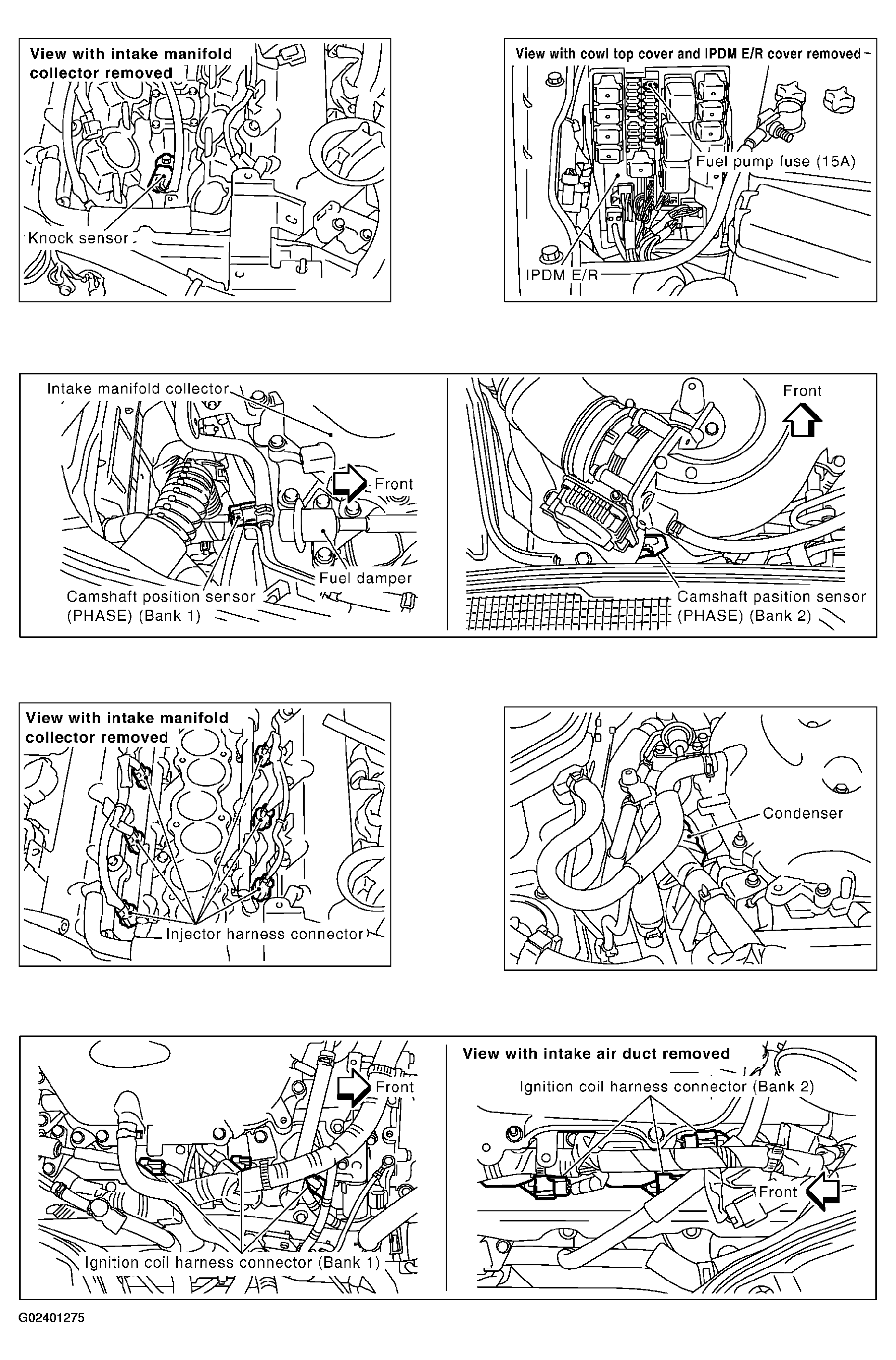

Fig 3: Engine Control Component (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

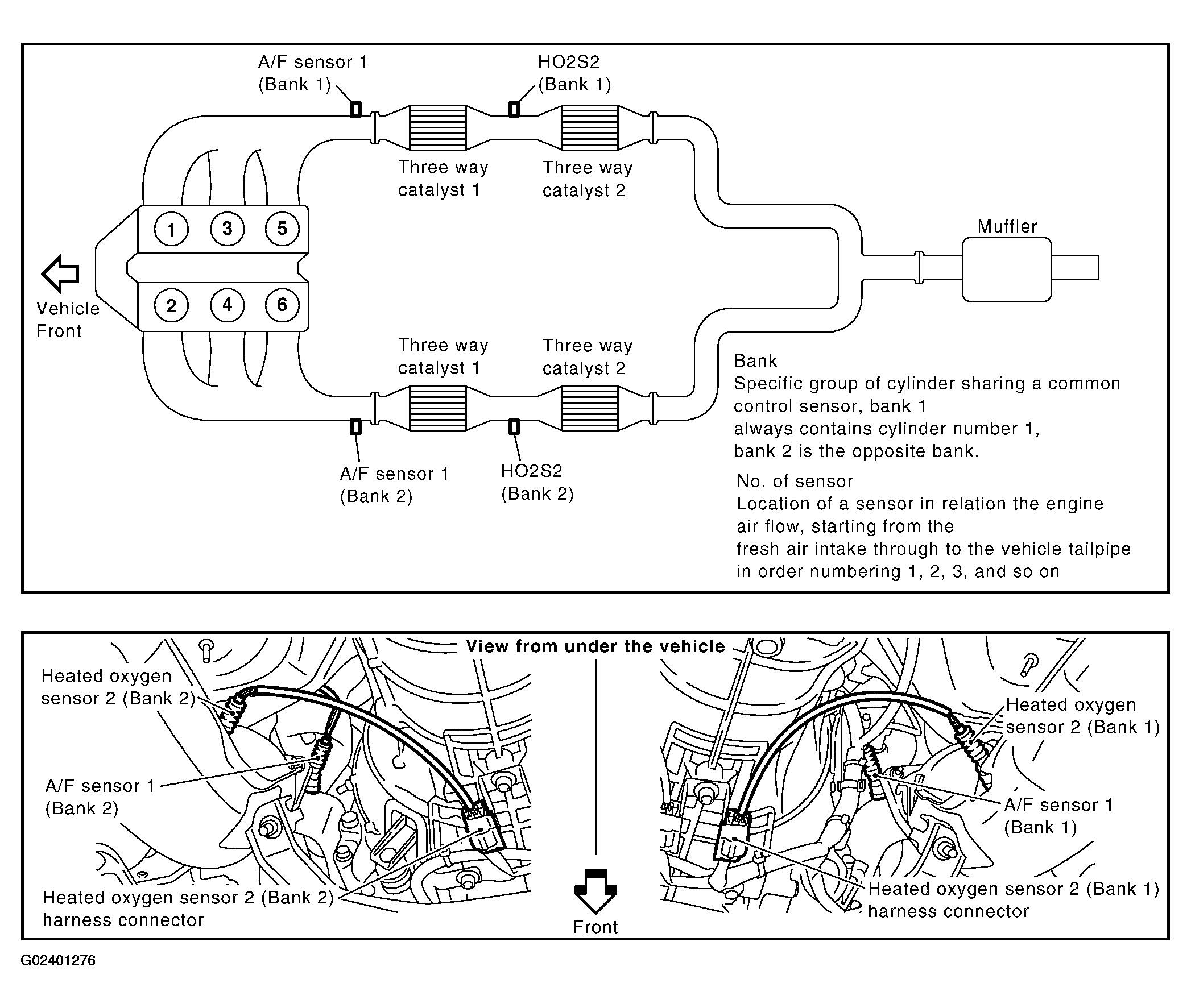

Fig 4: Engine Control Component (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

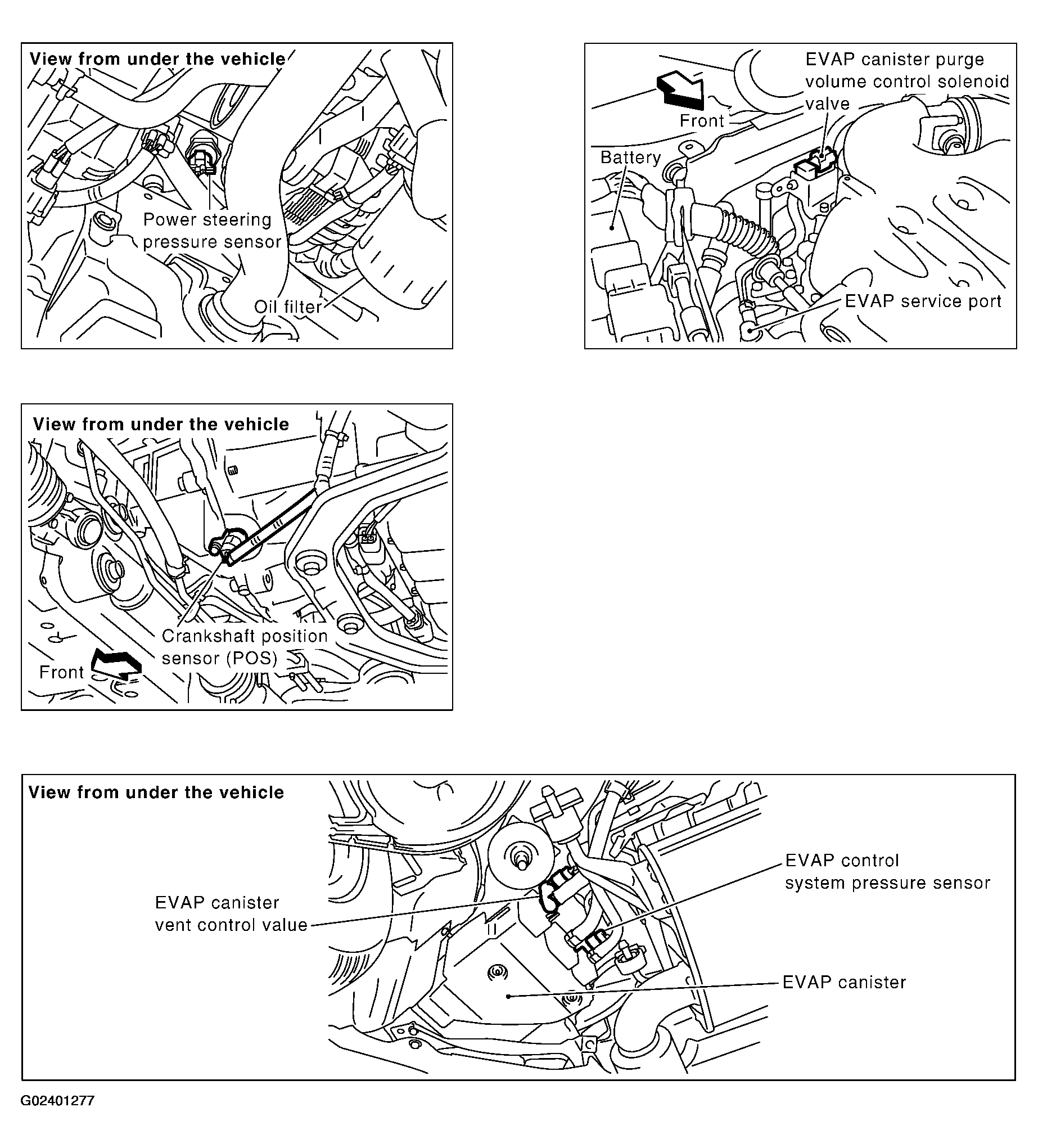

Fig 5: Engine Control Component (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

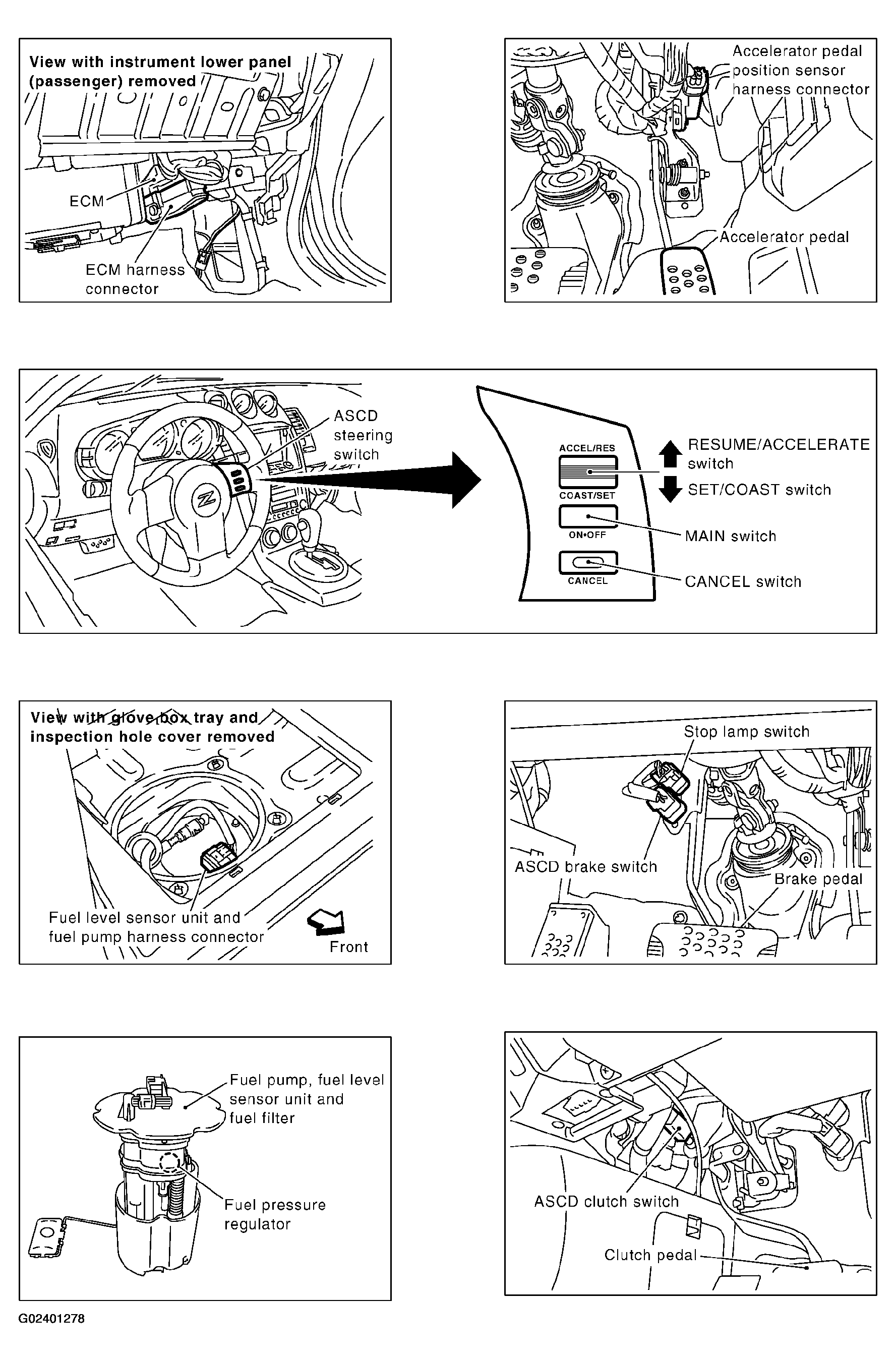

Fig 6: Engine Control Component (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
