Front Wheel Hub And Knuckle: Removal: Installation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Refer to REMOVAL AND INSTALLATION for tightening torque. Install in the reverse order of removal.
NOTE: Refer to component parts location and do not reuse non-reusable parts.
Wheel hub and bearing assembly and disc must be installed to fit the marked position each other.

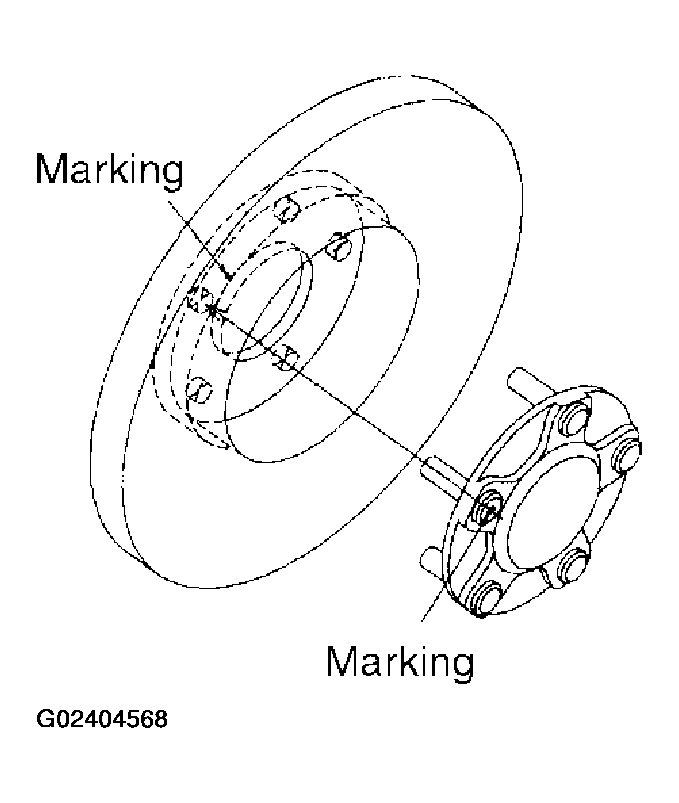

Fig 1: Installing Wheel Hub And Bearing Assembly And Disc
Courtesy of NISSAN MOTOR CO., U.S.A.
