ABS Motor

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON", "OFF" on the display screen and make sure the ABS motor relay is operating as shown in ABS MOTOR RELAY OPERATION - TCS/ABS table below.

ABS MOTOR RELAY OPERATION - TCS/ABS

Operation	ON	OFF
MOTOR RELAY	ON	OFF
ACTUATOR RLY	ON	ON

NOTE:

When the active test is conducted while depressing the pedal, the pedal depression amount will change, but this is normal.
Approximately 10 seconds after the operation is begun, "TEST STOP" will be displayed.

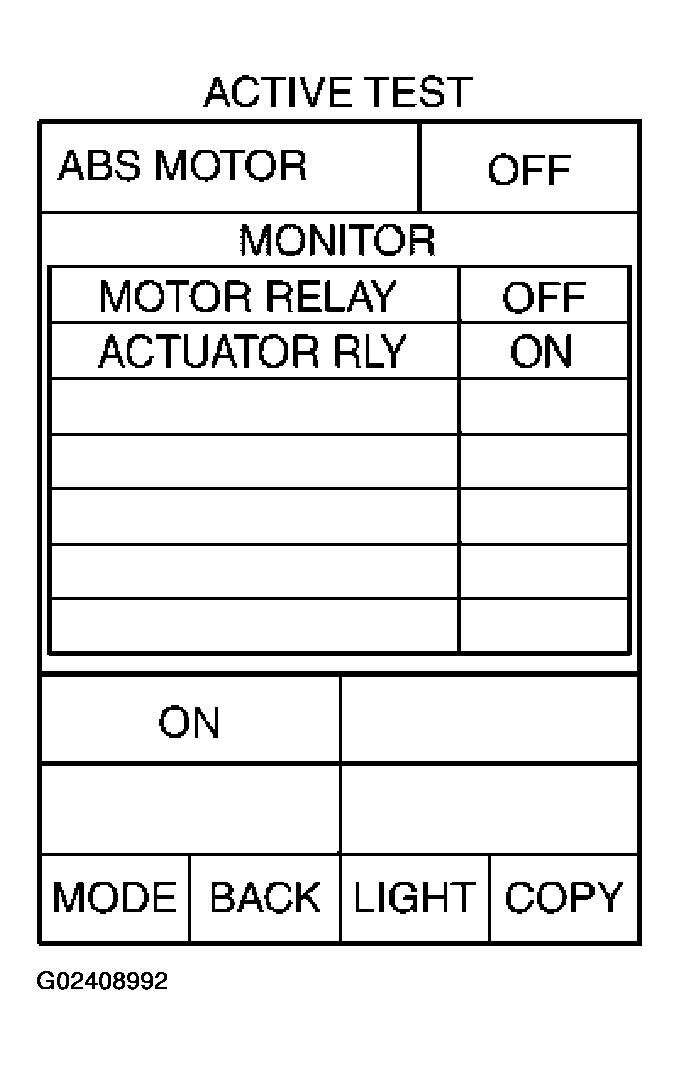

Fig 1: CONSULT-II Display - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.
