Data Monitor

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Operation Procedure

After turning OFF the ignition switch, connect CONSULT-II and the CONVERTER to the data link connector.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
Touch "START (NISSAN BASED VHCL)", "ABS", "DATA MONITOR" in order on the CONSULT-II screen. If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
CAUTION: When "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning on the ignition switch, "ABS" might not be displayed in the system selection screen. In this case, repeat the operation from step 2.
Return to the Monitor Item Selection screen, and touch "ECU INPUT SIGNALS" or "MAIN SIGNALS" or "SELECTION FROM MENU". Refer to the following information.
When "START" is touched, the data monitor screen is displayed.

Display Item List

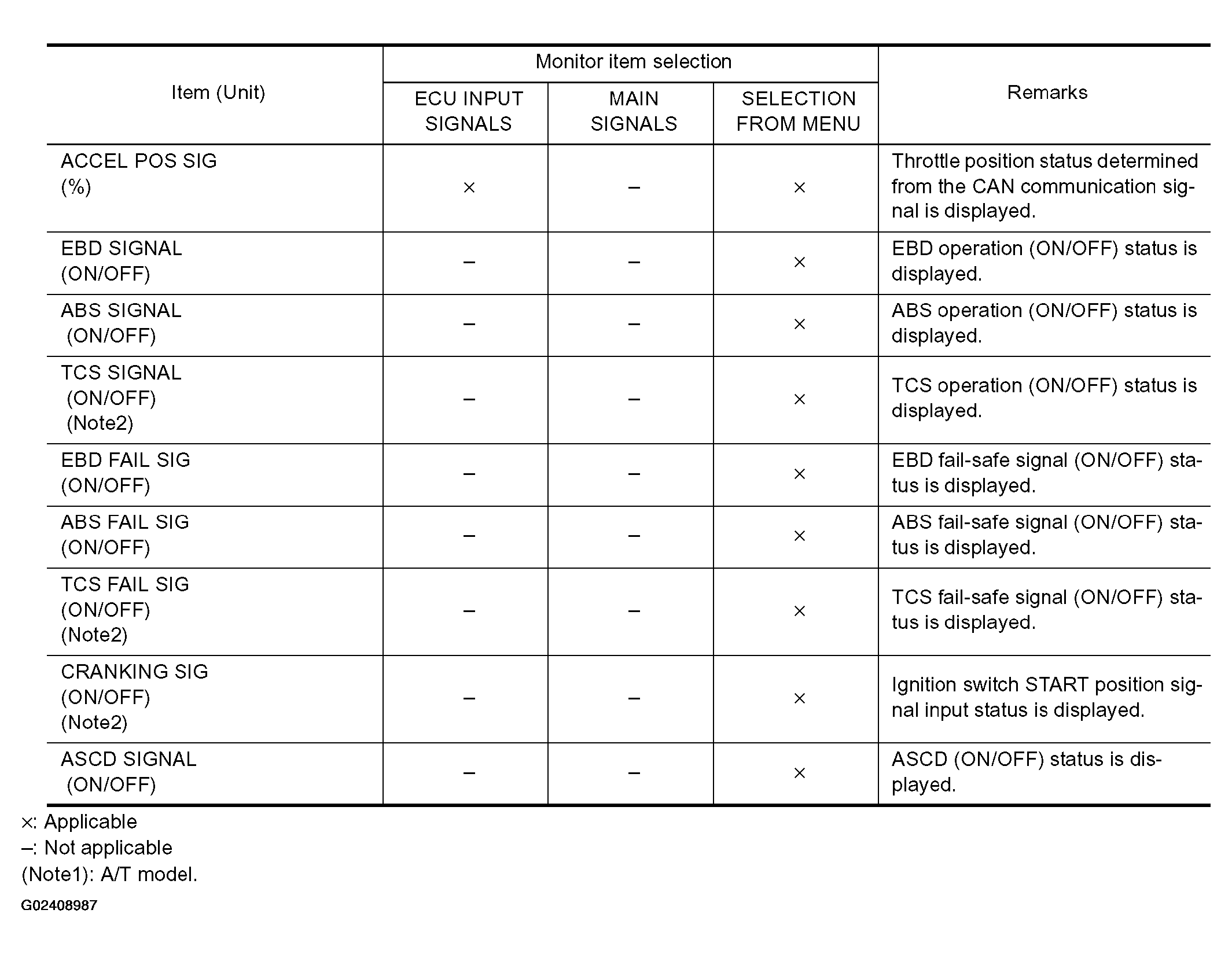

Fig 1: Display Item List - Monitored Items, TCS/ABS (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

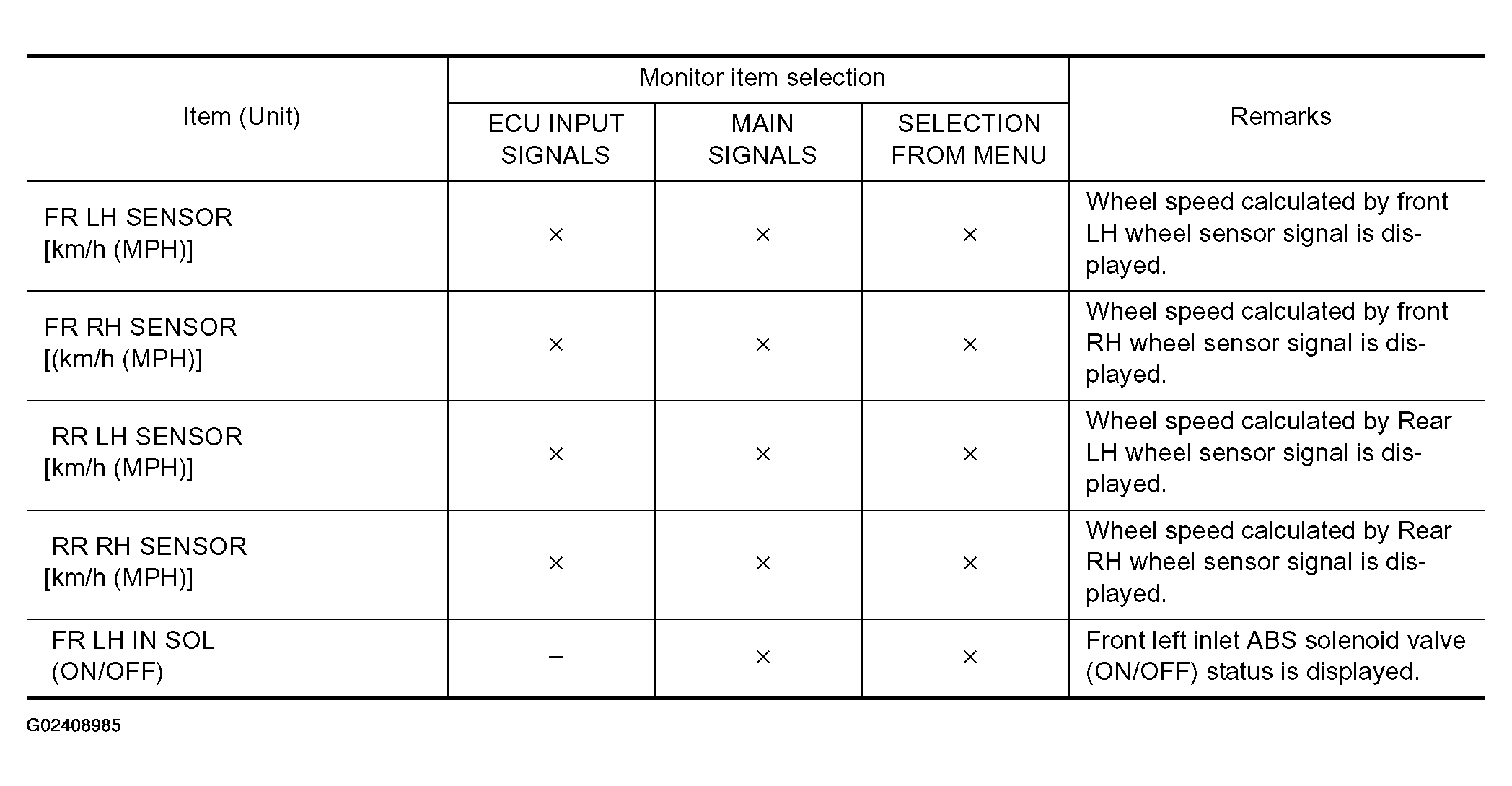

Fig 2: Display Item List - Monitored Items, TCS/ABS (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

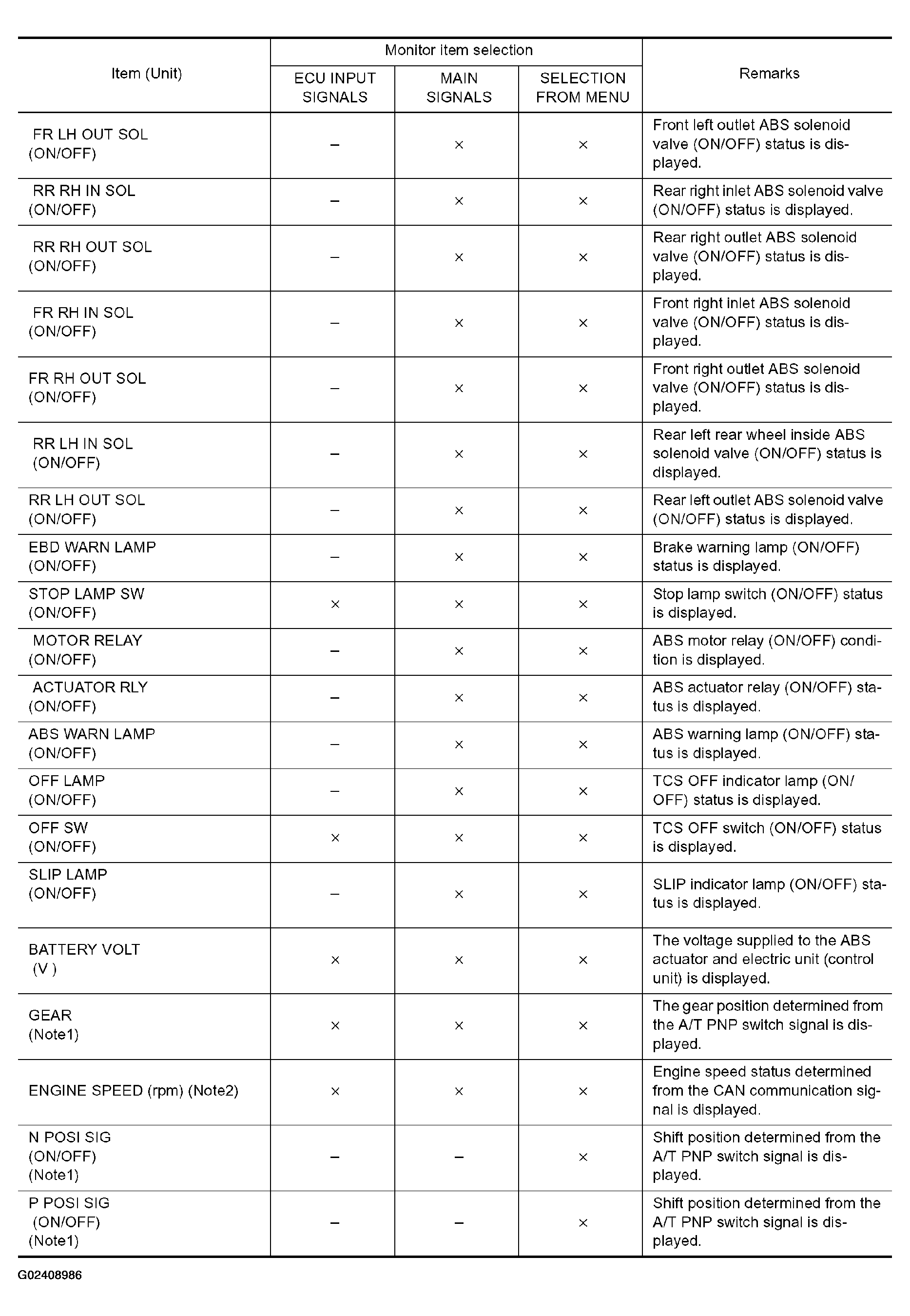

Fig 3: Display Item List - Monitored Items, TCS/ABS (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
