Display Item List

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

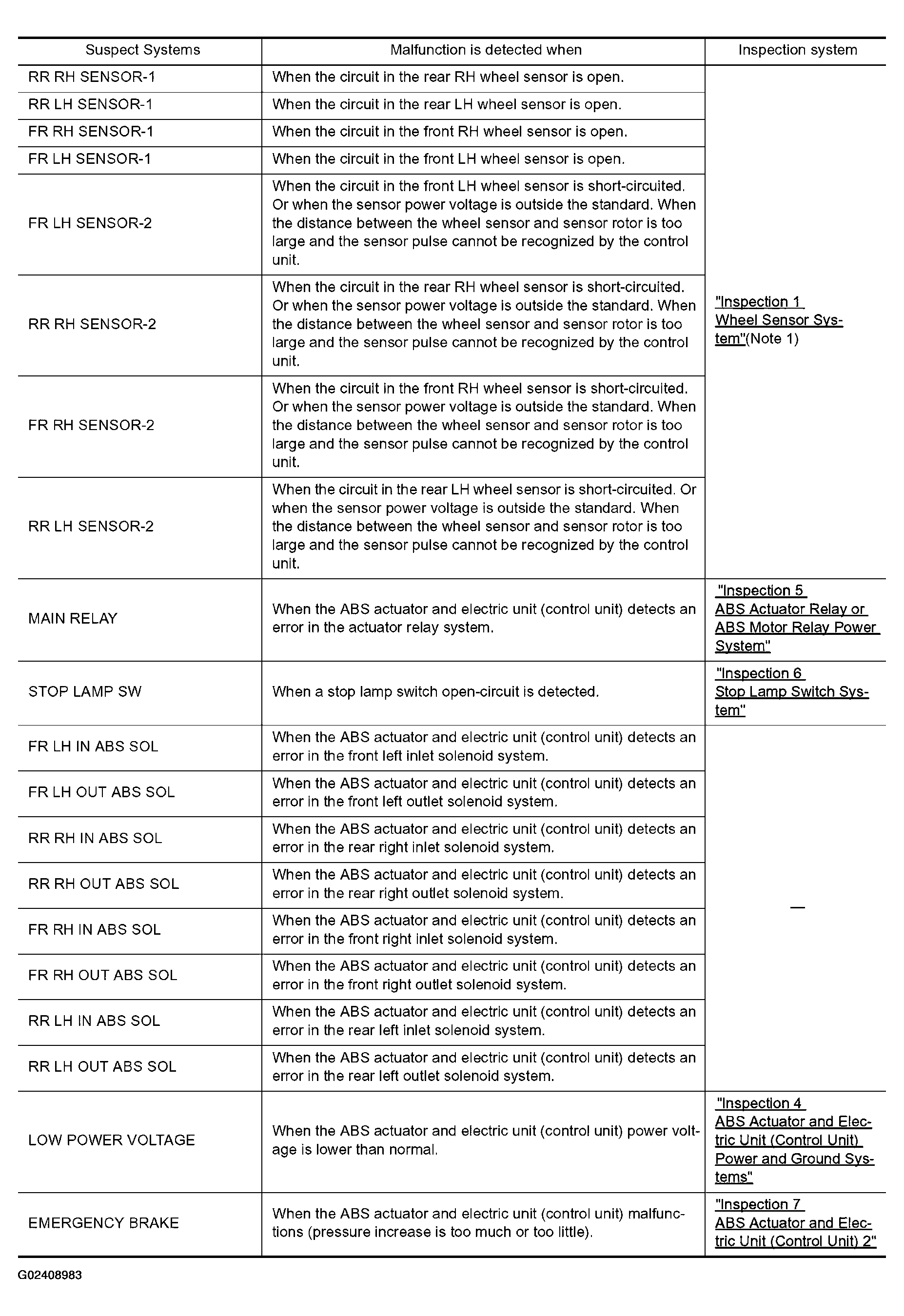

Fig 1: Display Item List - Malfunction Detection Condition, TCS/ABS (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

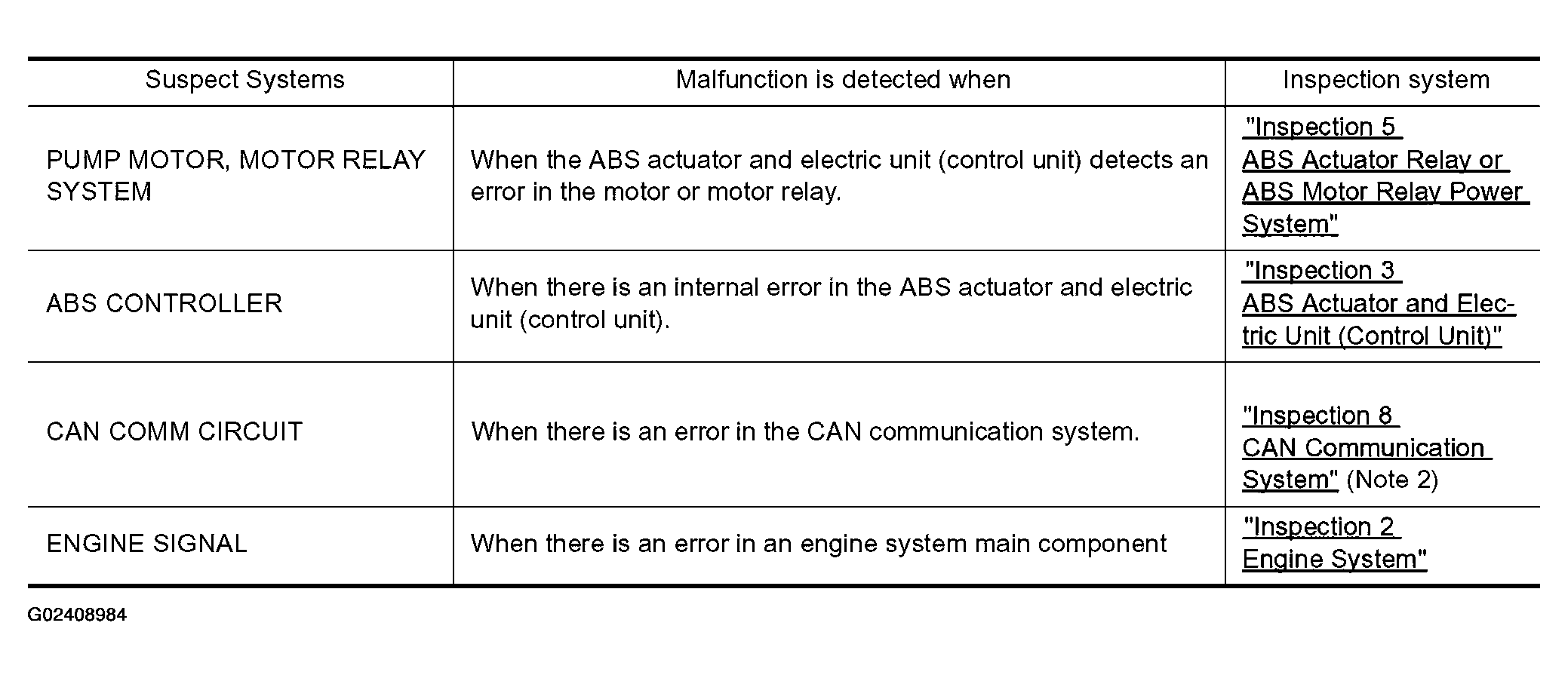

Fig 2: Display Item List - Malfunction Detection Condition, TCS/ABS (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Note 1: After completing repairs of the shorted sensor circuit, when ignition switch is turned ON, ABS warning lamp turns on. Check that ABS warning lamp turns off while driving the vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute according to self-diagnosis procedure. In addition, if wheel sensor 2 is displayed for the wheels, check the wheel sensor circuit and also check the control unit power voltage.

Note 2: When errors are detected in several systems, including the CAN communication system [U1000], troubleshoot the CAN communication system.
