TCS Off Switch
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

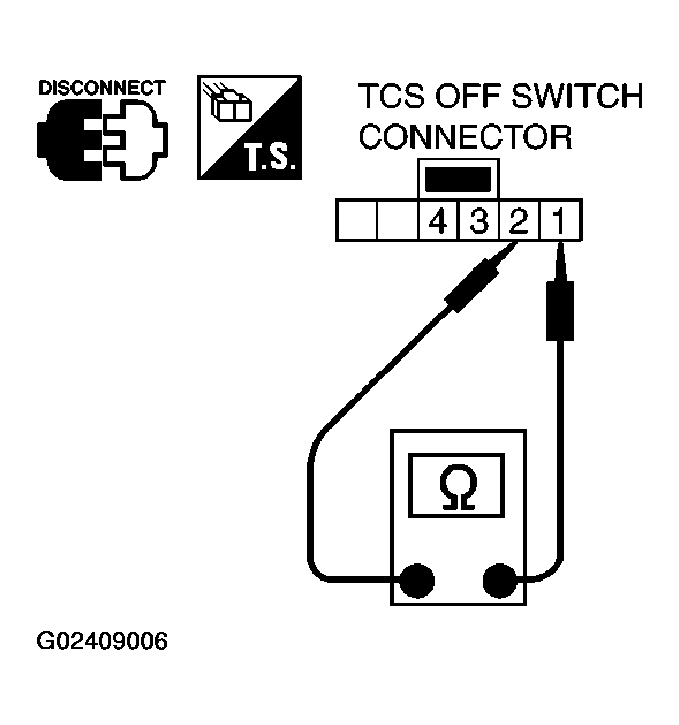

- Turn ignition switch OFF, disconnect the TCS OFF switch connector M9, and check the continuity between terminals 1 and 2.
- 1-2 : Continuity should exist when pushing the switch.
: Continuity should not exist when releasing the switch.
- 1-2 : Continuity should exist when pushing the switch.
