Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the CONSULT-II and CONVERTER to the data link connector and start the engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)" on the display screen.
  3. Touch "ABS".

    If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

  4. Touch "ACTIVE TEST".

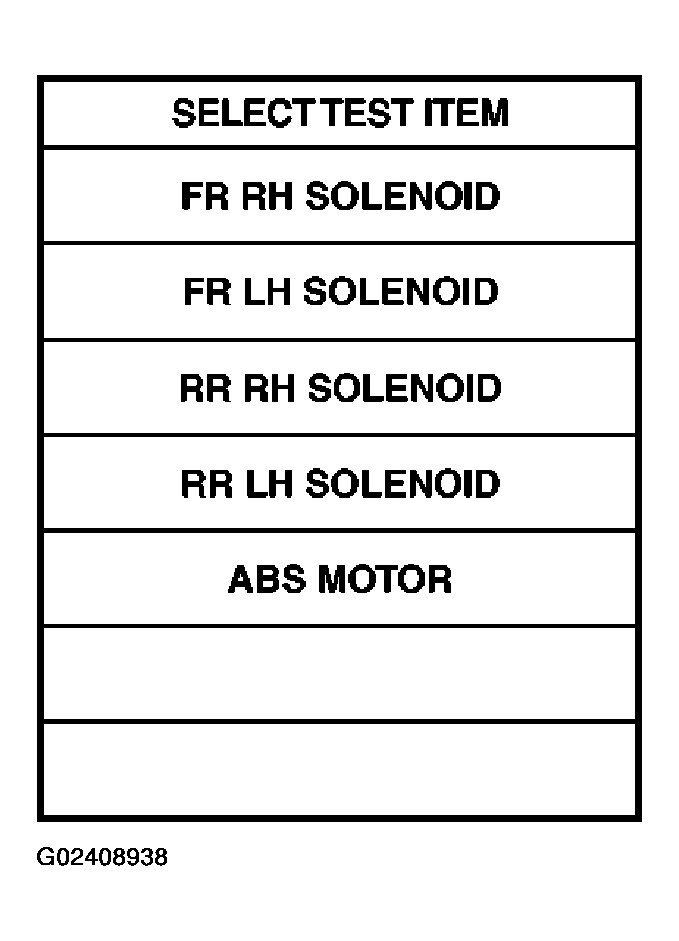

    Fig 1: CONSULT-II Display - SELECT TEST ITEM
    G02408938Courtesy of NISSAN MOTOR CO., U.S.A.
  5. The test item selection screen is displayed.
  6. Touch necessary test item.
  7. With the "MAIN ITEM" display shown in reverse, touch "START".
  8. The "Active Test" screen will be displayed, so conduct the following test.
