Solenoid valve

CAUTION: The example shown is for the front right wheel. The procedure for the other wheels is the same as given below.

For ABS solenoid valve, touch "UP", "KEEP", and "DOWN". Then use screen monitor to check that solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to "Solenoid Valve Operation Chart".

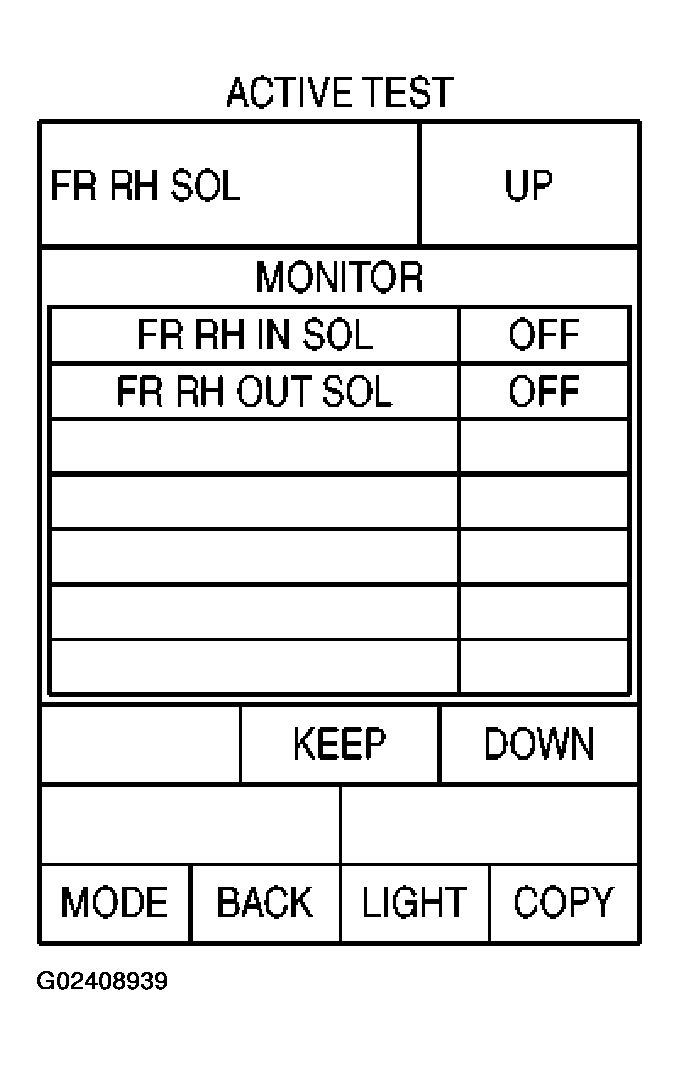

Fig 1: CONSULT-II Display - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.

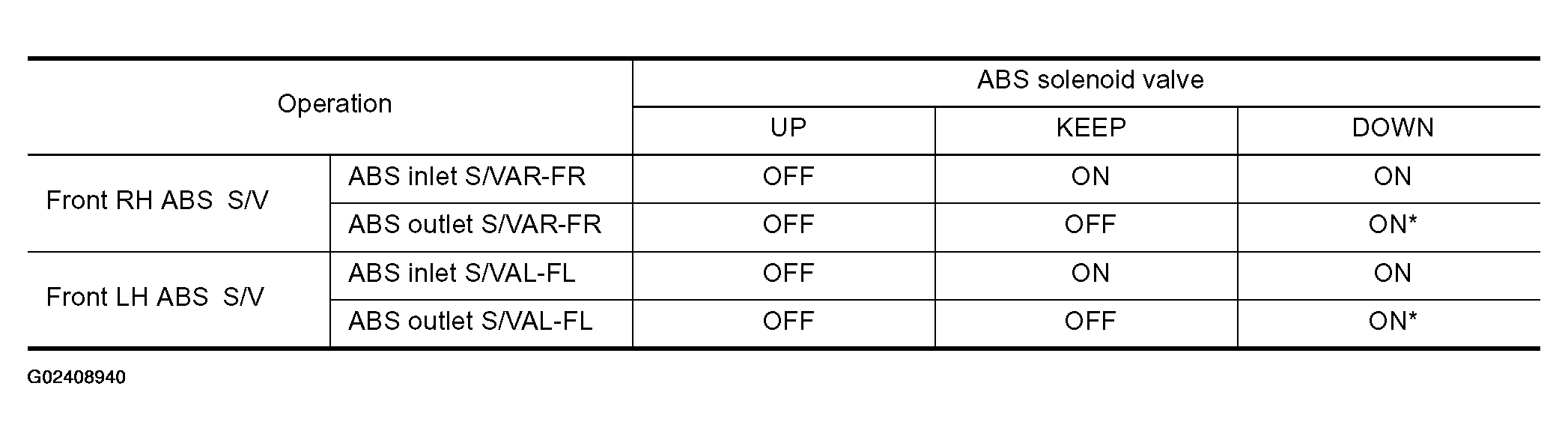

Fig 2: ABS Solenoid Valve Operation Chart - ABS (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

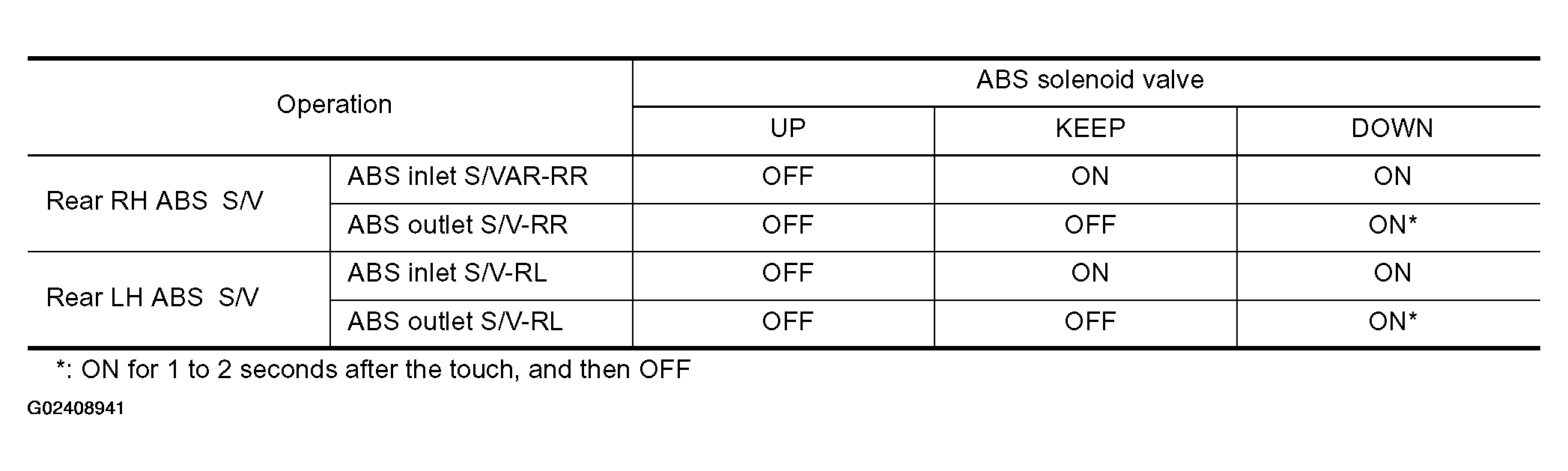

Fig 3: ABS Solenoid Valve Operation Chart - ABS (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

When the active test is conducted while depressing the pedal, the pedal depression amount will change, but this is normal.
Approximately 10 seconds after the operation is begun, "TEST STOP" will be displayed.
To conduct retest after "TEST STOP" is displayed touch "BACK"
