Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

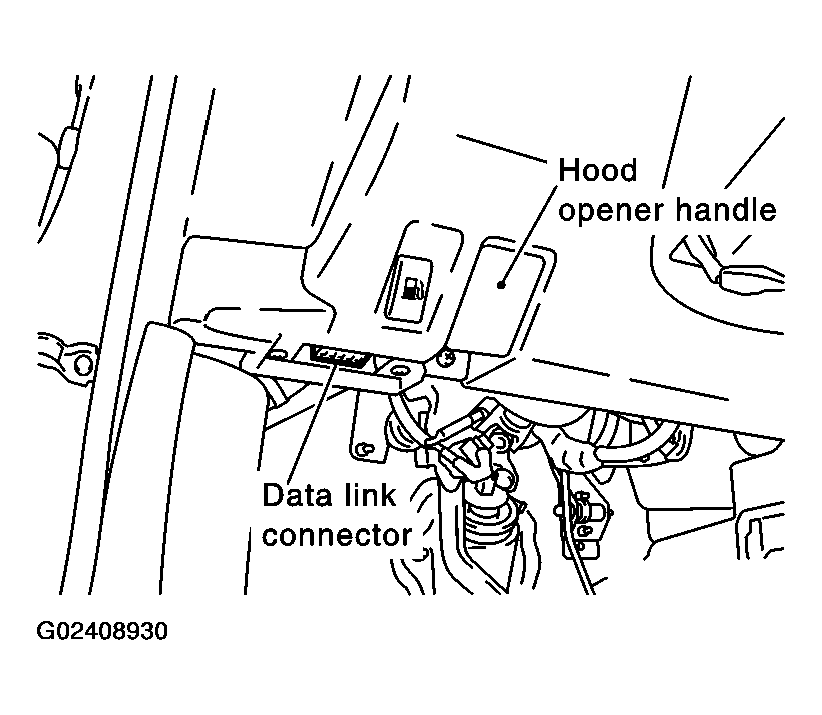

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

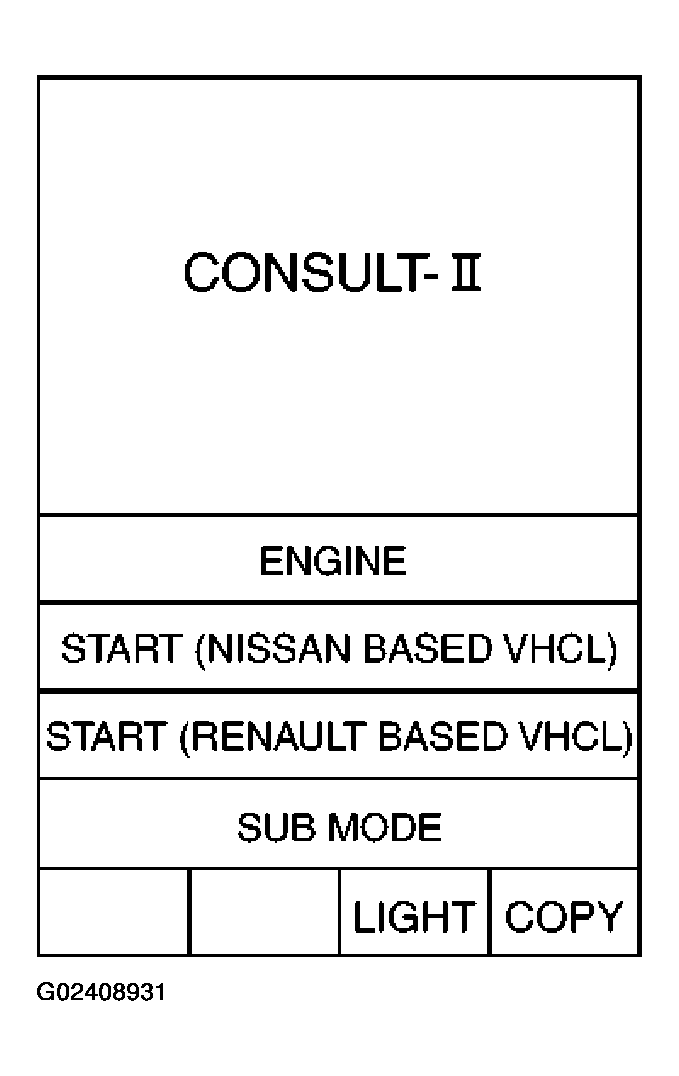

Fig 2: CONSULT II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS" in the "SELECT SYSTEM" screen.
If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

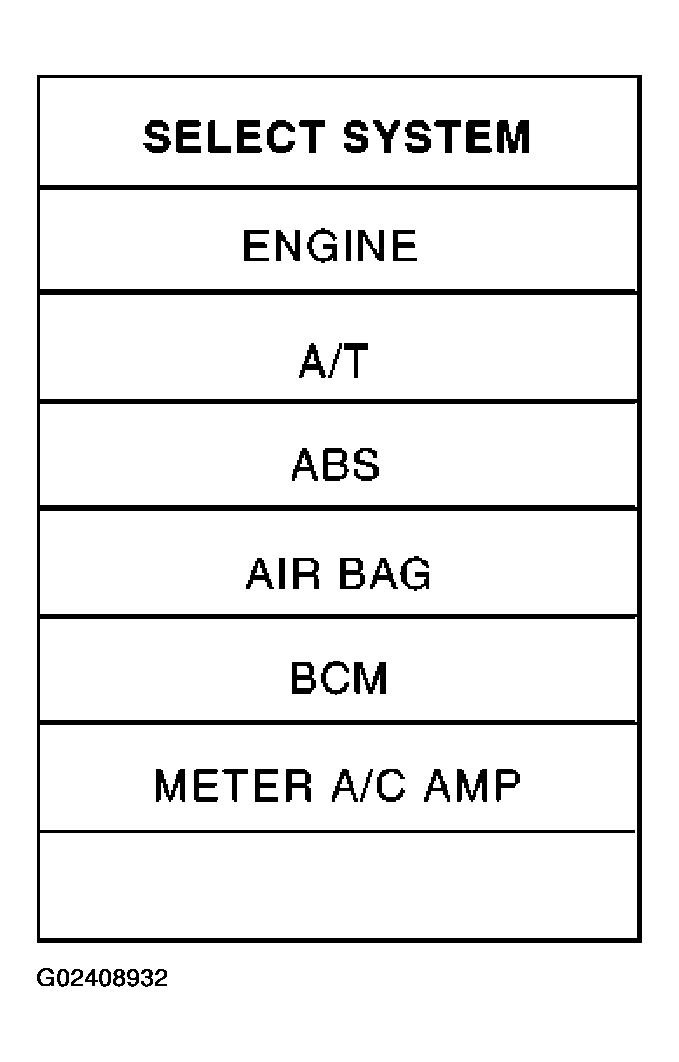

Fig 3: CONSULT II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the required diagnostic location from the "SELECT SYSTEM" screen.
For further information, see CONSULT-II BASIC OPERATION PROCEDURE .

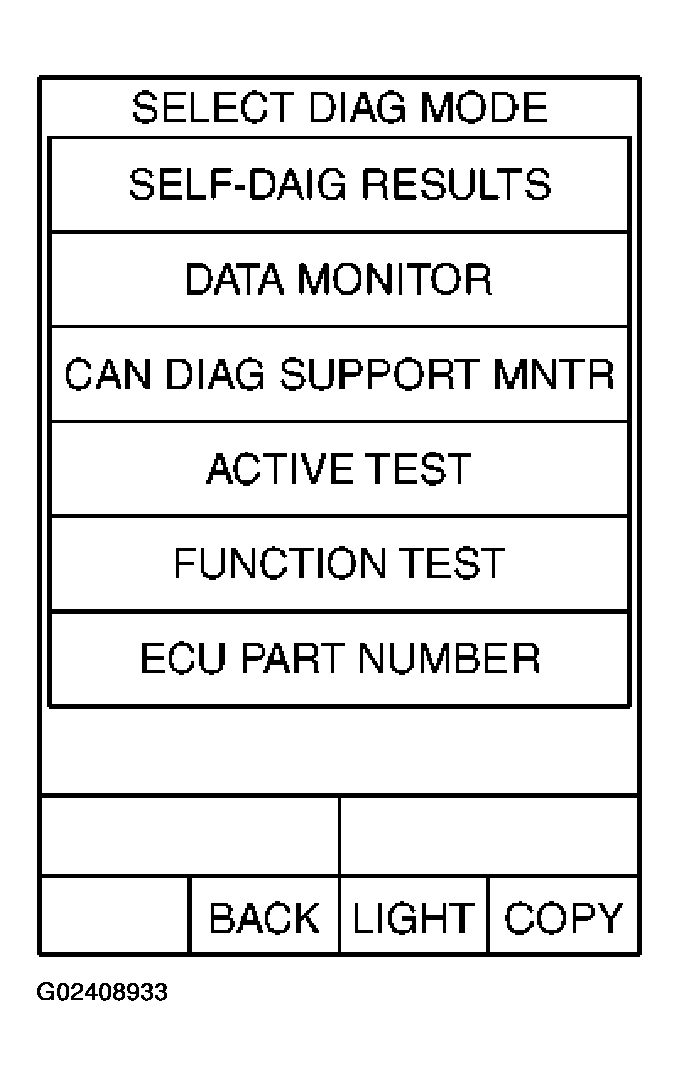

Fig 4: CONSULT II Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
