Solenoid valve

CAUTION: The example shown is for the front right wheel. The procedure for the other wheels is the same as given below.

When conducting an active test of the ABS function, select the main item for each test item. In addition, when conducting an active test of the VDC/TCS function, select the item menu for each test item.
For the ABS solenoid valve, touch "UP", "KEEP", "DOWN" on the display screen. For the ABS solenoid valve (ACT), touch "UP", "ACT UP", "ACT KEEP" and confirm that the solenoid valves (in, out, USV, HSV) operate as shown in Fig 2 and Fig 3.

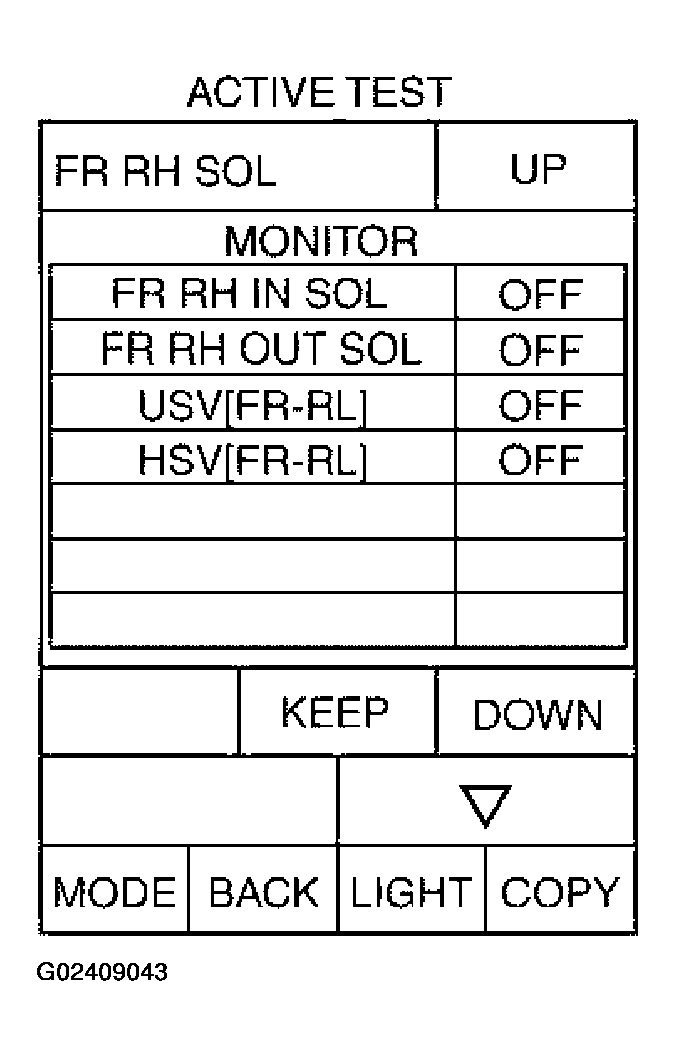

Fig 1: CONSULT-II Display - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.

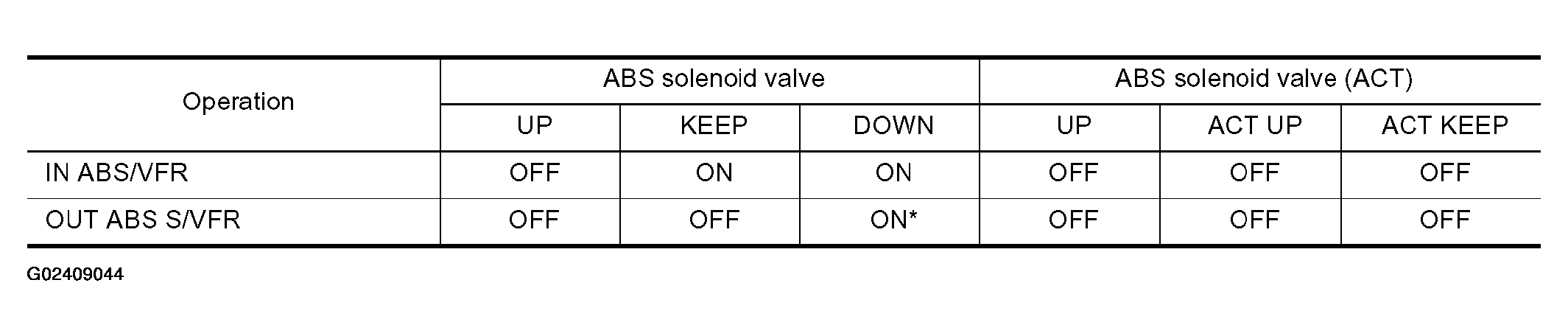

Fig 2: Solenoid Valve Operation Chart - VDC/TCS/ABS (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

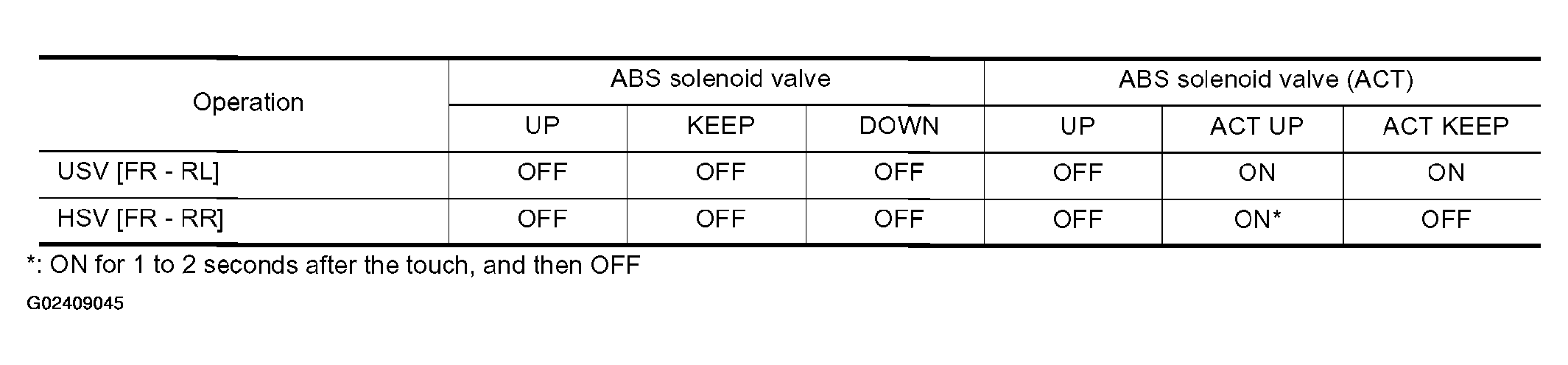

Fig 3: Solenoid Valve Operation Chart - VDC/TCS/ABS (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

When the active test is conducted while depressing the pedal, the pedal depression amount will change, but this is normal.
Approximately 10 seconds after the operation is begun, "TEST STOP" will be displayed.
To conduct a retest after "TEST STOP" is displayed, touch "BACK" and conduct the test from the step 6.
