Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver-side lower instrument panel. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove VDC/TCS/ABS control unit.

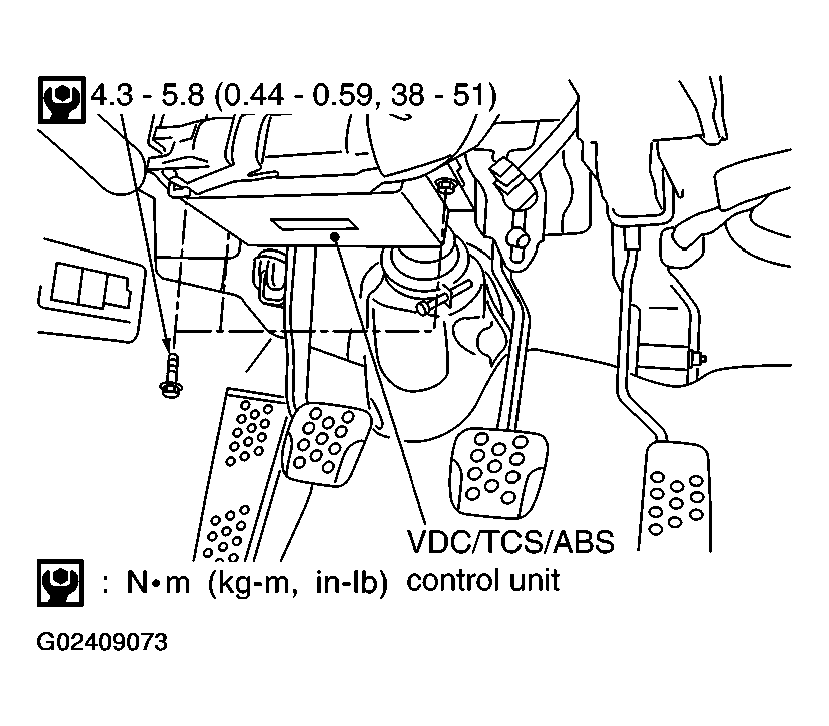

    Fig 1: Locating VDC/TCS/ABS Control Unit With Torque Specifications
    G02409073Courtesy of NISSAN MOTOR CO., U.S.A.
