Checking Fluid Level

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Stop engine before performing a fluid level check.
Ensure that fluid level is between the MAX range and MIN level.
Because fluid level differs within the HOT range and the COLD range, check it carefully.
- HOT : Fluid temperatures from 50 to 80 °C (122 to 176°F)
- COLD : Fluid temperatures from 0 to 30°C (32 to 86°F)
CAUTION:
- Do not overfill the MAX level.
- Do not reuse any used power steering fluid.
- Recommended fluid is Genuine NISSAN PSF or equivalent.

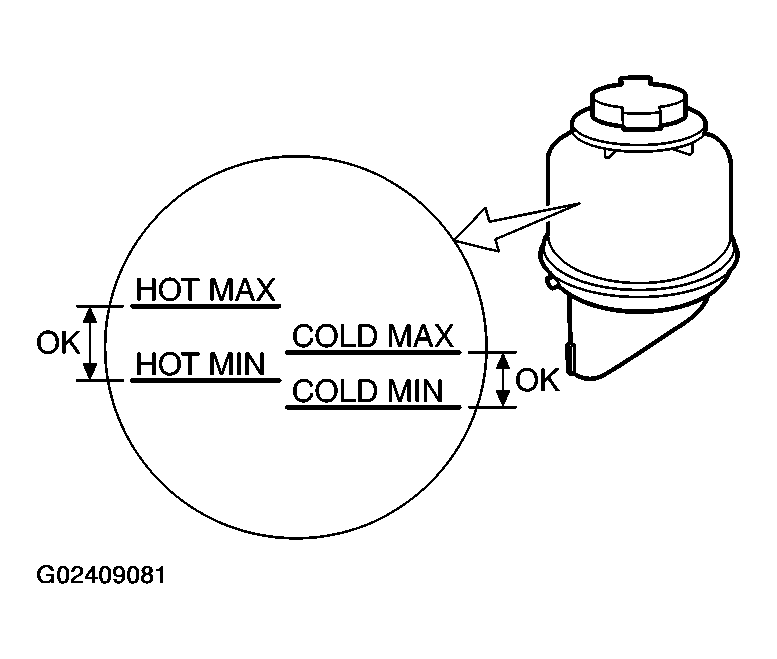

Fig 1: Checking Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.
