Power Steering Gear: Component

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

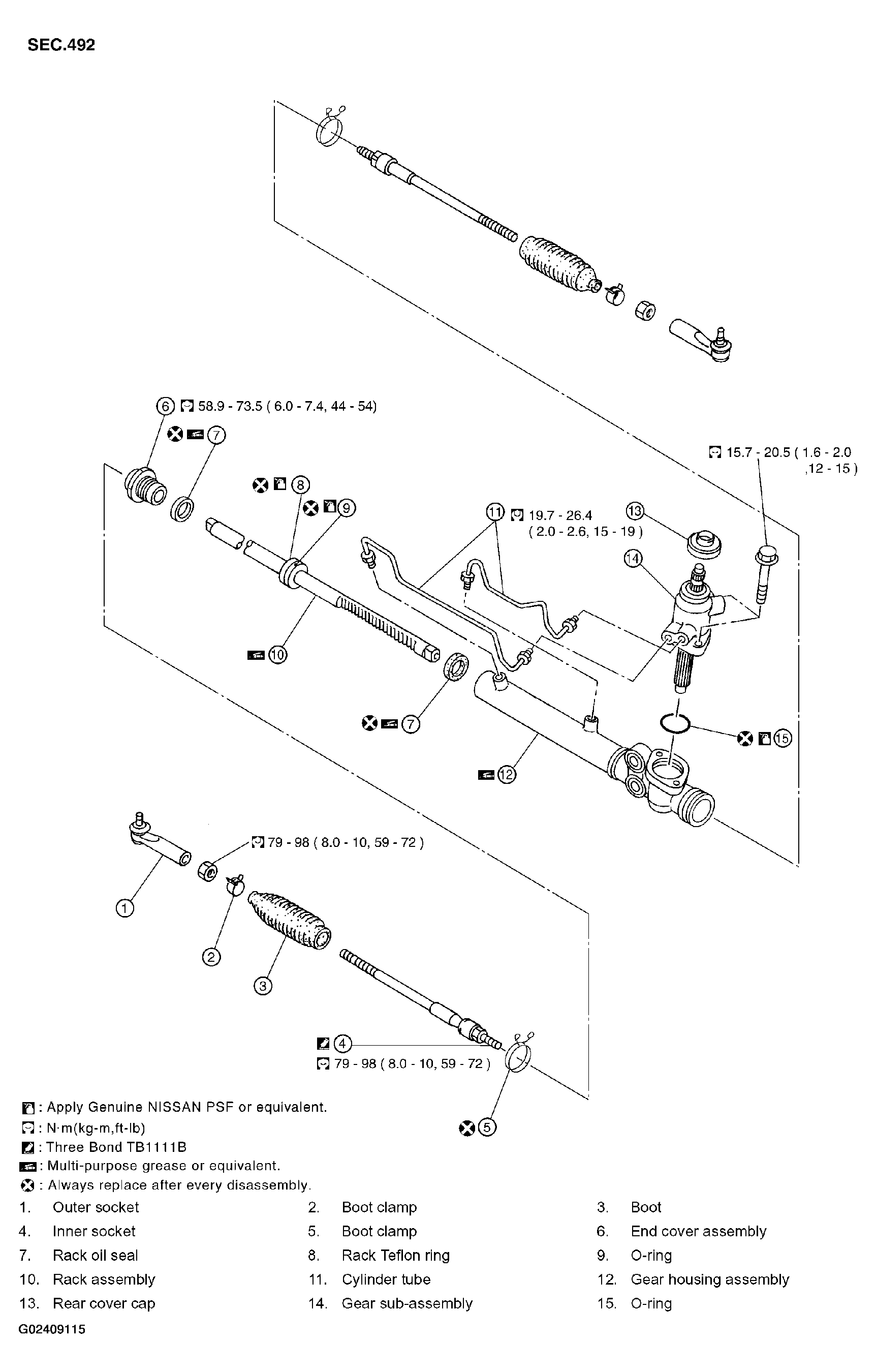

Fig 1: Exploded View Of Power Steering Gear Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.
Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.

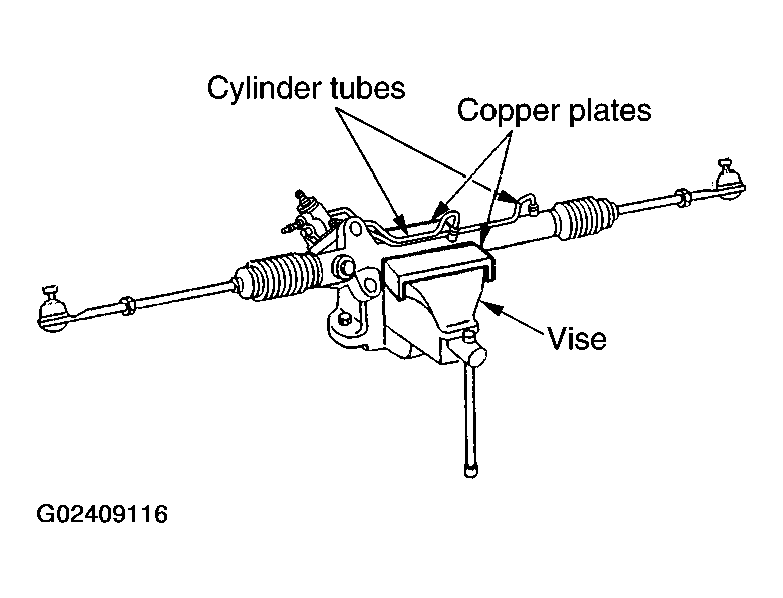

Fig 2: Securing Steering Gear Assembly With Vise
Courtesy of NISSAN MOTOR CO., U.S.A.
