Disassembly and Assembly: Assembly
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Install tilt device to jacket tube. Refer to
"DISASSEMBLY AND ASSEMBLY ".NOTE:

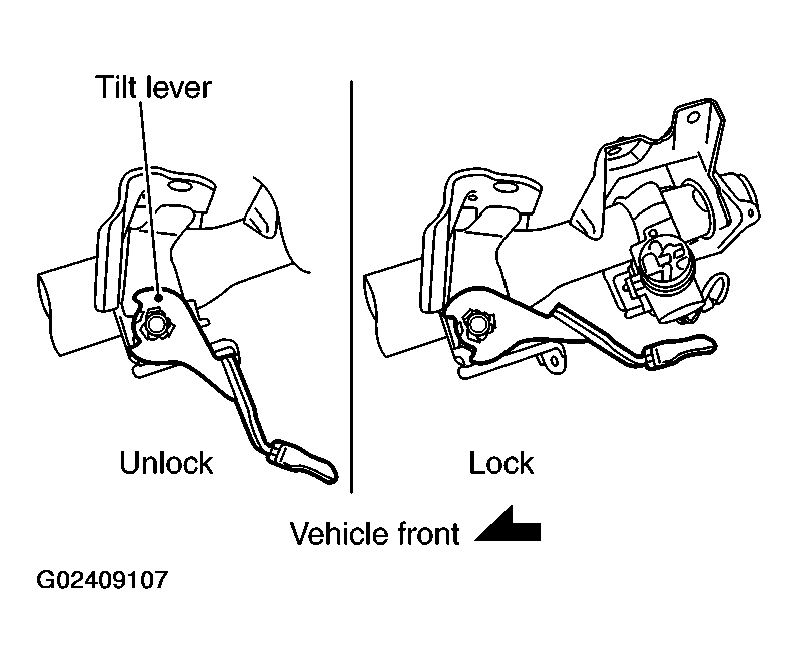

- Turn tilt lever to unlock side while at work to make it easier.
- That can avoid column shaft's sudden descent when tilt lever is operated on vehicle.
- When tilt lever is in the locked position (operation range is about 40°), tighten lock nut at the specified torque to make tilt lever locked.
- Tightening torque: 13.5 - 18.6 N.m (1.4 - 1.8 kg-m, 10 - 13 ft-lb)
- Apply grease to the part shown in the figure of component. Refer to "DISASSEMBLY AND ASSEMBLY ".

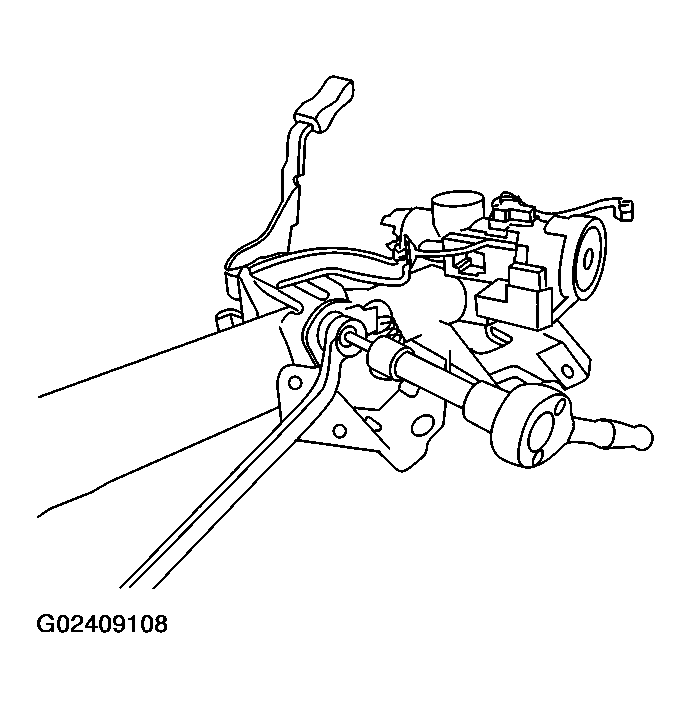

- Install steering column shaft to jacket tube, tighten steering column shaft lock nut at the specified torque.
- Tightening torque : 25 - 34 N.m (2.6 - 3.4 kg-m, 19 - 25 ft-lb)
