Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column shaft lock nut, then remove steering column shaft from front side of jacket tube.
  2. Remove tilt device from jacket tube.
  3. Remove lock nut and adjusting stopper according to the following procedure.
  1. Turn tilt lever to the unlock side.
  2. Remove spring from column mounting bracket.

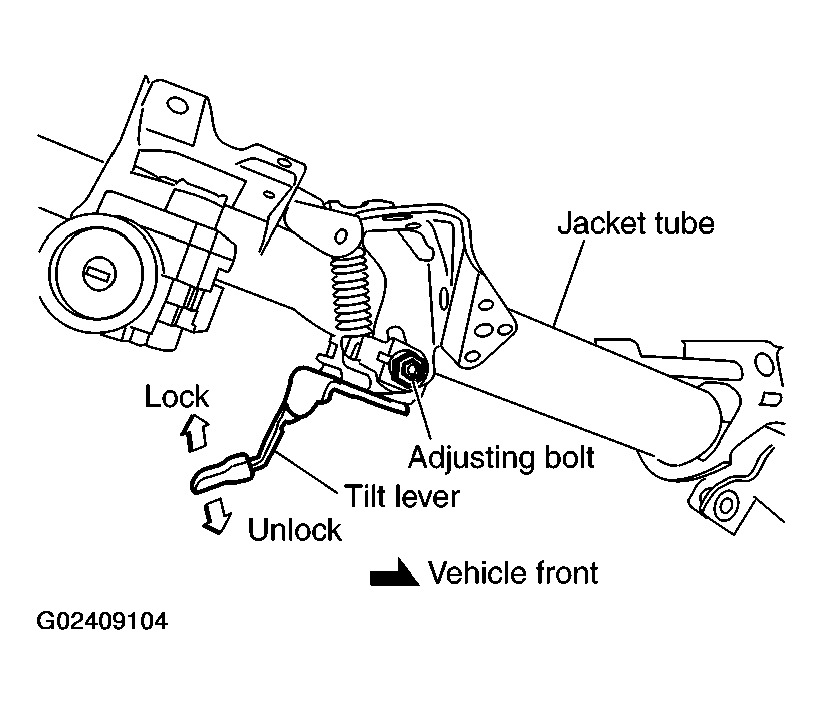

    Fig 1: Removing Tilt Device From Jacket Tube
    G02409104Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Lock adjusting bolt, then remove lock nut.

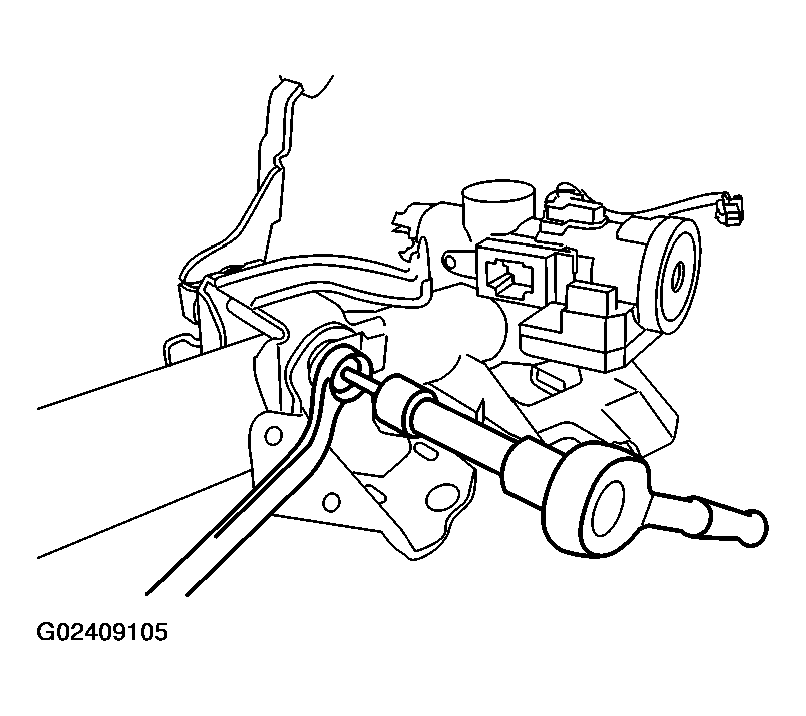

    Fig 2: Locking Adjusting Bolt
    G02409105Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove adjusting bolt, adjusting stopper, column mounting bracket, tilt lever stopper and tilt lever from jacket tube.

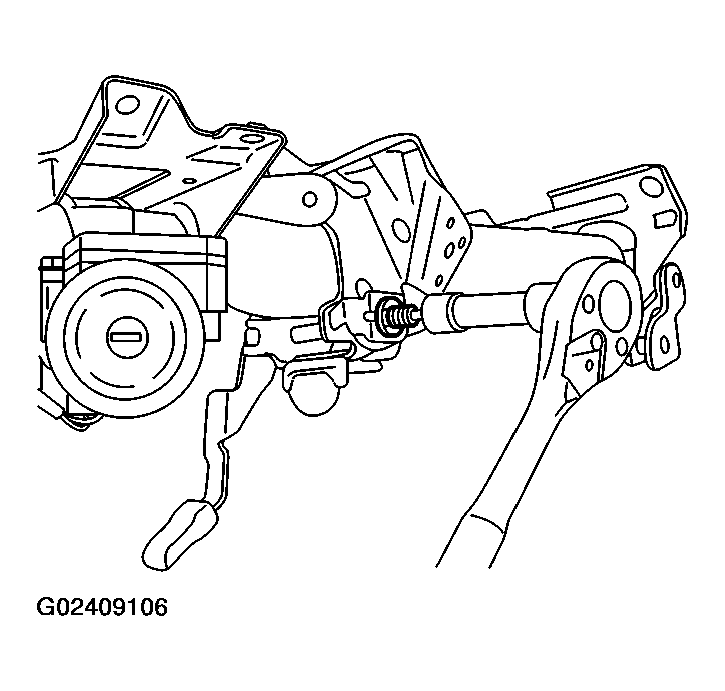

    Fig 3: Removing Lock Bolt
    G02409106Courtesy of NISSAN MOTOR CO., U.S.A.
