Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

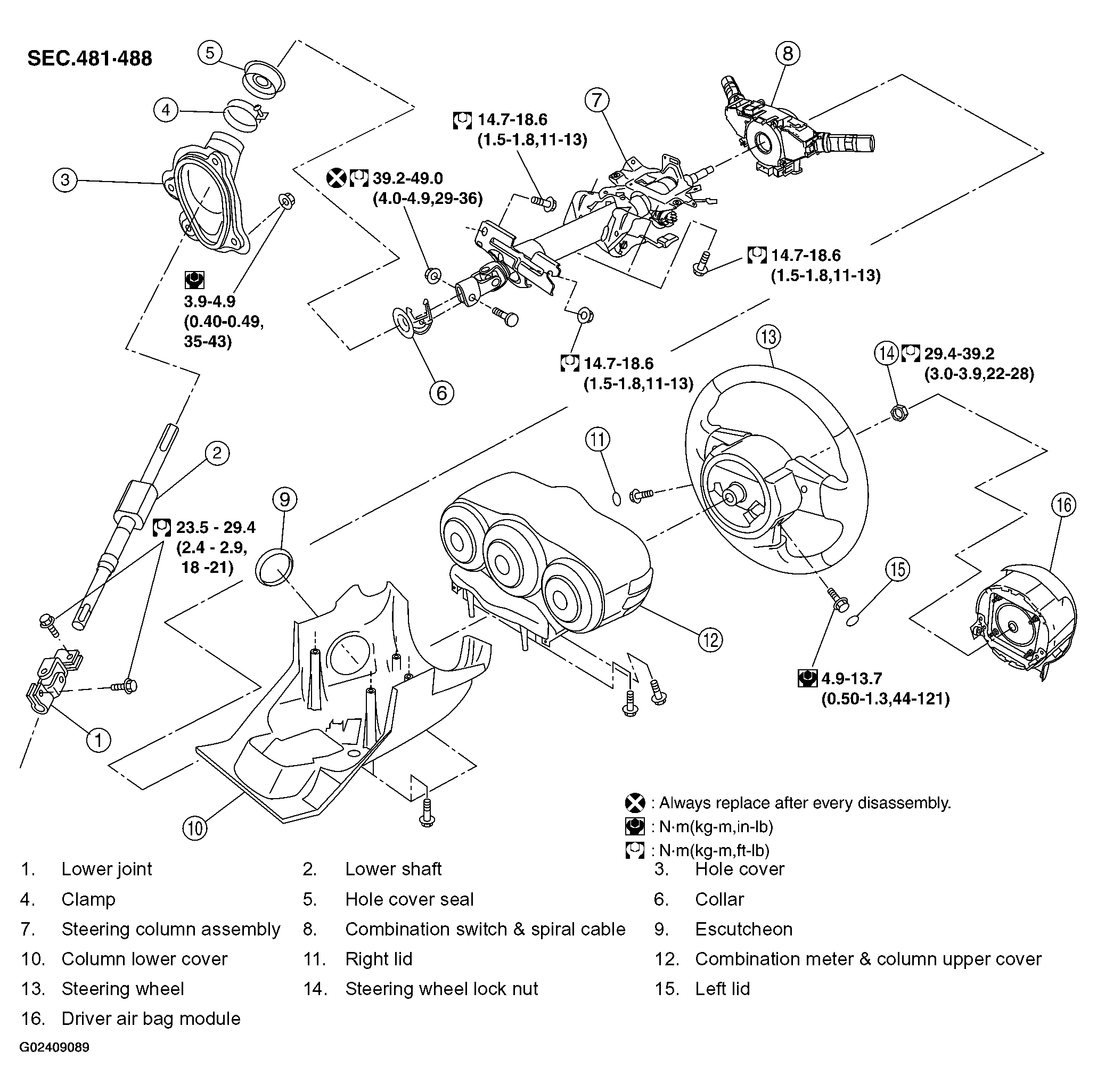

Fig 1: Exploded View Of Steering Column Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Care must be taken not to give axial impact to steering column assembly during removal and installation.
Care must be taken not to move steering gear during removal of steering column assembly.
