Fuel Level Sensor Unit and Fuel Pump (Main)

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Check the resistance between terminals 2 and 5.

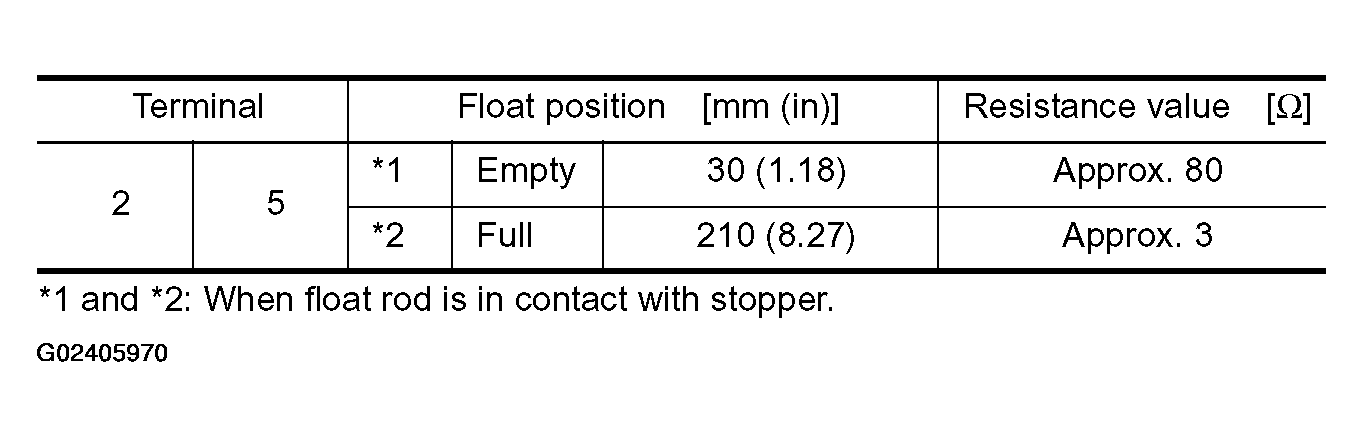

Fig 1: Fuel Level Sensor Unit & Fuel Pump (Main) Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

*1 and *2: When float rod is in contact with stopper.

If the results of check are NG, check the fuel level sensor unit and fuel pump (main) harness. Refer to "FUEL LEVEL SENSOR UNIT AND PUMP (MAIN) HARNESS ".

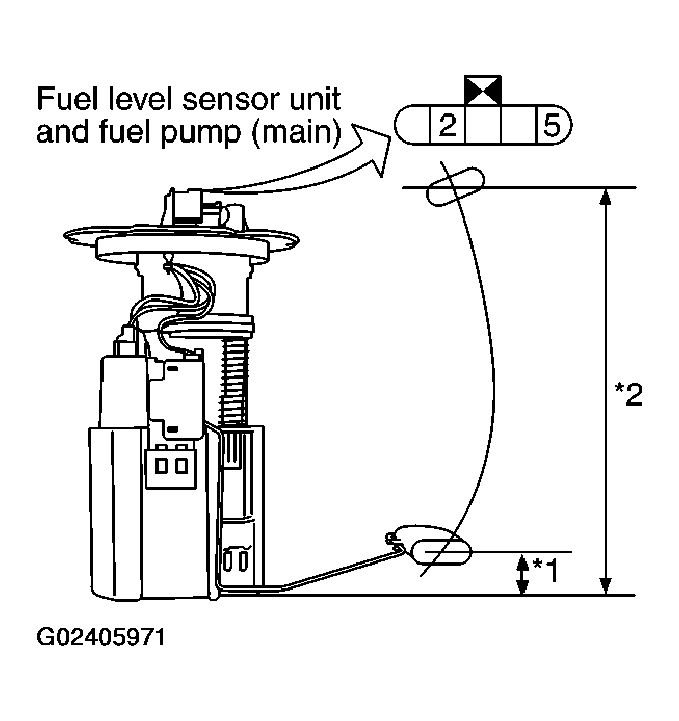

Fig 2: Checking Fuel Level Sensor Unit & Fuel Pump (Main)
Courtesy of NISSAN MOTOR CO., U.S.A.
