Fuel Level Sensor Unit and Pump (Main) Harness

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Check the continuity following terminals.

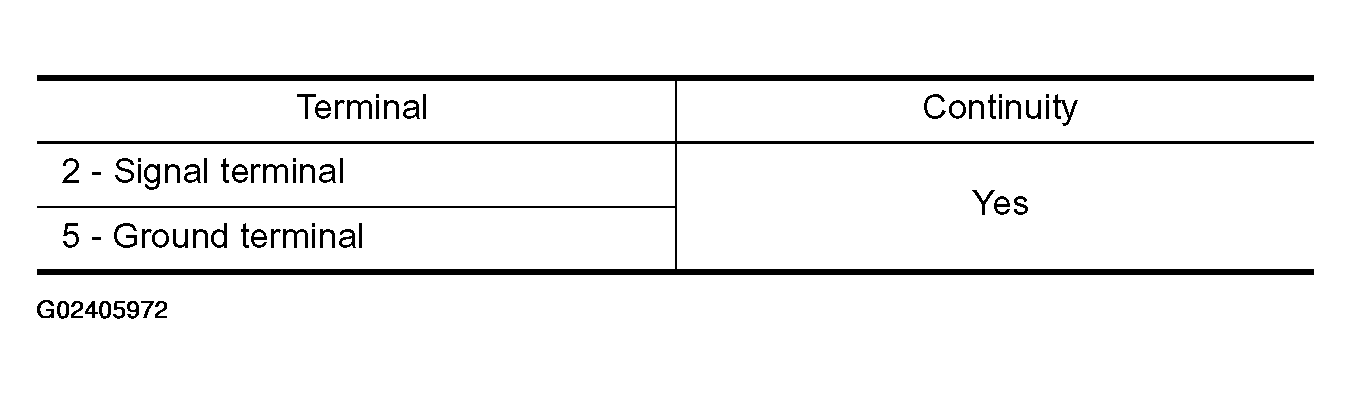

Fig 1: Fuel Level Sensor Unit & Pump (Main) Harness Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

If the results of check are NG, replace fuel pump assembly. If the results of check are OK, replace fuel level sensor unit.

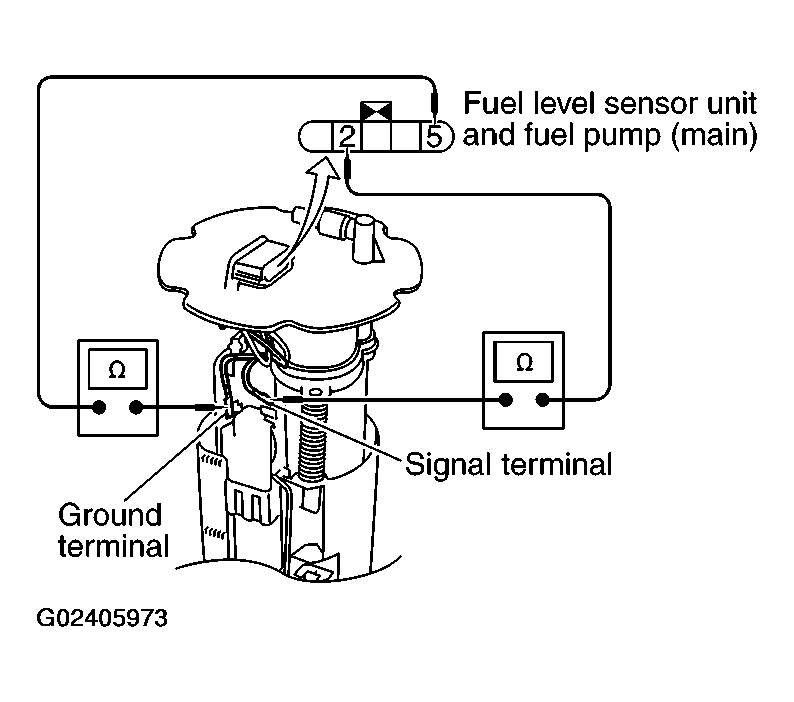

Fig 2: Checking Fuel Level Sensor Unit & Pump (Main) Harness
Courtesy of NISSAN MOTOR CO., U.S.A.
