With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

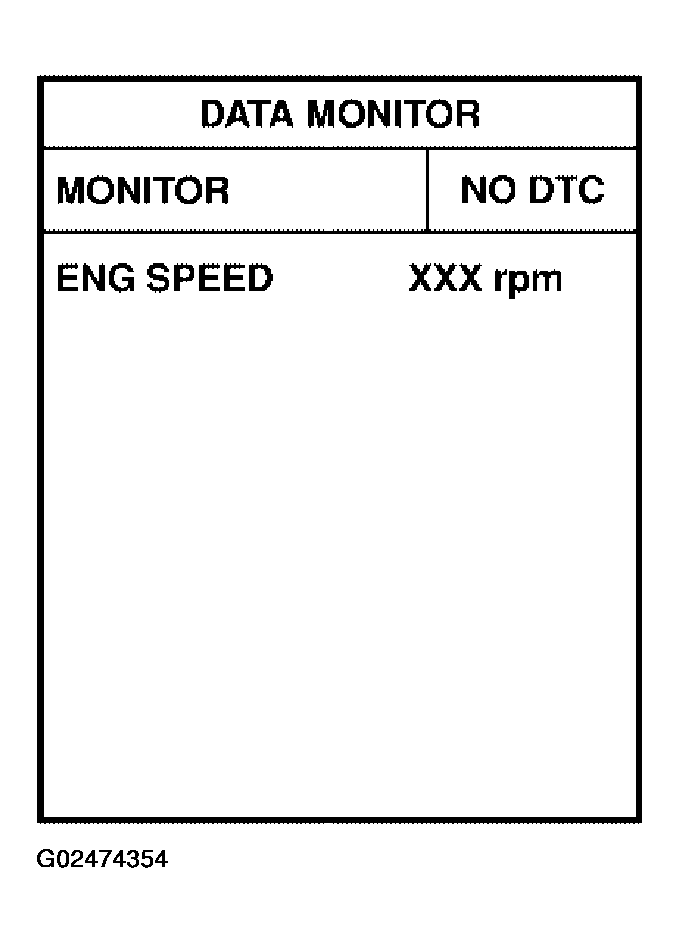

    Fig 1: CONSULT-II Data Monitor Display
    G02474354Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch OFF, wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. If 1 st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
